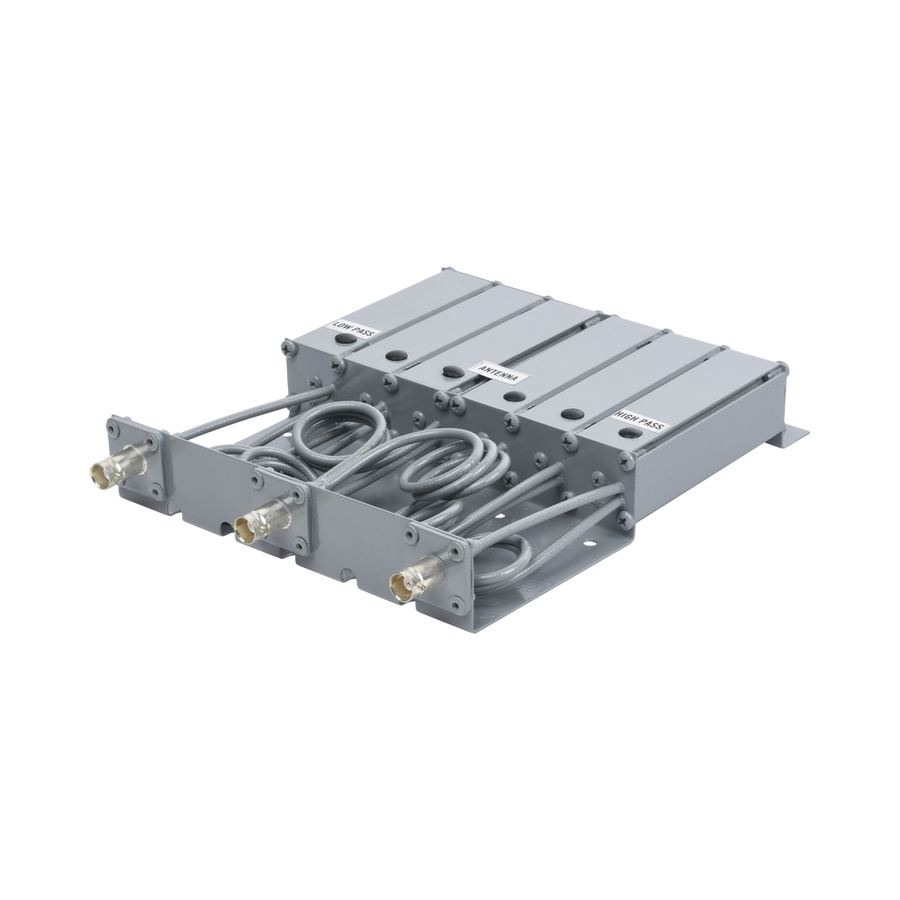

Epcom SYS-1533-3 6-Cavity VHF Duplexer 160-174 MHz 50W 80dB Isolation
- EhubAmerica SKU
- SYS-1533-3
- 160–174 MHz
$290.34
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Resonators plated copper tube (UHF) and tinned copper Helical Resonators (VHF)
PRODUCT TYPE
RF Accessories
KEY FEATURES
- 6 Cavity Design for Superior Frequency Isolation and Performance
- 50 Watt Maximum Power Handling for Mobile and Repeater Applications
- 80 dB TX-RX Isolation Prevents Signal Interference and Crosstalk
- Silver-Plated Copper Resonators for Enhanced RF Performance
- Teflon Insulation for VHF/UHF Applications Minimizes Interference
- Conformable Cable Interconnections Reduce Insertion Loss to 1.2 dB
TECHNICAL SPECIFICATIONS
- Brand: EPCOM
- Model: SYS-1533-3
- Product Type: Radio Parts
- Separation of the frequency of 5 to 8 MHz
- Loss of max. insertion of 1.2 dB
- Isolation between Tx and Rx: 80 dB
- Wide use of Full mobile radios and repeater (50 W peak)
- Min. frequency shift by temperature
- Resonators plated copper tube (UHF) and tinned copper Helical Resonators (VHF)
- Teflon insulation for VHF and UHF
- Interconnection with conformable cables reduces insertion loss
- Plating with Aluminium cavities extruded 6063-T5 tempered
- Standard BNC female connectors with the option to N female adding N
- Dimensions: 6.25 x 1.25 x 8.50" (159 x 31.8 x 216 mm)
- Any cable, any length, any connector, any amount.
- Specialized equipment and great staff experience allow us to manufacture your "bridges" of coaxial cable professionally, with a great presentation, quality, and reliability at a reduced price.
- We only use cables and connectors of the highest quality.
- 6 Cavity Design for Superior Frequency Isolation and Performance
- 50 Watt Maximum Power Handling for Mobile and Repeater Applications
- 80 dB TX-RX Isolation Prevents Signal Interference and Crosstalk
- Silver-Plated Copper Resonators for Enhanced RF Performance
- Teflon Insulation for VHF/UHF Applications Minimizes Interference
- Conformable Cable Interconnections Reduce Insertion Loss to 1.2 dB
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Product Type | 6-Cavity VHF Duplexer |
| Frequency Range | 160–174 MHz |
| Model | SYS-1533-3 |
| Wireless / RF | |
| Frequency Separation | 5–8 MHz |
| Maximum Insertion Loss | 1.2 dB |
| TX-RX Isolation | 80 dB |
| Maximum Power Handling | 50 W peak |
| Resonator Type | Copper tube (UHF) and tinned copper helical (VHF) |
| Insulation Material | Teflon |
| Physical | |
| Cavity Configuration | 6 cavities |
| Housing Material | Aluminum alloy 6063-T5 tempered (extruded) |
| Connectors | BNC female (standard); N female (optional) |
| Dimensions | 6.25 × 1.25 × 8.50 inches (159 × 31.8 × 216 mm) |
