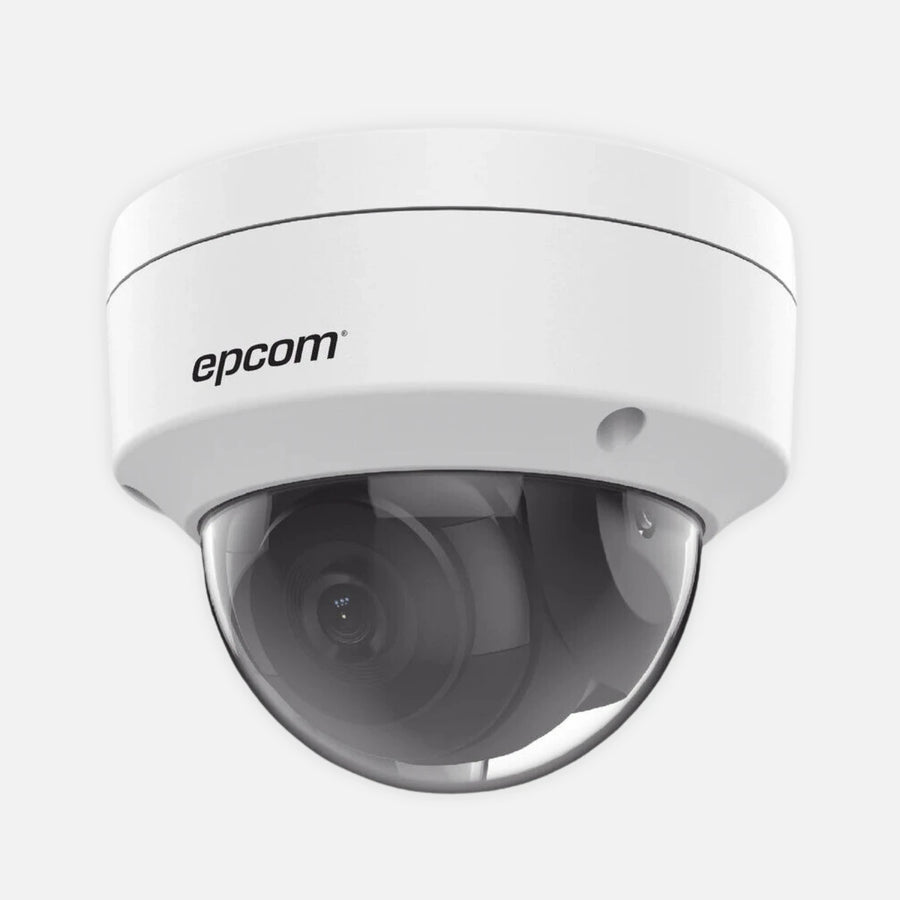

Epcom XD28S 8MP 4K IP Dome Camera 2.8mm 30m IR IP67

Epcom · IP Camera

Epcom XD28S 8MP 4K Dome IP Camera, 2.8 mm Lens, 30 m Smart IR, Built-in Mic, PoE, IP67 IK10

Part number / SKU
XD28S
  • 8 MP, 3840 x 2160
  • 2.8 mm fixed
  • H.265+, H.265, H.264+, H.264
  • Color 0.005 lux at F1.6, AGC on
  • IP67
$111.62

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty
Request a quote

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Epcom XD28S is an 8 MP (3840 x 2160) 4K fixed dome IP camera with a 2.8 mm lens and a 103° view. Color imaging reaches 0.005 lux at F1.6, and Smart IR covers up to 30 m at night.

It offers 120 dB WDR, ROI, 3D DNR, BLC and HLC, with face detection, line crossing, area intrusion and Motion Detection 2.0 for human and vehicle detection. An integrated microphone records audio, and a microSD slot holds up to 256 GB with ANR. Video is H.265+, H.265, H.264+ or H.264. Power is 12 V DC or PoE 802.3af at 7 W, and the dome is rated IP67 and IK10.

  • Best for: areas where 4K detail helps identify faces and plates at a distance from a fixed view.
  • System fit: ONVIF Profile S/G, ISAPI and SDK recorders.
  • Important to know: there are no alarm inputs or outputs and no external audio connections; audio comes from the built-in microphone.

Why teams choose it

Built for secure sites

  • 4K detail

    3840 x 2160 resolution.

  • Low light

    color down to 0.005 lux at F1.6.

  • Analytics

    line crossing, area intrusion, human and vehicle detection.

  • Vandal resistant

    IK10 and IP67 rated.

Specifications

Technical specifications

General
Brand Epcom
Model XD28S
Device Type Fixed dome IP camera
Form Factor Dome
Video
Resolution 8 MP, 3840 x 2160
Lens 2.8 mm fixed
Field of View 103°
Minimum Illumination Color 0.005 lux at F1.6, AGC on
Day/Night ICR filter
IR Range Up to 30 m
IR Type Smart IR
Wide Dynamic Range 120 dB
Image Functions ROI, 3D DNR, BLC, HLC
Video Compression H.265+, H.265, H.264+, H.264
Audio
Microphone Integrated
Software and Management
Analytics Face detection, line crossing, area intrusion
Motion Detection Motion Detection 2.0, human and vehicle
Storage microSD up to 256 GB, ANR
Protocols ONVIF Profile S/G, ISAPI, SDK
Interfaces
Ethernet Ports 1x 10/100 RJ45, PoE
Alarm I/O None
Power
Power Method 12 VDC or PoE 802.3af
Max Power Consumption 7 W
Environmental
IP Rating IP67
Impact Rating IK10
Operating Temperature -30 to 60 °C (-22 to 140 °F)
Operating Humidity Up to 95%, non-condensing
