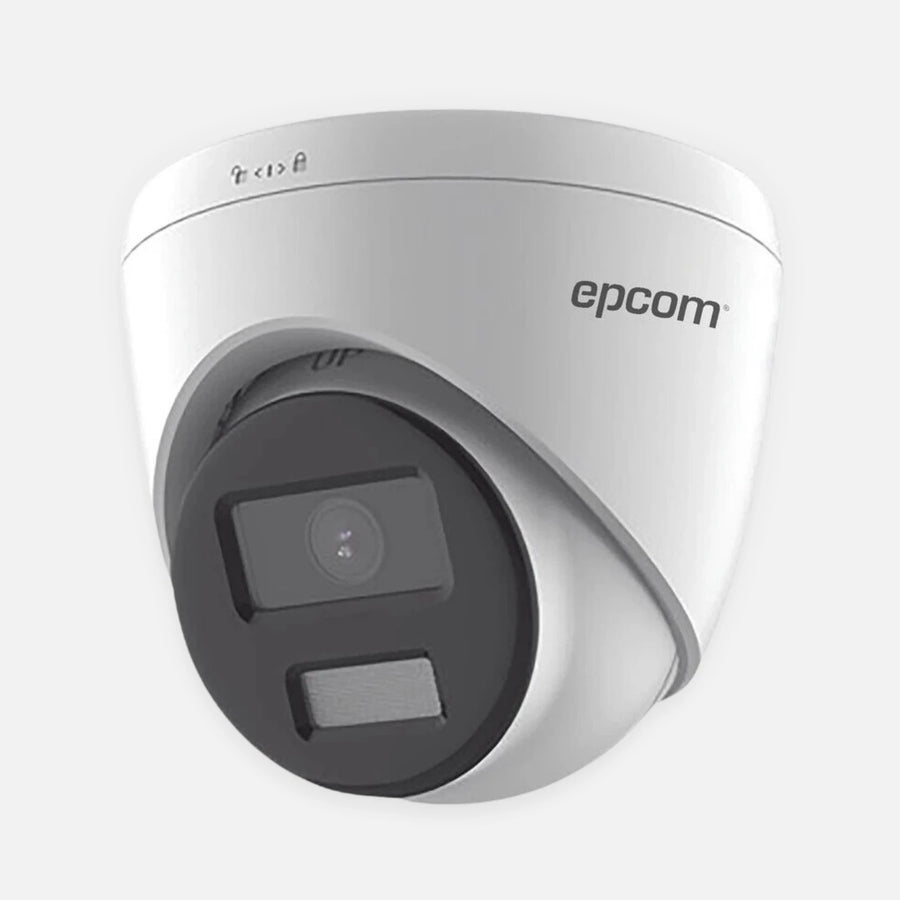

Epcom XE-14CSL 4MP IP Eyeball Camera 2.8mm Fixed Lens IP67

PRODUCT OVERVIEW

Epcom XE-14CSL 4MP COLOR PLUS IP eyeball camera featuring white light illumination, SENSEPlus Lite human and vehicle filtering, and IP67-rated outdoor protection.

PRODUCT TYPE

IP Camera

KEY FEATURES

• 4 Megapixel IP eyeball camera
• Maximum resolution up to 2560 × 1440
• 2.8 mm fixed lens with 96° viewing angle
• COLOR PLUS white light illumination technology
• White light range up to 30 meters
• H.265+ and H.264+ compression support
• SENSEPlus Lite human and vehicle filtering
• True Day/Night functionality with ICR filter
• 120 dB WDR support
• D3DNR digital noise reduction
• IP67 weather-resistant housing
• PoE 802.3af support
• Compatible with Hik-Connect platform
• ONVIF Profile S and ISAPI support

TECHNICAL SPECIFICATIONS

• Brand: Epcom
• Model: XE-14CSL
• Product Type: IP eyeball camera
• Maximum Resolution: 2560 × 1440
• Image Resolution: 4 Megapixel
• Lens Type: Fixed
• Lens Size: 2.8 mm
• Viewing Angle: 96°

• Minimum Illumination:

• Color: 0.01 Lux @ F2.0 (AGC ON)
• Black and White: 0 Lux with White Light

• Day/Night Mode: True Day/Night with ICR Filter
• White Light Distance: Up to 30 m

• Video Compression:

• H.265+
• H.265
• H.264+
• H.264

• Image Functions:

• WDR 120 dB
• D3DNR
• BLC
• HLC

• Intelligent Functions:

• SENSEPlus Lite
• Human Filtering
• Vehicle Filtering

• Simultaneous Users Supported: 6

• Alarm Input: None
• Alarm Output: None
• Audio Input: None
• Audio Output: None

• Network Interface:

• 1 × 10/100 Mbps Ethernet Port
• PoE 802.3af Support

• Supported Protocols:

• ONVIF Profile S
• ISAPI

• Power Supply:

• 12 VDC
• PoE 802.3af

• Maximum Power Consumption: 6.5 W
• Operating Temperature: -30°C to 60°C
• Maximum Humidity: 95%
• Protection Rating: IP67

• Dimensions:

• Ø109.9 mm × 103.6 mm
• Ø4.3 × 4.1 in

• Weight: 380 g (0.8 lb)

• Optional Accessories:

• DS-1280ZJ-S Outdoor Junction Box
• DS-1280ZJ-S-AX Outdoor Junction Box

INTENDED USE / APPLICATIONS

Designed for indoor and outdoor IP surveillance applications requiring white light illumination, intelligent human and vehicle filtering, and network-based remote monitoring.
