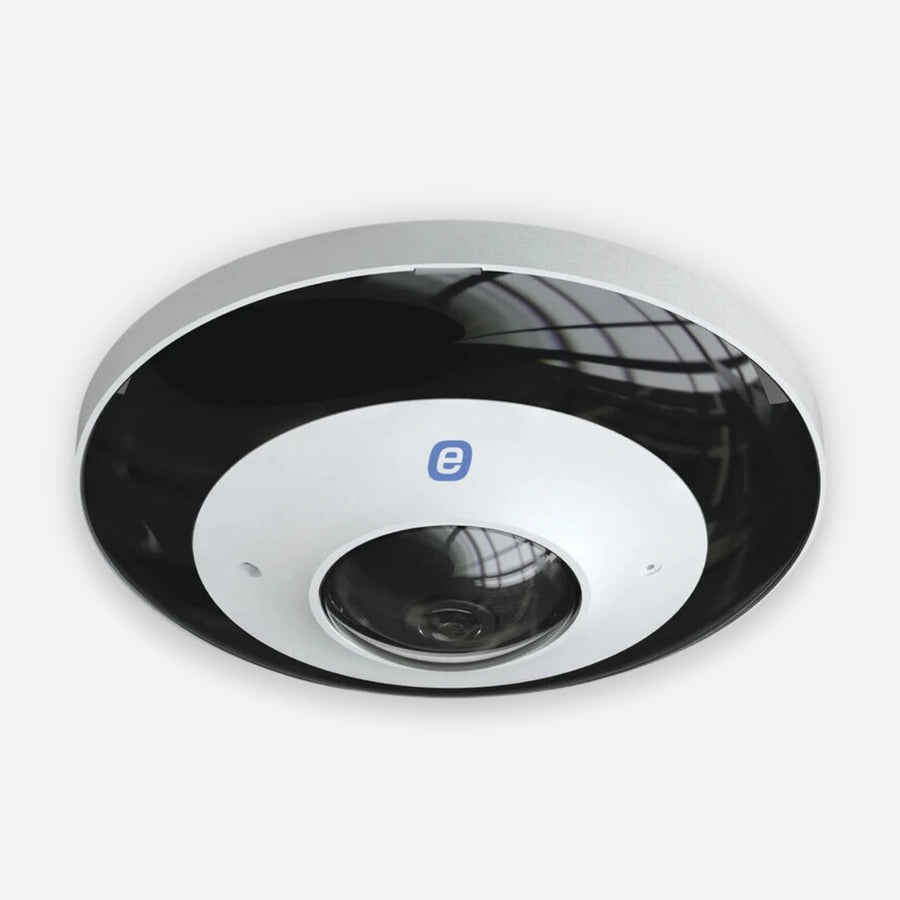

Epcom XF6O-GEN3 6MP Fisheye IP Security Camera 360° IP67 PoE

Epcom · IP Camera

Epcom XF6O-GEN3 6MP Fisheye IP Camera, 1.1 mm Lens, 360° View, Two-Way Audio, PoE, IP67

Part number / SKU
XF6O-GEN3
  • 6 MP
  • 1.1 mm fixed fisheye
  • H.265, H.264
  • IP67
  • microSD up to 256 GB

Works with: XR432/16-GEN3 NVR (dewarping), ADAPTERCLOUD-08 cloud adapter

$209.38

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty
Request a quote

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Epcom XF6O-GEN3 is a 6 MP fisheye IP camera in Epcom's GEN3 line with a fixed 1.1 mm lens that covers a 180° to 360° view from one ceiling mount. Dewarping turns the circular image into corrected views, and IR reaches 20 to 30 m.

It encodes H.265 or H.264 with 3D DNR, dWDR, HLC and BLC, has a built-in microphone plus one audio input and one audio output, and records to microSD up to 256 GB. Power is 12 V DC or PoE at under 10.5 W. The IP67 housing measures 130 x 41 mm, operates from -30 to 60 °C, and the camera is NDAA certified.

  • Best for: open rooms, lobbies and warehouses where one ceiling camera should cover the whole space.
  • System fit: Dewarping on the XR432/16-GEN3 recorder (web), SuperLivePlus app and NVMS PC software; ONVIF.
  • Important to know: ceiling mount only; not compatible with Hik-Connect or iVMS-4200, and EpcomCloud recording needs licenses and the ADAPTERCLOUD-08 adapter.

Why teams choose it

Built for secure sites

  • 360° coverage

    one 1.1 mm fisheye lens.

  • Dewarping

    corrected views on supported recorder, app and PC software.

  • Two-way audio

    built-in mic, audio in and audio out.

  • Edge storage

    microSD up to 256 GB.

Specifications

Technical specifications

General
Brand Epcom
Model XF6O-GEN3
Device Type Fisheye IP camera
Form Factor Fisheye
Video
Resolution 6 MP
Lens 1.1 mm fixed fisheye
Field of View 180° to 360°
IR Range 20 to 30 m
Image Functions 3D DNR, dWDR, HLC, BLC, dewarping
Video Compression H.265, H.264
Audio
Audio Input Built-in microphone; 1 audio input
Audio Output 1 channel
Software and Management
Dewarping Support XR432/16-GEN3 web, SuperLivePlus app, NVMS PC software
Not Compatible Hik-Connect, iVMS-4200
Storage microSD up to 256 GB
Protocols ONVIF
Cloud Recording EpcomCloud, license and ADAPTERCLOUD-08 required
Interfaces
Ethernet Ports 1x RJ45, PoE
Power
Power Method 12 VDC or PoE
Max Power Consumption Under 10.5 W
Physical
Mounting Ceiling only
Dimensions 130 x 41 mm
Weight Approx. 0.45 kg
Environmental
IP Rating IP67
Operating Temperature -30 to 60 °C (-22 to 140 °F)
Listings and Approvals
Certification NDAA
