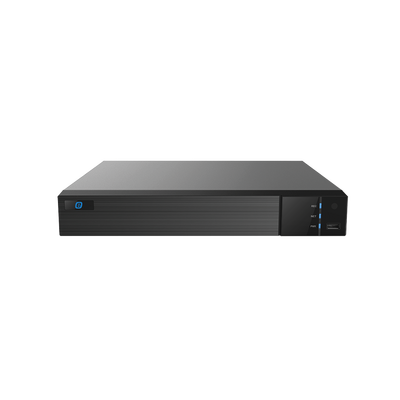

Epcom XR14/4-GEN3(B) 4-Channel 8MP NVR PoE H.265+ 4K
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
The Epcom XR14/4-GEN3(B) is a professional 4-channel Network Video Recorder (NVR) designed for high-resolution IP surveillance systems. Supporting up to 8MP (4K Ultra HD) recording, integrated PoE connectivity, H.265+ video compression, and intelligent analytics including face detection and human/vehicle classification, this NVR provides efficient and reliable video management for residential, commercial, and enterprise security installations.
With support for a single SATA hard drive up to 10TB, cloud recording via EpcomCloud, 4K video output, and simultaneous multi-user remote access, the XR14/4-GEN3(B) delivers powerful performance in a compact desktop form factor.
PRODUCT TYPE / CATEGORY
Video Surveillance
Network Video Recorders (NVR)
IP Camera Recording Systems
KEY FEATURES
• Supports up to 4 IP camera channels
• 8MP (4K Ultra HD) recording resolution
• Four integrated PoE ports for direct camera connection
• Artificial Intelligence video analytics
• Face detection support
• Human and vehicle classification
• H.265+, H.265, and H.264 video compression
• 4K HDMI video output
• Supports one SATA hard drive up to 10TB
• Cloud recording support via EpcomCloud
• 4-channel simultaneous playback
• Multi-user remote access capability
• P2P remote connectivity
• NDAA compliant
• Compatible with SuperLive Plus mobile application
TECHNICAL SPECIFICATIONS
• Brand: Epcom
• Model: XR14/4-GEN3(B)
• Device Type: Network Video Recorder (NVR)
• Maximum Recording Resolution: 8MP (3840 × 2160)
• IP Camera Channels: 4
• PoE Ports: 4 × RJ45 (100 Mbps)
• PoE Budget: 48W
• Video Compression: H.265+, H.265, H.264
• Video Output: 4K Ultra HD
• Playback: 4-Channel Simultaneous Playback
• Hard Drive Support: 1 SATA HDD
• Maximum HDD Capacity: 10TB
• USB Ports: 2 × USB 2.0
• AI Functions: Face Detection, Human & Vehicle Classification
• Cloud Recording: EpcomCloud Compatible (License Required)
• Network Interface: 1 × RJ45 Gigabit Ethernet (10/100/1000 Mbps)
• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 80 Mbps
• Audio Support: Network Audio Input, 4CH Audio Input
• Remote Access: P2P Multi-User Access
• Mobile App: SuperLive Plus (iOS & Android)
• Power Supply: DC 48V / 1.25A (Included)
• Power Consumption: ≤10W (Without HDD)
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Dimensions: 300 × 249 × 45 mm (11.81 × 9.80 × 1.77 in)
• Rack Mountable: No
• Certification: NDAA Compliant
• Hard Drive: Not Included
