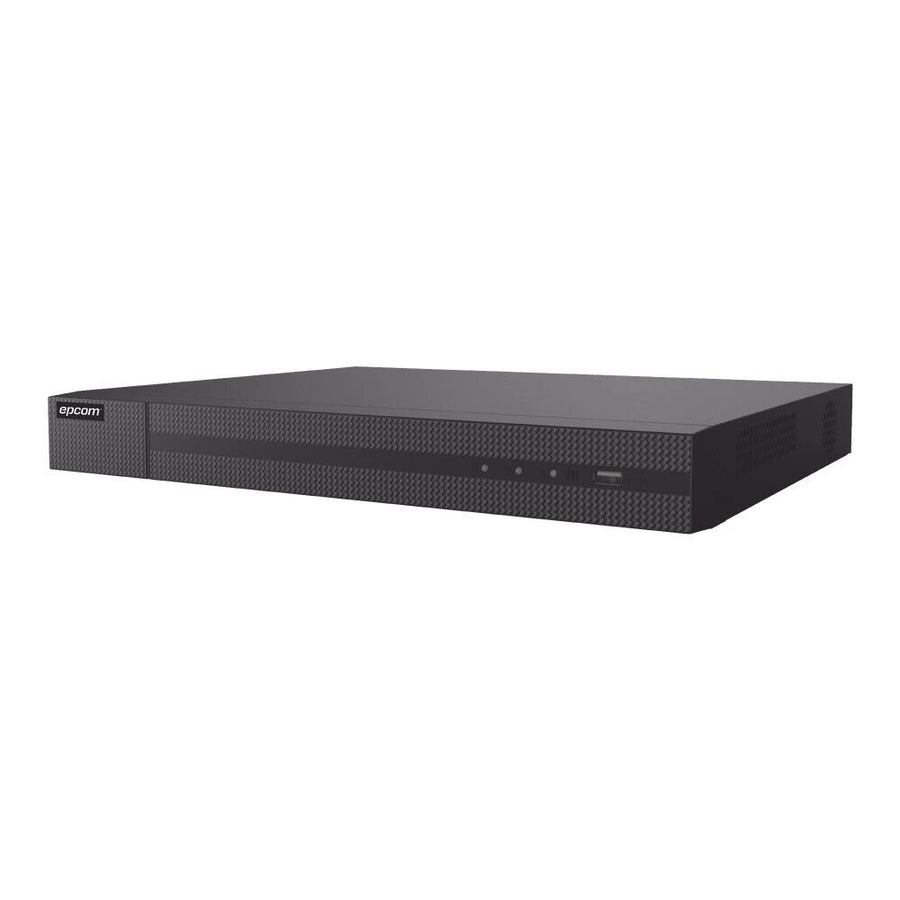

Epcom XR216A/16PH 16-Channel 8MP 4K NVR 16 PoE+ Ports

Epcom · DVR / NVR

Epcom XR216A/16PH 16-Channel 8MP PoE+ NVR, 16 PoE+ Ports 150 W, 2 HDD Bays, 4K HDMI

Manufacturer part number
XR216A/16PH
EhubAmerica SKU
XR216A/16PH-RLX2
  • H.265+, H.265, H.264+, H.264
$230.22

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty
Request a quote

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Epcom XR216A/16PH is a 16-channel network video recorder for IP cameras up to 8 MP (4K), with sixteen PoE+ ports (802.3af/at) that share a 150 W budget. It records in H.265+, H.265, H.264+ or H.264.

Independent HDMI and VGA outputs include 4K HDMI. Two hard drive bays take drives up to 6 TB each, incoming bandwidth is 160 Mbps and outgoing 80 Mbps, and a Gigabit LAN port connects to the network. It works with P2P, the Hik-Connect app and iVMS-4200, runs on 100 to 240 V AC and weighs 3 kg without drives.

  • Best for: mid sized sites with up to 16 IP cameras up to 4K on one PoE+ recorder.
  • System fit: Hik-Connect app, iVMS-4200 software, P2P.
  • Important to know: hard drives are not included.

Why teams choose it

Built for secure sites

  • PoE+ ports

    16 ports, 802.3af/at, 150 W total.

  • 8 MP cameras

    records IP cameras up to 4K.

  • Storage

    2 bays, up to 6 TB each.

  • Internal supply

    runs on 100 to 240 V AC.

Specifications

Technical specifications

General
Brand Epcom
Model XR216A/16PH
Device Type Network video recorder with PoE+
Channels 16 IP
Video
Max Camera Resolution 8 MP (4K)
Video Compression H.265+, H.265, H.264+, H.264
Video Output HDMI 4K and VGA, independent
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth 80 Mbps
Interfaces
Ethernet Ports 1x Gigabit RJ45
PoE Ports 16x PoE+
PoE Standard 802.3af/at
PoE Budget 150 W
Software and Management
Remote Access P2P
Software iVMS-4200, Hik-Connect app
Power
Power Method 100 to 240 VAC
Power Consumption 280 W
Physical
HDD Bays 2, up to 6 TB each, not included
Dimensions 385 x 315 x 52 mm
Weight 3 kg without HDD
