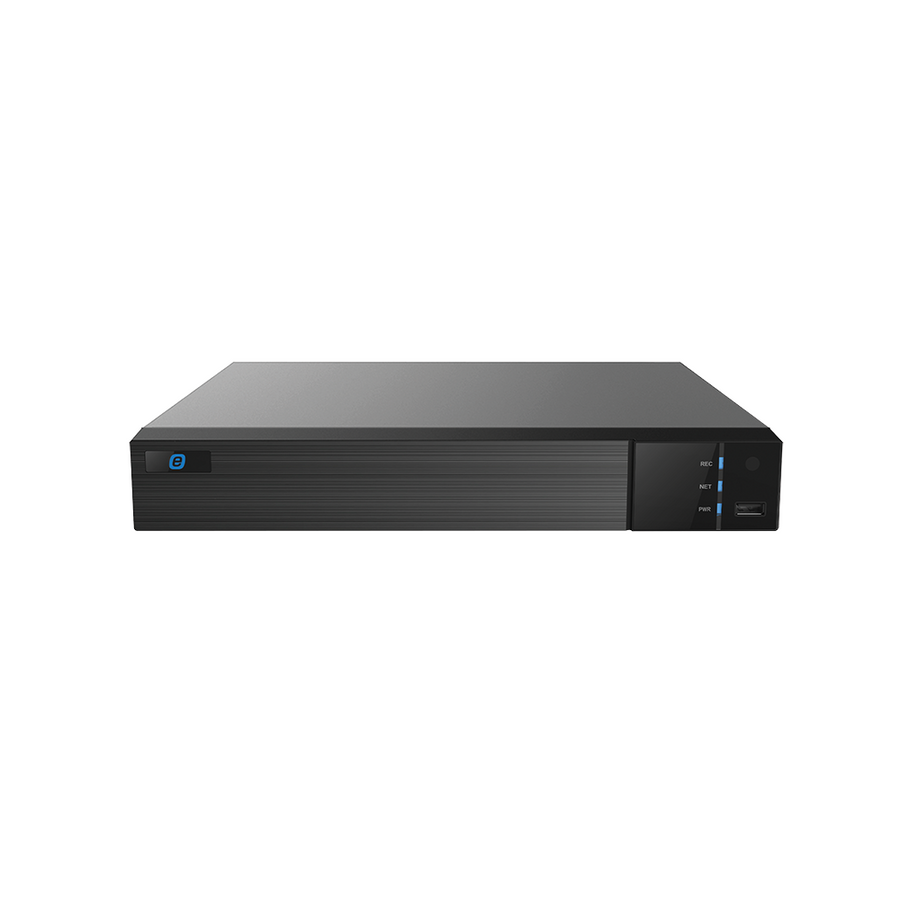

Epcom XR432/16-GEN3 32-Channel 8MP 4K NVR 16 PoE Ports H.265+

Epcom · DVR / NVR

Epcom XR432/16-GEN3 32-Channel 8MP NVR, 16 PoE Ports, 4 SATA, Facial Recognition, 4K Output

Manufacturer part number
XR432/16-GEN3
EhubAmerica SKU
XR432/16-GEN3-RLX2
  • H.265+, H.265, H.264

Works with: XE52C-GEN3 camera (face detection), XB54CA-GEN3 camera (face detection), XB82T-GEN3 camera (face detection), XF6O-GEN3 fisheye (dewarping), ADAPTERCLOUD-08 cloud adapter

$476.73

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Epcom XR432/16-GEN3 is a 32-channel network video recorder in Epcom's GEN3 line with sixteen built-in PoE ports. It records IP cameras up to 8 MP (3840 x 2160) in H.265+, H.265 or H.264, plays back 16 channels at once and outputs 4K video.

Facial recognition runs on up to 6 channels with cameras that support face detection (XE52C-GEN3, XB54CA-GEN3, XB82T-GEN3) or up to 2 channels with other cameras. Four SATA bays take up to 10 TB each, bandwidth is 192 Mbps in and out, and there are two 100 Mbps RJ45 network ports and two USB 2.0 ports. Power is 100 to 240 V AC with the supply built in, consumption is 20 W or less without drives, and rack ears are included.

  • Best for: larger shops, offices and campuses with up to 32 IP cameras, 16 of them powered from the recorder.
  • System fit: Epcom GEN3 cameras with face detection; ONVIF IP cameras; P2P; EpcomCloud; dewarping for the XF6O-GEN3 fisheye.
  • Important to know: hard drives are not included; EpcomCloud recording needs cloud licenses and the ADAPTERCLOUD-08 adapter.

Why teams choose it

Built for secure sites

  • 32 channels

    16 cameras powered by built-in PoE.

  • Facial recognition

    up to 6 channels with face detection cameras.

  • Storage

    4 SATA bays, up to 10 TB each.

  • Rack ready

    rack mounting kit included.

Specifications

Technical specifications

General
Brand Epcom
Model XR432/16-GEN3
Device Type Network video recorder with PoE and facial recognition
Channels 32 IP
Video
Max Recording Resolution 8 MP, 3840 x 2160
Video Compression H.265+, H.265, H.264
Video Output 4K
Playback 16 channels simultaneous
Incoming Bandwidth 192 Mbps
Outgoing Bandwidth 192 Mbps
Interfaces
Ethernet Ports 2x RJ45, 100 Mbps
PoE Ports 16x RJ45, 100 Mbps
USB 2x USB 2.0
Audio Network audio input, 16 channels
Software and Management
Facial Recognition Up to 6 channels with face detection cameras; up to 2 channels with other cameras
Remote Access P2P, multi-user
Cloud Recording EpcomCloud, license and ADAPTERCLOUD-08 required
Power
Power Method 100 to 240 VAC, internal
Power Consumption 20 W or less without HDD
Physical
HDD Bays 4x SATA, up to 10 TB each, not included
Form Factor Rackmount, kit included
Dimensions 440 x 390 x 70 mm
Listings and Approvals
Certification NDAA

In the box

  • Rack mount kit
