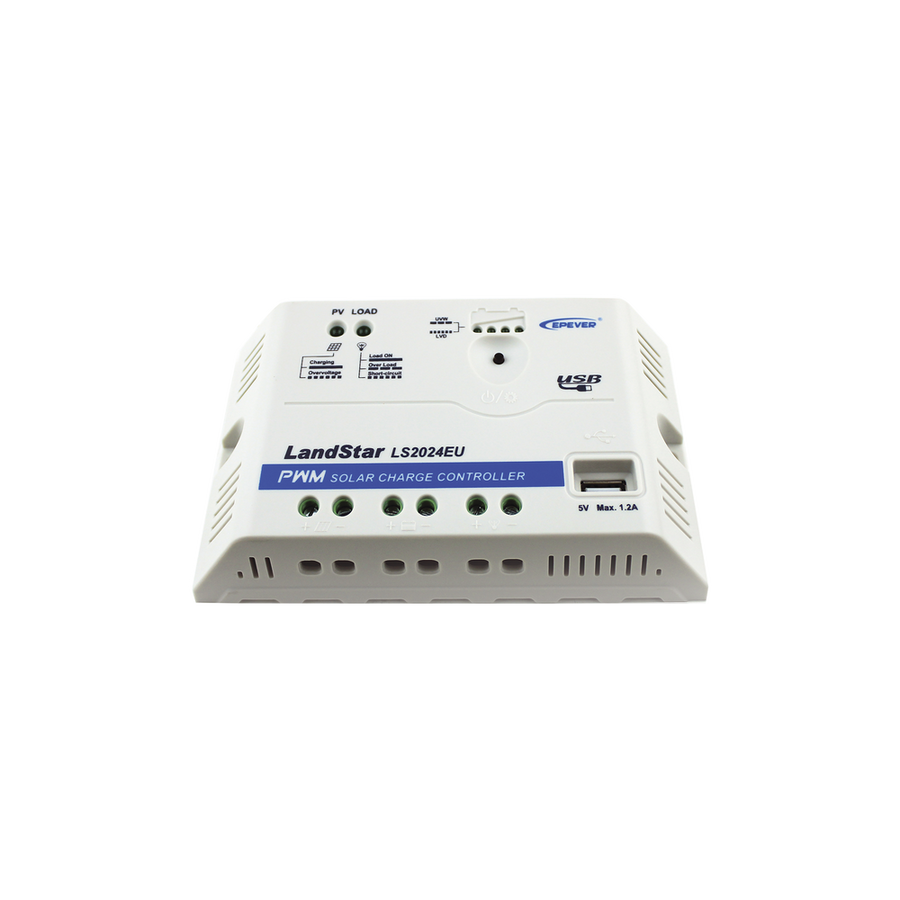

Epever LS-2024-EU 20A PWM Solar Charge Controller 12/24V USB
- EhubAmerica SKU
- LS-2024-EU
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
EPEVER LS2024EU 20A PWM Solar Charge Controller 12/24V USB
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
EPEVER LandStar LS2024EU PWM solar charge controller with 20A charge/discharge current, automatic 12/24VDC operation, 5VDC/1.2A USB output, three-stage charging, and support for Sealed, Gel, and Flooded batteries.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄
Power Supplies & UPS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• 20A rated charge current
• 20A rated discharge current
• Automatic 12/24VDC system voltage operation
• Three-stage intelligent PWM charging: Bulk, Boost/Equalize, and Float
• Supports Sealed, Gel, and Flooded battery charging options
• 5VDC/1.2A USB output for compatible electronic equipment
• Battery status LED indicators
• Battery temperature compensation
• Button-selectable battery type and load output
• Electronic protection functions including battery over-voltage, over-discharge, load overload, load short circuit, and high-voltage transient protection
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: EPEVER
• Series: LandStar E/EU
• Model: LS2024EU
• Controller Type: PWM Solar Charge Controller
• Nominal System Voltage: 12/24VDC Auto
• Rated Charge Current: 20A
• Rated Discharge Current: 20A
• Battery Input Voltage Range: 8V–32V
• Maximum PV Open-Circuit Voltage: 50V
• Self-Consumption: ≤5mA at 12V; ≤7mA at 24V
• Charge Circuit Voltage Drop: ≤0.13V
• Discharge Circuit Voltage Drop: ≤0.17V
• USB Output: 5VDC/1.2A
• Temperature Compensation Coefficient: -5mV/°C/2V
• Working Environment Temperature: -35°C to +55°C
• Humidity: ≤95%, non-condensing
• Enclosure Rating: IP20
• Grounding: Common Positive
• Overall Dimensions: 148 x 85.6 x 34.8 mm
• Mounting Dimension: 138 mm
• Mounting Hole Size: Φ4.5 mm
• Terminals: 10 AWG / 6 mm²
• Net Weight: 0.18 kg
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Solar car systems
• Solar home systems
• Solar backpack systems
• Solar boat systems
• Solar street lighting
• Solar power generators
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Epever |
| Model | LS-2024-EU |
| Series | LandStar-EU |
| Type | PWM Solar Charge Controller |
| System Voltage | 12V/24V (Auto-Detect) |
| Charge Current | 20A |
| Power & Electrical | |
| Battery Types Supported | Sealed, Gel, Flooded Lead-Acid |
| Charging Stages | Three-Stage (Bulk, Boost/Equalize, Float) |
| Ground Configuration | Common Positive Ground |
| Environmental | |
| Operating Temperature Range | -31°F to 131°F (-35°C to 55°C) |
| Features | |
| USB Output | Yes (Device charging port) |
| LED Indicator | Battery status display |
| Protection | Overload and short-circuit protection |
| Auto-Detection | 12V or 24V battery system recognition |
