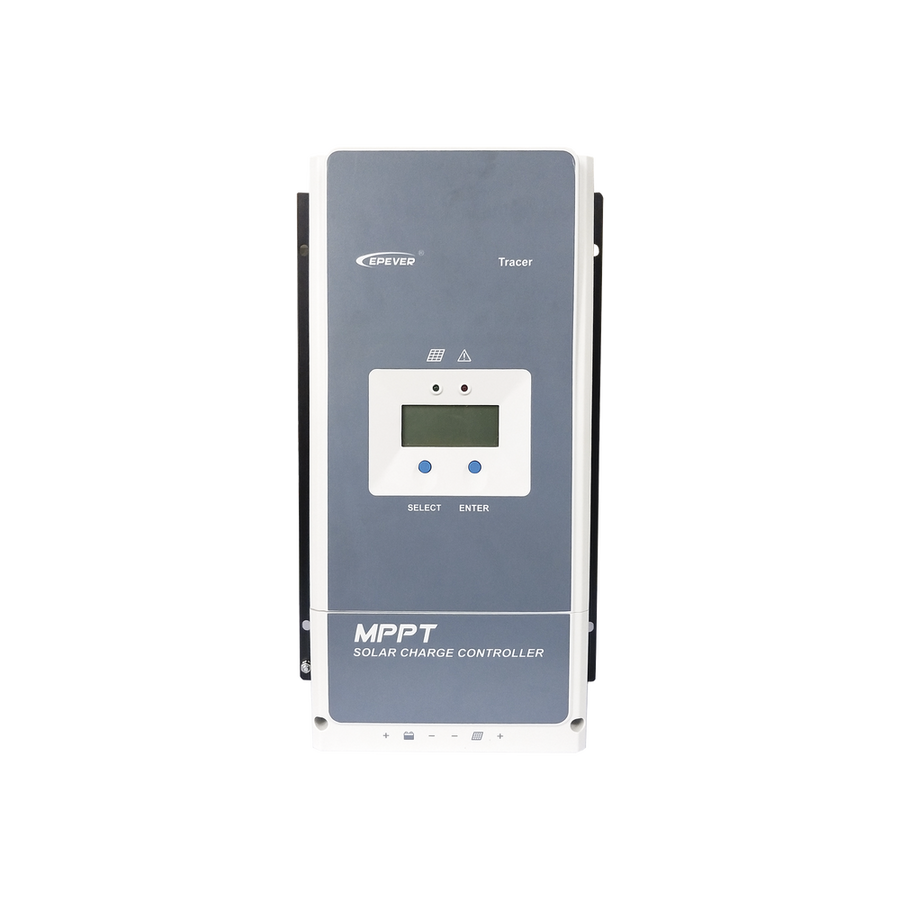

Epever TRACER-6415-AN 60A MPPT Solar Charge Controller 12/24/36/48V

PRODUCT OVERVIEW

Advanced MPPT technology with an ultra-fast tracking speed of up to 99.5% efficiency.

PRODUCT TYPE

Power Supplies & UPS

KEY FEATURES

• Ultra-Fast MPPT Tracking Technology With 99.5% Efficiency
• Maximum DC/DC Power Transfer Efficiency up to 98.7%
• Supports Parallel Connection of up to 8 Units for System Expansion
• Advanced Algorithm Minimizes Multiple Peak MPP Power Loss
• Automatic Battery Temperature Compensation for Optimal Charging
• Comprehensive Protection Against Overcurrent, Short Circuit, and Reverse Polarity

TECHNICAL SPECIFICATIONS

• Brand: Epever
• Model: TRACER-6415-AN
• Product Type: Networking Accessories
• CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3).
• Advanced MPPT technology with an ultra-fast tracking speed of up to 99.5% efficiency.
• High energy conversion with a maximum DC/DC transfer efficiency of 98.7%.
• Minimizes MPP loss rate and tracking time.
• Accurately tracks multiple peak MPP points.
• Wide MPP operating voltage range for better performance in varying conditions.
• Automatic power and current control to prevent overloading.
• Supports 4 charging modes: Sealed, Gel, Flooded, and User-defined.
• Battery temperature compensation for optimal charging.
• Real-time energy recording & statistics for efficient monitoring.
• Automatic power reduction at high temperatures to prevent overheating.
• Supports up to 8 units in parallel for system expansion.
• Load relay control for diverse load operation modes.
• Dual relay contacts for first and second disconnection of load control.
• Automatic utility & generator control relays for hybrid power systems.
• Remote temperature & voltage sensors for accurate battery data collection.
• Isolated RS-485 with 5VDC/200mA output (MODBUS protocol) for secure device communication.
• Monitor and configure settings via mobile apps or PC software.
• PV Overcurrent/Power
• PV Short Circuit
• PV Reverse Polarity
• Night Reverse Charging
• Battery Over Voltage
• Battery Over Discharge
• Battery Overheating
• Controller Overheating
• TVS High Voltage Transients
• Ultra-Fast MPPT Tracking Technology With 99.5% Efficiency
• Maximum DC/DC Power Transfer Efficiency up to 98.7%

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
