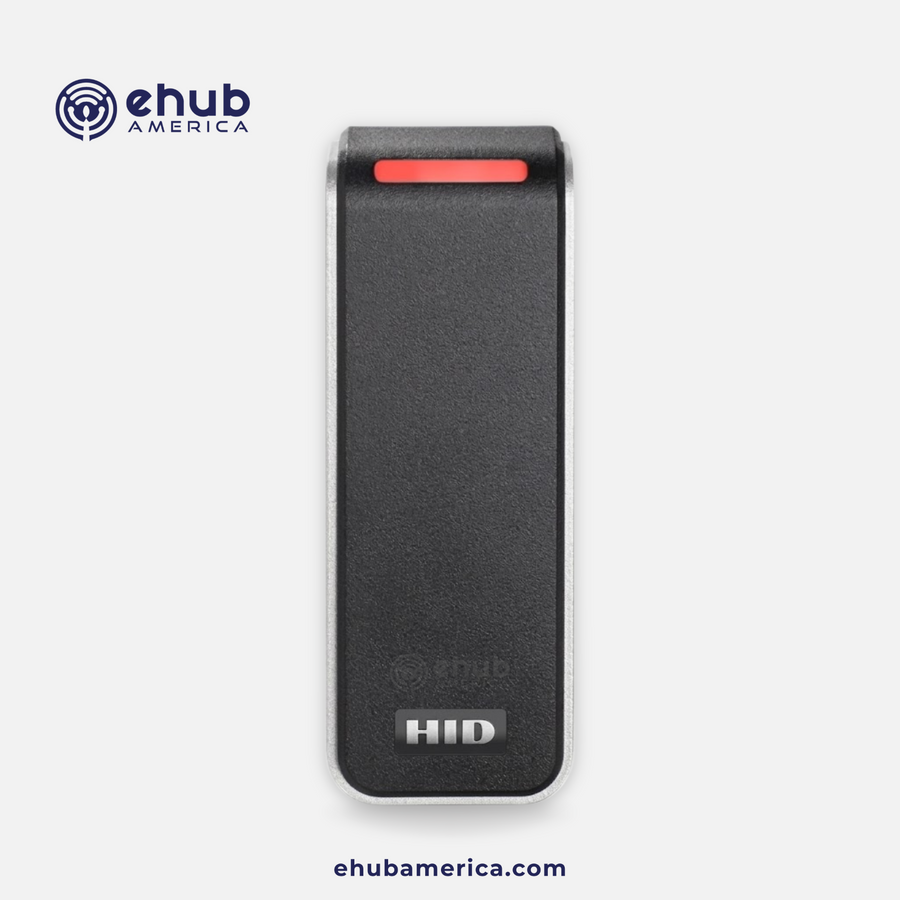

HID 20NKS-00-000000 Signo 20 Standard Profile Contactless Card Reader

HID · Access Control

HID Signo 20 20NKS-00-000000 Mullion Contactless Smart Card Reader

Part number / SKU
20NKS-00-000000
  • IP65

Works with: Access control panels with Wiegand reader inputs, Access control panels with OSDP (RS-485) reader inputs, HID Mobile Access (Seos mobile credentials), HID Reader Manager Confirmed by the manufacturer

$216.84

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The HID Signo Reader 20 (20NKS-00-000000) is a mullion contactless reader from the HID Signo family. Signo readers support 125 kHz HID, Indala, AWID and EM proximity, 13.56 MHz Seos, iCLASS SE, iCLASS SR, iCLASS, MIFARE Classic and MIFARE DESFire EV1/EV2 credentials, and Bluetooth mobile credentials powered by Seos; the technologies enabled depend on the reader configuration.

The reader runs on 12V DC and draws 60 mA in normal standby, 70 mA maximum average and 250 mA peak, or 45 mA with Intelligent Power Management. It connects by Wiegand or RS-485 half duplex OSDP through an 18 in pigtail or a terminal strip, depending on version, and it can be managed with HID Reader Manager or OSDP configuration. The polycarbonate (UL94 V0) housing is IP65 rated and UL 294 rated for indoor and outdoor use, operates from -31 to 150 F and measures 1.77 x 4.78 x 0.77 in.

  • Best for: mullion-mount door installations or any flat surface where cards and mobile credentials are both used.
  • System fit: access control panels with Wiegand or OSDP (RS-485) reader inputs; HID Prox, iCLASS, Seos, MIFARE and HID Mobile Access credentials.
  • Important to know: the credential technologies enabled depend on the reader configuration ordered; confirm against your credentials before installing.

Why teams choose it

Built for secure sites

  • Multi-technology platform

    Signo readers support 125 kHz prox, 13.56 MHz smart cards and Bluetooth mobile credentials, per configuration.

  • OSDP or Wiegand

    connects to panels over RS-485 OSDP or Wiegand.

  • Indoor and outdoor

    IP65 housing, UL 294 rated for outdoor use, -31 to 150 F.

  • Low power option

    Intelligent Power Management lowers draw to 45 mA at 12V.

Specifications

Technical specifications

General
Brand HID
Model 20NKS-00-000000
Product Line Signo Reader 20
Device Type Mullion contactless smart card reader
Keypad None
Communications Wiegand; RS-485 half duplex (OSDP)
Connection 18 in (0.5 m) pigtail or terminal strip, depending on version
Device I/O Inputs for tri-color LED, buzzer and hold; tamper relay output 0 to 60V DC, 100 mA max (dry contact)
Management HID Reader Manager; OSDP configuration
Electrical
Operating Voltage 12V DC
Standby Current 60 mA at 12V (45 mA with Intelligent Power Management)
Maximum Average Current 70 mA at 12V
Peak Current 250 mA at 12V
Wireless
Wireless Frequency 125 kHz, 13.56 MHz, 2.4 GHz
125 kHz Credentials (Signo family, per configuration) HID Proximity, Indala, AWID, EM
13.56 MHz Credentials (Signo family, per configuration) Seos, iCLASS SE, iCLASS SR, iCLASS, MIFARE Classic, MIFARE DESFire EV1/EV2
2.4 GHz Credentials (Signo family, per configuration) Bluetooth mobile credentials powered by Seos (HID Mobile Access)
Read Range, 13.56 MHz Cards 1.6 to 4 in (4 to 10 cm), typical
Read Range, 125 kHz Cards 2.4 to 4 in (6 to 10 cm), typical
Physical
Dimensions 1.77 x 4.78 x 0.77 in (45 x 121.5 x 19.5 mm)
Weight 3.35 oz (95 g) pigtail version; 2.65 oz (75 g) terminal version
Housing Material Polycarbonate, UL94 V0
Color Black bezel, silver trim baseplate
Mount Type Mullion or any flat surface
Environmental
IP Rating IP65
Operating Temperature -31 to 150 F (-35 to 66 C)
Storage Temperature -40 to 185 F (-40 to 85 C)
Operating Humidity 0 to 95 percent, non-condensing
Listings and Approvals
Agency Approvals UL 294/cUL (outdoor and indoor); FCC; IC; CE; RCM
