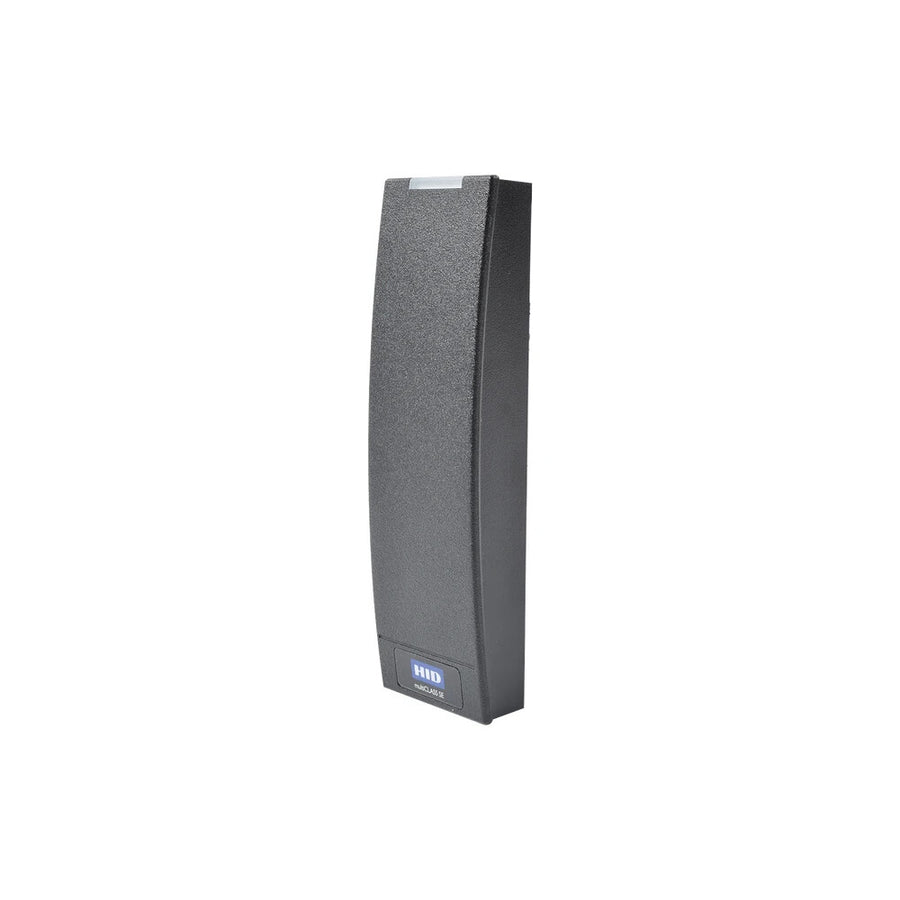

HID 910PMNNEKMA003 iCLASS SE Access Control Reader 13.56MHz NFC Bluetooth

HID · Access Control

HID 910PMNNEKMA003 multiCLASS SE RP15 Mobile-Ready Mullion Reader, 13.56 MHz and 125 kHz, Black

Part number / SKU
910PMNNEKMA003
  • IP55

Works with: HID iCLASS SE / SR credentials, MIFARE DESFire EV1 and MIFARE Classic SE credentials, HID Prox, AWID, Indala, EM4102 125 kHz credentials Confirmed by the manufacturer

$80.99

Special order· Lead time confirmed by our team after you order.

Request a quote

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The HID 910PMNNEKMA003 is a multiCLASS SE RP15 mullion reader on the iCLASS SE platform, in black with a pigtail connection and Wiegand output. It reads 13.56 MHz SIO credentials on iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic, plus 125 kHz HID Prox, AWID, Indala and EM4102, which makes it a migration reader between prox and smart cards.

Typical read ranges are 2.9 in (7.4 cm) for iCLASS SE and 2.8 in (7.1 cm) for HID Prox. The reader runs on 5 to 16 VDC with 60 mA average and 100 mA peak current, supports cable runs up to 500 ft (150 m), and is rated IP55 for -31 to 150 °F (-35 to 65 °C). It measures 1.9 x 6.0 x 0.9 in, weighs 5.2 oz (149 g) in the pigtail version, mounts on a mullion, single-gang box or flat surface, and is UL 294 and FCC listed.

  • Best for: doors moving from 125 kHz prox to iCLASS SE or MIFARE smart credentials without changing readers twice.
  • System fit: access control panels with Wiegand reader inputs; HID iCLASS SE, MIFARE and 125 kHz prox credentials.
  • Important to know: the reader is NFC compliant and its hardware connection can be upgraded to OSDP; mobile credentials need HID Mobile Access setup.

Why teams choose it

Built for secure sites

  • Dual frequency

    reads 13.56 MHz smart cards and 125 kHz prox cards.

  • Secure credentials

    SIO support with keys protected by an EAL5+ secure element.

  • Outdoor rated

    IP55, -31 to 150 °F (-35 to 65 °C).

  • Mullion fit

    1.9 in wide for door frames, single-gang boxes or flat surfaces.

Specifications

Technical specifications

General
Brand HID
Series multiCLASS SE
Model RP15
Part Number 910PMNNEKMA003
Device Type Multi-technology mullion reader
HF Credentials SIO on iCLASS SE/SR, MIFARE DESFire EV1, MIFARE Classic
LF Credentials HID Prox, AWID, Indala, EM4102
Read Range, iCLASS SE 2.9 in (7.4 cm)
Read Range, HID Prox 2.8 in (7.1 cm)
Security EAL5+ secure element
Interfaces
Output Wiegand
Connection Pigtail
Cable Distance Up to 500 ft (150 m)
Upgrade Path OSDP and Hi-O via upgradeable hardware connection
Wireless
Wireless Frequency 13.56 MHz and 125 kHz
NFC NFC compliant, card emulation support
Electrical
Operating Voltage 5 to 16 VDC, linear supply recommended
Current Draw 60 mA average, 100 mA peak
Physical
Dimensions 1.9 x 6.0 x 0.9 in (4.8 x 15.3 x 2.3 cm)
Weight 5.2 oz (149 g), pigtail
Color Black
Mounting Mullion, single-gang box or flat surface
Environmental
IP Rating IP55
Operating Temperature -31 to 150 °F (-35 to 65 °C)
Operating Humidity 5 to 95% RH, non-condensing
Listings and Approvals
Agency Approvals UL 294/cUL (Wiegand output); FCC; IC; CE
