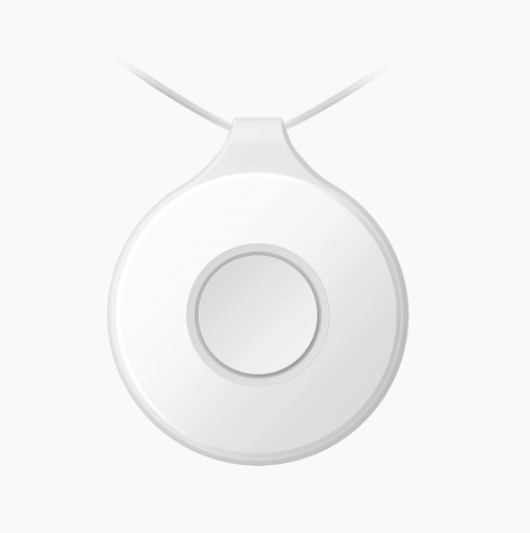

Hikvision DS-PDEBP1-EG2-WB Wireless Panic Button 433MHz IP54

Hikvision · Intrusion & Alarm

Hikvision DS-PDEBP1-EG2-WB AX PRO Wireless Portable Emergency Button, 433 MHz, IP54

Part number / SKU
DS-PDEBP1-EG2-WB
  • IP54
  • CR2032 x 1, 3 V, included

Works with: Hikvision AX PRO wireless control panels

$24.70

Special order· Lead time confirmed by our team after you order.

Request a quote

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Hikvision DS-PDEBP1-EG2-WB is a portable single-button wireless emergency button for the AX PRO intrusion system. It uses Tri-X two-way wireless on 433 MHz with AES-128 encryption, frequency hopping and an 800 m free space range, with a red/green LED and signal strength indication.

It runs on one CR2032 battery (included) rated up to 3 years in standby, carries an IP54 rating and operates from -10 to 55 °C at 10 to 90% humidity. A lanyard is included and a bracelet or wristband is optional. Enrollment is by power-up, remote ID or QR code.

  • Best for: personal emergency alerts carried by staff or residents on Hikvision AX PRO systems.
  • System fit: Hikvision AX PRO wireless control panels (Tri-X, 433 MHz).
  • Important to know: the button has no tamper switch; a lanyard is included.

Why teams choose it

Built for secure sites

  • One-touch alert

    single emergency button.

  • Carry options

    lanyard included, wristband optional.

  • Splash protection

    IP54 rating.

  • Encrypted wireless

    AES-128 with frequency hopping and 800 m range.

Specifications

Technical specifications

General
Brand Hikvision
Series AX PRO
Model DS-PDEBP1-EG2-WB
Device Type Wireless portable emergency button
Buttons 1
Indicator Red/green LED
Tamper None
Enrollment Power-up, remote ID, QR code
Wireless
Wireless Frequency 433 MHz
Protocol Tri-X two-way wireless
Encryption AES-128
Transmission Range 800 m free space
Frequency Hopping Yes
Electrical
Power Supply CR2032 x 1, 3 V, included
Battery Life Up to 3 years standby
Physical
Weight 0.02 lb
Environmental
IP Rating IP54
Operating Temperature -10 to 55 °C (14 to 131 °F)
Operating Humidity 10 to 90%, non-condensing

In the box

  • Emergency button
  • CR2032 battery
  • Lanyard
