Hikvision DS-PDEBP2-EG2-WB Portable Wireless Dual Panic Button IP66

Hikvision · Intrusion & Alarm

Hikvision DS-PDEBP2-EG2-WB AX PRO Wireless Portable Dual-Button Emergency Button, 433 MHz

Part number / SKU
DS-PDEBP2-EG2-WB
  • IP54
  • CR2035 x 1, 3 V

Works with: Hikvision AX PRO wireless control panels, DS-PDB-IN-Wristband Confirmed by the manufacturer

$23.99

Special order· Lead time confirmed by our team after you order.

Request a quote

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

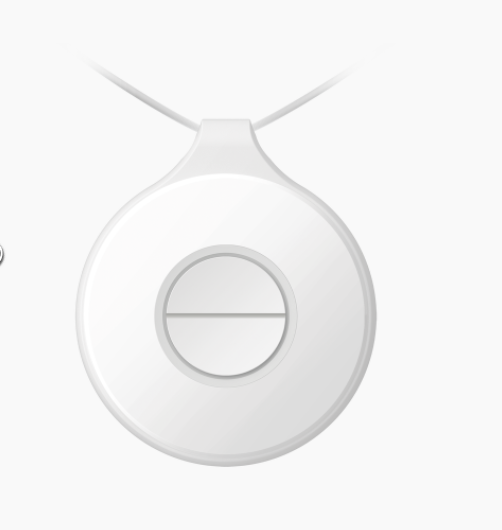

The Hikvision DS-PDEBP2-EG2-WB is a portable two-button wireless emergency button for the AX PRO intrusion system. It uses Tri-X two-way wireless on 433 MHz with AES-128 encryption, frequency hopping and an 800 m free space range, and a red/green LED confirms transmission.

The round body measures 38 mm across and 12 mm thick and weighs 13.5 g. It runs on one CR2035 battery rated about 3 years at 20 triggers per day, carries an IP54 rating and operates from -10 to 55 °C. It can be carried on the optional DS-PDB-IN-Wristband or a lanyard, and enrolls by power-up, remote ID or QR code.

  • Best for: personal emergency alerts carried by staff, residents or caregivers on Hikvision AX PRO systems.
  • System fit: Hikvision AX PRO wireless control panels (Tri-X, 433 MHz).
  • Important to know: the wristband and lanyard are optional accessories.

Why teams choose it

Built for secure sites

  • Two buttons

    dual-button design for emergency alerts.

  • Small and light

    38 mm round body, 13.5 g.

  • Splash protection

    IP54 rating.

  • Encrypted wireless

    AES-128 with frequency hopping and 800 m range.

Specifications

Technical specifications

General
Brand Hikvision
Series AX PRO
Model DS-PDEBP2-EG2-WB
Device Type Wireless portable emergency button
Buttons 2
Indicator Red/green LED
Enrollment Power-up, remote ID, QR code
Wireless
Wireless Frequency 433 MHz
Protocol Tri-X two-way wireless
Encryption AES-128
Transmission Range 800 m free space
Frequency Hopping Yes
Electrical
Power Supply CR2035 x 1, 3 V
Battery Life About 3 years at 20 triggers per day
Physical
Dimensions 38 mm diameter x 12 mm
Weight 13.5 g
Environmental
IP Rating IP54
Operating Temperature -10 to 55 °C (14 to 131 °F)
Operating Humidity 10 to 90%
