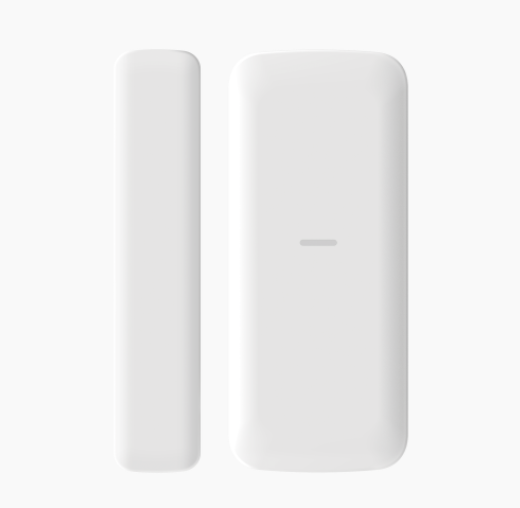

Hikvision DS-PDMCS-EG2-WB Wireless Magnetic Door Contact 433MHz AES-128

Hikvision · Intrusion & Alarm

Hikvision DS-PDMCS-EG2-WB AX PRO Wireless Slim Magnetic Door Contact, 433 MHz

Part number / SKU
DS-PDMCS-EG2-WB
  • CR2450 x 1, 3 V

Works with: Hikvision AX PRO wireless control panels

$27.31

Special order· Lead time confirmed by our team after you order.

Request a quote

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Hikvision DS-PDMCS-EG2-WB is a slim wireless magnetic contact for doors and windows on the AX PRO intrusion system. It reports openings with a maximum detection gap of 52 mm and uses Tri-X two-way wireless on 433 MHz with AES-128 encryption and a 1 km free space range.

The sensor measures 29 x 69 x 10 mm and the magnet 14 x 69 x 10 mm, with a total weight of 38 g. It runs on one CR2450 battery rated about 3 years, has front and rear tamper and a blue alarm LED, operates from -10 to 55 °C at 10 to 90% humidity, and enrolls by power-up, remote ID or QR code.

  • Best for: indoor doors and windows where a thin contact is needed, on Hikvision AX PRO systems.
  • System fit: Hikvision AX PRO wireless control panels (Tri-X, 433 MHz).
  • Important to know: indoor use; keep the magnet within the 52 mm maximum gap.

Why teams choose it

Built for secure sites

  • Slim profile

    10 mm thick sensor and magnet.

  • Generous gap

    detects openings with up to 52 mm magnet gap.

  • Encrypted wireless

    AES-128 with a 1 km free space range.

  • Tamper protected

    front and rear tamper detection.

Specifications

Technical specifications

General
Brand Hikvision
Series AX PRO
Model DS-PDMCS-EG2-WB
Device Type Wireless slim magnetic contact
Detection Type Magnetic opening contact
Detection Gap 52 mm max
Tamper Front and rear
Indicator Blue alarm LED
Enrollment Power-up, remote ID, QR code
Wireless
Wireless Frequency 433 MHz
Protocol Tri-X two-way wireless
Encryption AES-128
Transmission Range 1 km free space
Electrical
Power Supply CR2450 x 1, 3 V
Battery Life About 3 years
Physical
Sensor Dimensions 29 x 69 x 10 mm
Magnet Dimensions 14 x 69 x 10 mm
Weight 38 g
Environmental
Operating Temperature -10 to 55 °C (14 to 131 °F)
Operating Humidity 10 to 90%
Application Indoor
