Hytera CH10L23 MCU Rapid-rate Power Charger

Hytera · Power Adapters & Chargers

Hytera CH10L23 Single-Unit Desktop Charger 800 mA for BD505LF, BD505, BD555 and BD615

Part number / SKU
CH10L23

Works with: BD505LF, BD505, BD555, BD615 Confirmed by the manufacturer

Price on request

Available by quote· Availability and lead time confirmed with your quote.

Request a quote

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

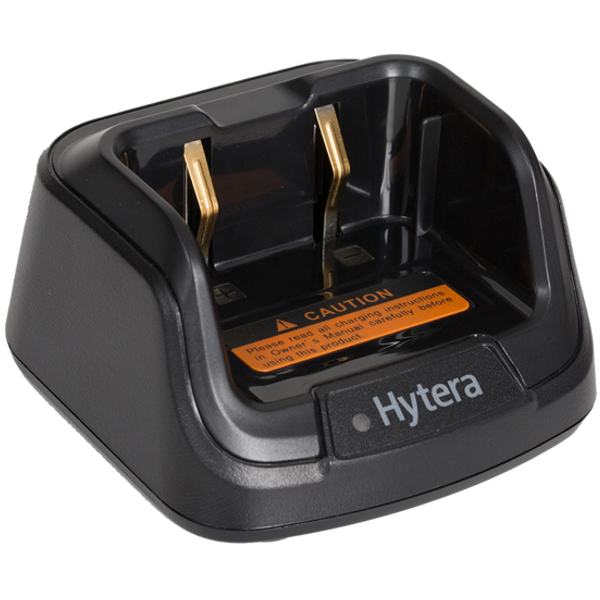

The Hytera CH10L23 is a single-pocket desktop charger for Hytera BD5 and BD6 series portable radios and their batteries. Hytera lists a maximum charging current of 800 mA.

Hytera lists it for the BD505LF, BD505, BD555 and BD615. It takes a 12 V DC, 1 A input, measures about 77.4 x 77.1 x 46.0 mm and weighs about 70 g.

  • Best for: Hytera BD5 and BD6 series users who need one charger per radio at a desk or workstation.
  • Fits: BD505LF, BD505, BD555 and BD615.
  • Important to know: the charger needs a 12 V DC, 1 A power supply, and the listing does not state that one is included. Confirm before ordering.

Why teams choose it

Keeps your radios in service

  • Matched to BD5 and BD6

    Hytera lists the BD505LF, BD505, BD555 and BD615.

  • Up to 800 mA

    maximum charging current per Hytera.

  • Single pocket

    one charger per radio keeps each user's unit ready.

  • Compact

    about 77 x 77 x 46 mm and 70 g.

Specifications

Technical specifications

General
Brand Hytera
Model CH10L23
Product Type General MCU Rapid-Rate Charger
Charging Platform MCU
