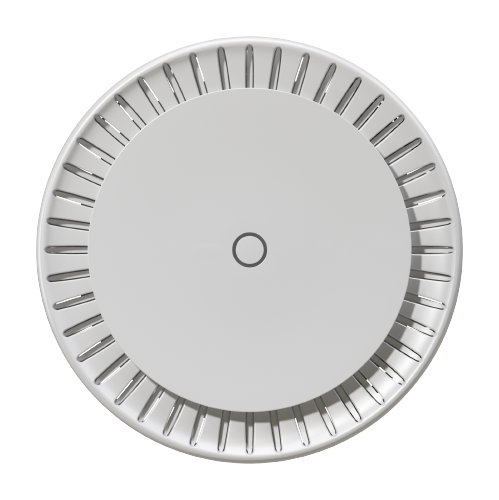

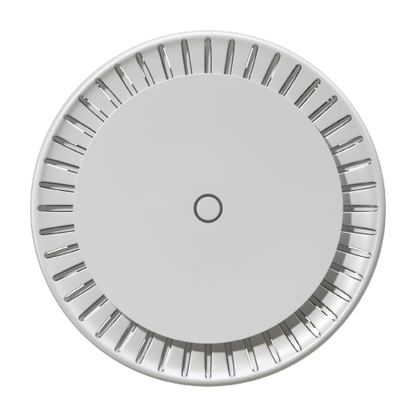

MikroTik cAPGi-5HaxD2HaxD Wi-Fi 6 AX1800 Wireless Access Point PoE

The MikroTik cAPGi-5HaxD2HaxD is a sixth-generation Wi-Fi 6 (802.11ax) dual-band ceiling access point built for high-density environments such as offices, hotels, and shopping centers. At its core is a quad-core IPQ-6010 ARM 64-bit processor running at up to 1800 MHz, paired with 1 GB of RAM and RouterOS v7 (License 4), delivering the processing headroom needed for demanding enterprise workloads. Dual concurrent radios deliver up to 574 Mbit/s on 2.4 GHz and 1200 Mbit/s on 5 GHz for a combined AX1800 throughput class. Two Gigabit Ethernet ports, onboard IPsec hardware acceleration, passive cooling, and a wide operating temperature range of -40 °C to 70 °C make this access point equally suited to controlled indoor deployments and more challenging environments. The unit ships complete with a 48 V power adapter, Gigabit PoE injector, and all mounting hardware required for ceiling installation.

Key features & benefits

• Wi-Fi 6 Dual-Band Radios — Separate 2.4 GHz (802.11b/g/n/ax, up to 574 Mbit/s, 2-chain, 6 dBi) and 5 GHz (802.11a/n/ac/ax, up to 1200 Mbit/s, 2-chain, 5.5 dBi) radios operate simultaneously for an AX1800 combined data rate, serving a wide mix of legacy and modern client devices.
• Quad-Core ARM 64-Bit Processing with IPsec Acceleration — The IPQ-6010 quad-core CPU scales from 864 to 1800 MHz and includes dedicated IPsec hardware acceleration, enabling encrypted tunneling without sacrificing wireless throughput—critical for secure enterprise and hospitality deployments.

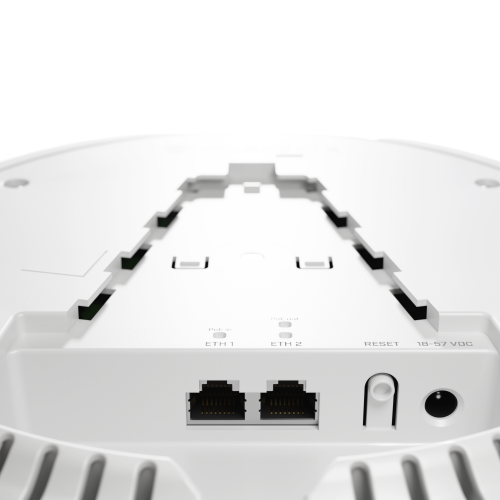

• Dual Gigabit Ethernet with PoE In and PoE Out — Two 10/100/1000 Ethernet ports support uplink flexibility. PoE-in accepts 802.3af/at (18–57 V) via DC jack or PoE injector, while Ether2 provides passive PoE out (up to 57 V) to power a downstream device such as a camera or secondary access point.
• RouterOS v7 License 4 on 1 GB RAM — Running MikroTik's RouterOS v7 with a License 4 entitlement, the access point supports advanced routing, firewall, VLAN, and wireless management features out of the box, integrating naturally into existing MikroTik-managed network infrastructures.
• Wide Thermal Range and Passive Cooling — Passive thermal management combined with a tested ambient operating range of -40 °C to 70 °C and an MTBF of approximately 200,000 hours at 25 °C underpin long-term reliability in both climate-controlled and uncontrolled installations.
• Complete Installation Kit Included — Every unit ships with a 48 V 0.95 A power adapter, Gigabit PoE injector, ceiling mount, mounting bracket, and fastening hardware, reducing on-site installation time and eliminating the need for separately sourced accessories.
