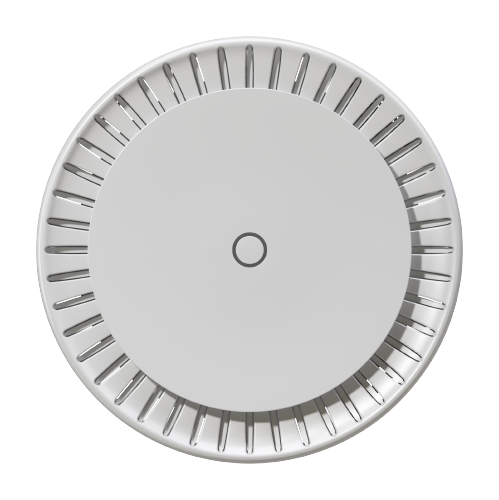

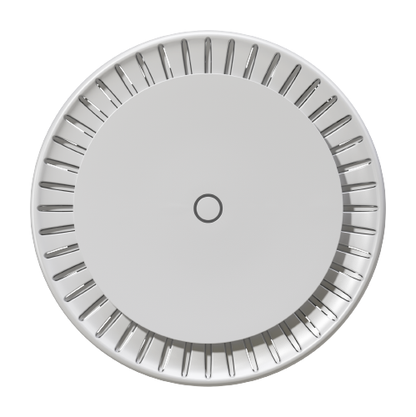

MikroTik cAPGi-5HaxD2HaxD-US WiFi 6 Dual-Band Wireless Access Point AX1800 PoE

The MikroTik cAPax (cAPGi-5HaxD2HaxD-US) is a dual-band Wi-Fi 6 ceiling access point engineered for high-density environments such as offices, hotels, and shopping centers. Powered by a quad-core ARM 64-bit IPQ-6010 processor running at up to 1800 MHz with 1 GB of RAM, it delivers concurrent AX1800 wireless performance—574 Mbit/s on 2.4 GHz and 1200 Mbit/s on 5 GHz—while running MikroTik RouterOS v7 under license level 4. Two Gigabit Ethernet ports, hardware-accelerated IPsec, passive cooling, and a broad operating temperature range of -40°C to 70°C make this unit a capable, long-term infrastructure investment. A 48 V power adapter, Gigabit PoE injector, ceiling mount, mounting bracket, and fastening set are all included in the box.

Key features & benefits

• Wi-Fi 6 Dual-Band Radio — Simultaneous 802.11ax operation on both 2.4 GHz (QCN-5022, 2×2, up to 574 Mbit/s, 6 dBi antenna gain) and 5 GHz (QCN-5052, 2×2, up to 1200 Mbit/s, 5.5 dBi antenna gain) delivers AX1800 aggregate throughput suited to dense client environments.
• Quad-Core ARM 64-bit Platform — The IPQ-6010 SoC provides four CPU cores scaling from 864 to 1800 MHz automatically, paired with 1 GB of RAM and 128 MB NAND storage, giving RouterOS v7 the headroom to handle complex routing, firewall, and CAPsMAN wireless management tasks.
• Hardware IPsec Acceleration — Dedicated IPsec hardware acceleration offloads encryption processing from the main CPU cores, enabling secure site-to-site or remote-access VPN tunnels without sacrificing throughput on a busy access point.

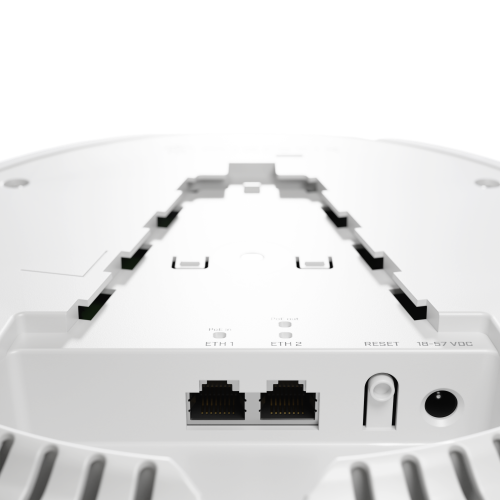

• Dual Gigabit Ethernet with PoE In and PoE Out — Two 10/100/1000 Ethernet ports support 802.3af/at PoE input (18–57 V) on Ether1 and passive PoE output up to 57 V on Ether2, allowing a downstream device such as a small switch or IP camera to be powered directly from the access point.
• Flexible Power Options — Accepts power via an 802.3af/at PoE input or a DC jack (18–57 V), and ships with a 48 V 0.95 A power adapter and a Gigabit PoE injector, providing installation flexibility without additional procurement.
• Wide Tested Ambient Temperature Range — Rated and tested from -40°C to 70°C with passive cooling and an MTBF of approximately 200,000 hours at 25°C, the cAPax is built for continuous, unattended operation in variable-temperature installations.
• RouterOS v7 with CAPsMAN Support — Runs MikroTik RouterOS v7 under license level 4, enabling centralized wireless management via CAPsMAN, advanced QoS, firewall, and routing features from a single, unified interface across multi-AP deployments.
• Ceiling-Ready Form Factor — The 228 × 48 mm low-profile housing includes a ceiling mount, mounting bracket, and fastening set in the box, simplifying clean, professional installations in commercial spaces without requiring separate accessory orders.
