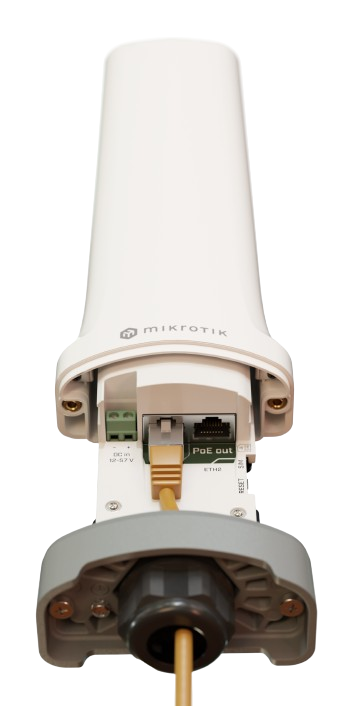

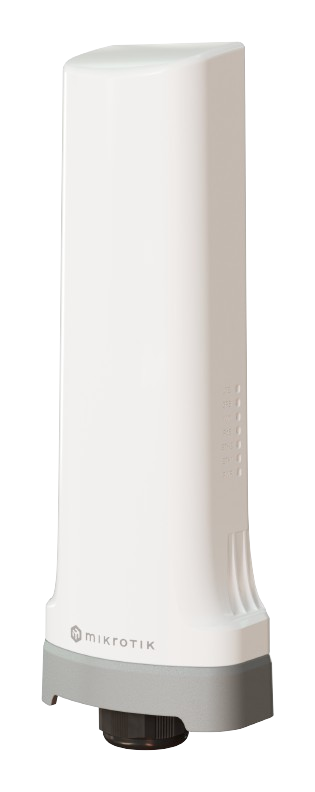

MikroTik CME22-2n-BG77 CAT-M NB-LTE WiFi 4 PoE Gateway

The MikroTik CME22-2n-BG77 CME Gateway is a rugged, low-cost IoT and M2M edge router designed to bridge legacy Ethernet devices to a CAT-M narrowband LTE mobile network. Built around a QCA9531 MIPSBE processor running RouterOS v7 (License Level 4), it delivers reliable cellular connectivity for applications where wired infrastructure is impractical — remote utility metering, agricultural equipment monitoring, environmental sensing, and distributed industrial automation. A built-in GNSS receiver enables location-aware scripting and asset-tracking workflows directly within RouterOS. The enclosure carries an IP66 ingress-protection rating, making it suitable for outdoor, damp, or dusty deployments. Flexible powering via 802.3af/at PoE-in, a wide-range 2-pin DC terminal, and 802.3af/at PoE-out on the second Ethernet port simplifies installation at remote sites. An integrated single-chain 2.4 GHz Wi-Fi radio allows on-site configuration through the MikroTik smartphone application without requiring a separate management network.

Key features & benefits

• CAT-M / NB-IoT Cellular Modem — The onboard BG77 modem provides narrowband LTE (CAT-M/NB) connectivity, delivering broad network coverage and compatibility with the most cost-effective data plans — ideal for low-bandwidth telemetry and sensor data applications.
• GNSS Location Support — An integrated GNSS receiver allows RouterOS scripting to capture and log periodic location data, enabling asset-tracking and geo-aware automation without additional hardware.
• IP66-Rated Enclosure — Full protection against dust ingress and powerful water jets allows field deployment in demanding environments including damp utility enclosures, outdoor agricultural machinery, and industrial sites.
• Flexible Powering Options — Accepts 802.3af/at PoE-in (18–57 V) or a 2-pin DC terminal (12–57 V), and can simultaneously deliver 802.3af/at PoE-out on Ether2 to power a downstream device — reducing cabling complexity at remote installations.
• Dual 10/100 Ethernet Ports — Two Fast Ethernet ports allow direct connection of legacy wired devices such as meters, PLCs, or sensors, bridging existing infrastructure to cellular backhaul with no additional switch required.
• 2.4 GHz Wi-Fi 4 Radio — A single-chain 802.11b/g/n radio (up to 150 Mbit/s) with 2 dBi antenna gain enables local wireless management via the MikroTik smartphone app, simplifying commissioning in the field.
• RouterOS v7 with MIPSBE Architecture — Powered by a 650 MHz QCA9531 CPU with 64 MB RAM and 16 MB FLASH storage, the unit runs the full RouterOS v7 feature set at License Level 4, supporting scripting, firewall, routing, and remote management capabilities suited to unattended deployments.
• Wide Tested Temperature Range — Rated and tested from -40 °C to 70 °C, the gateway maintains reliable operation across extreme environmental conditions common in outdoor and industrial settings.
