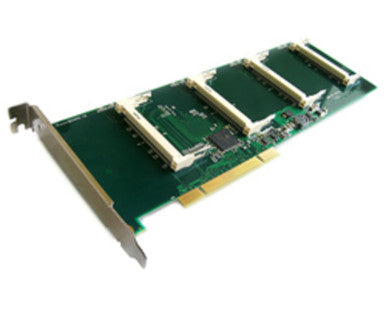

MikroTik IA/MP8 8-Slot miniPCI Adapter Card PCI 2.1

The MikroTik RouterBOARD 18 (IA/MP8) is an eight-slot miniPCI-to-PCI adapter card designed for network builders and system integrators who need to consolidate multiple miniPCI radio or interface cards into a single standard PCI slot. Each of the eight integrated miniPCI slots delivers up to 2.5 W of power at 3.3 V, and every slot is paired with two dedicated status LEDs wired to miniPCI standard pinouts for straightforward diagnostics. The board operates on a standard 5 V PCI bus with an optional 3.3 V configuration available on request (IN/EM4-3.3 variant), and it accepts any PCI 2.1 or higher system slot. Optional TNC punch-out PCI brackets accommodate TNC pigtails for radio cards, while an optional tin shield provides mechanical isolation for two slots. Compatible with MikroTik RouterOS as well as Windows, Linux, and BSD environments, the IA/MP8 is a practical density solution for router, firewall, and wireless infrastructure builds. Note: this adapter is not compatible with SR5 or SR2 400 mW miniPCI cards.

Key features & benefits

• Eight Integrated miniPCI Slots — Accommodates up to eight 3.3 V miniPCI cards simultaneously within a single standard PCI socket, maximizing interface density without consuming additional expansion slots.
• Per-Slot Power Delivery — Each miniPCI slot is independently supplied with up to 2.5 W at 3.3 V, ensuring stable operation for a full complement of miniPCI cards.
• Dual Status LEDs per Slot — Two LEDs are connected to each miniPCI slot in accordance with miniPCI standards, giving administrators at-a-glance visibility into individual card status.
• Flexible PCI Voltage Support — Operates natively on a standard 5 V PCI bus; a 3.3 V option is available by requesting the IN/EM4-3.3 configuration, broadening compatibility with different motherboard environments.
• Optional TNC Pigtail Brackets — PCI brackets with TNC punch-outs are available, enabling clean external antenna connections for installed radio cards without chassis modifications.
• Optional Tin Shield Mounting — A tin shield mounting option is available for two slots, providing mechanical protection and potential RF isolation between adjacent miniPCI cards.
• Broad OS Compatibility — Functions transparently under MikroTik RouterOS, Windows, Linux, and BSD, integrating into a wide range of network operating environments without driver complexity.
