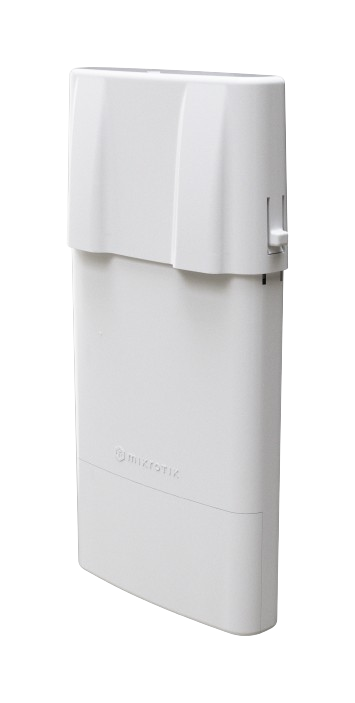

MikroTik L11UG-5HaxD-NB-US Wi-Fi 6 5GHz 2400Mbps Wireless Access Point

The MikroTik NetBox 5 ax (L11UG-5HaxD-NB-US) is a 5 GHz Wi-Fi 6 (802.11ax) outdoor wireless platform engineered for demanding professional deployments. Running on a dual-core IPQ-5010 ARM processor at 800 MHz with 256 MB of RAM and 128 MB NAND storage, it delivers up to 2400 Mbit/s wireless throughput over its dual-chain 5 GHz radio. RouterOS v7 at License Level 4 provides the full depth of MikroTik's routing, firewall, and wireless management capabilities, making this unit equally at home as a wireless ISP CPE, a point-to-point building link, or a point-to-multipoint base station. Passive PoE input (18–28 V) simplifies outdoor installation, while RP-SMA female connectors enable custom antenna configurations tailored to specific link distances and coverage patterns. The weather-resistant enclosure is rated for operation from -40 °C to +70 °C, ensuring consistent performance across harsh outdoor environments. A USB 2.0 port with power reset adds peripheral flexibility for modems or storage devices. Built-in beeper, signal and status LEDs, and onboard voltage and temperature sensors give technicians clear real-time visibility into device health without requiring remote access.

Key features & benefits

• Wi-Fi 6 (802.11ax) 5 GHz Radio — Dual-chain 802.11a/n/ac/ax radio using the QCN-6102 chipset delivers a maximum data rate of 2400 Mbit/s, bringing the efficiency and capacity improvements of Wi-Fi 6 to outdoor fixed-wireless and CPE applications.
• Dual-Core ARM Processor — The IPQ-5010 dual-core ARM CPU running at 800 MHz, paired with 256 MB RAM and 128 MB NAND storage, provides the headroom needed to run RouterOS v7's advanced feature set without bottlenecks under real-world traffic loads.

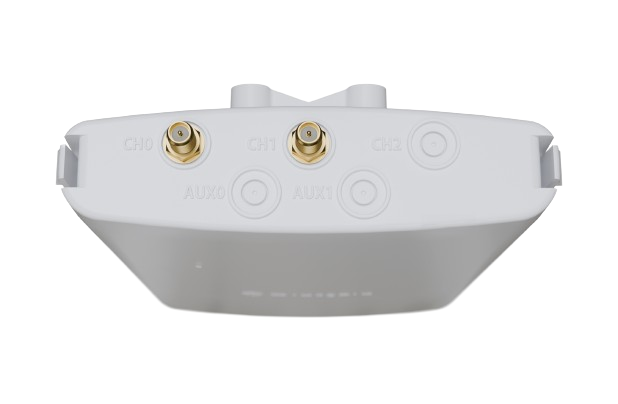

• Flexible RP-SMA Antenna Connectors — RP-SMA female (outside thread) connectors allow network engineers to pair the radio with sector, directional, or high-gain antennas, optimizing the link budget for each specific deployment scenario.
• Passive PoE Power Input — Accepts passive PoE at 18–28 V with a nominal 24 V / 1.2 A adapter, keeping maximum power consumption at 15 W and enabling straightforward single-cable installation on rooftops, towers, and building exteriors.

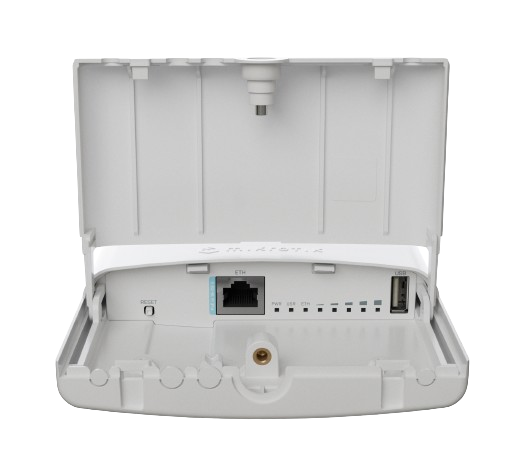

• Gigabit Ethernet Port — A single 10/100/1000 Mbps Ethernet port ensures the wired backhaul connection does not become a throughput bottleneck, supporting full Gigabit speeds to the customer premises router or network switch.
• RouterOS v7 License Level 4 — MikroTik RouterOS v7 at License Level 4 provides access to enterprise-grade routing protocols, firewall, bandwidth management, and wireless tools, giving operators precise control over every aspect of the deployment.
• Wide Operating Temperature Range — Rated from -40 °C to +70 °C, the unit is built to withstand extreme heat, cold, and the thermal cycling common in outdoor installations, reducing maintenance overhead over the life of the deployment.
• USB 2.0 Port with Power Reset — A USB Type-A port supporting up to 1.5 A with USB Power Reset capability allows attachment of LTE modems, storage devices, or other USB peripherals directly to the unit, extending its functionality without additional hardware.
• Integrated Diagnostics — Onboard beeper, signal and status LEDs, and voltage and temperature sensors provide immediate local feedback during installation and troubleshooting, reducing time spent on-site for commissioning and fault diagnosis.
• Up to 128 Concurrent Clients — The radio interface supports up to 128 concurrent client associations, making it suitable for point-to-multipoint base station roles serving dense subscriber environments.
