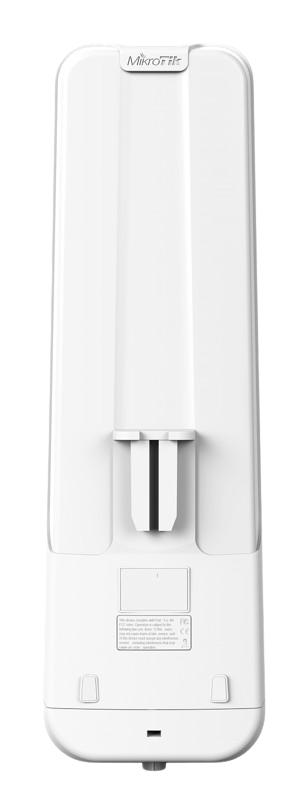

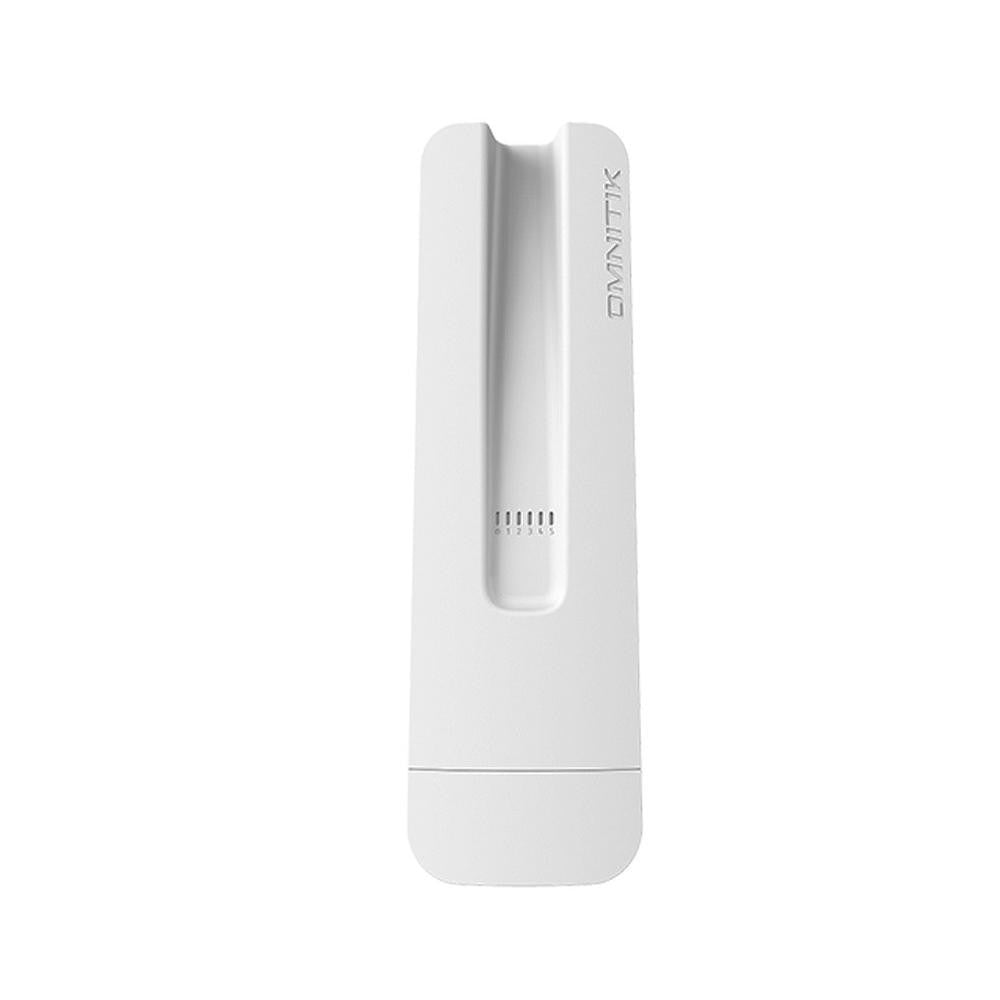

MikroTik OmniTik 5 ac US 802.11ac Wireless Access Point 867Mbps 5GHz

The MikroTik OmniTIK 5 ac (RBOmniTikG-5HacD-US) is a weatherproof outdoor 802.11a/n/ac access point and CPE engineered for 5 GHz sector and point-to-multipoint deployments. It combines five Gigabit Ethernet ports, dual integrated 7.5 dBi omnidirectional antennas, and a 720 MHz single-core CPU with 128 MB RAM into a passively cooled, pole-mountable enclosure rated for operation from -40 °C to 70 °C. The US version is factory-locked to 5170–5250 MHz and 5725–5835 MHz and ships with a power supply, passive PoE injector, and mounting hardware, making it a self-contained solution for wireless ISPs, campus distribution networks, and outdoor hotspot infrastructure. Running MikroTik RouterOS (License Level 4), the unit delivers a maximum wireless data rate of 867 Mbit/s while remaining backward-compatible with 802.11a/n client devices.

Key features & benefits

• 802.11ac Dual-Chain 5 GHz Radio — The QCA9892 wireless chipset supports 802.11a/n/ac (Wi-Fi 5) with two spatial streams, delivering up to 867 Mbit/s and maintaining backward compatibility with 802.11a/n CPE hardware already in the field.
• Dual Integrated 7.5 dBi Omni Antennas — Two built-in 5 GHz omnidirectional antennas provide 360-degree horizontal coverage, eliminating the need for external antenna procurement and simplifying pole-top installation.
• Five Gigabit Ethernet Ports — A full complement of five 10/100/1000 Ethernet ports, switched via the QCA8337 chip, supports local network distribution directly from the access point without requiring an additional switch.
• Wide-Range Passive PoE Input — Accepts passive PoE at 12–57 V DC on a single DC input, providing installation flexibility across a broad range of power sources and cable runs while keeping maximum draw to 14 W.
• Weatherproof Outdoor Enclosure — The passively cooled, sealed enclosure is validated across an ambient temperature range of -40 °C to 70 °C, suitable for year-round outdoor deployment in demanding climates.
• RouterOS Level 4 with USB Expansion — Ships with MikroTik RouterOS License Level 4, offering advanced routing, firewall, and management capabilities. A USB Type-A port with USB Power Reset and up to 1 A output adds peripheral and modem connectivity options.
• US Frequency-Locked Compliance — Factory-locked to 5170–5250 MHz and 5725–5835 MHz for regulatory compliance in the United States. This lock is permanent and ensures the unit operates within FCC-approved bands out of the box.
• High Reliability Passive Cooling — With no moving parts and an MTBF of approximately 200,000 hours at 25 °C, the OmniTIK 5 ac is designed for unattended, long-term outdoor operation with minimal maintenance requirements.
