PRODUCT SPECIFICATIONS

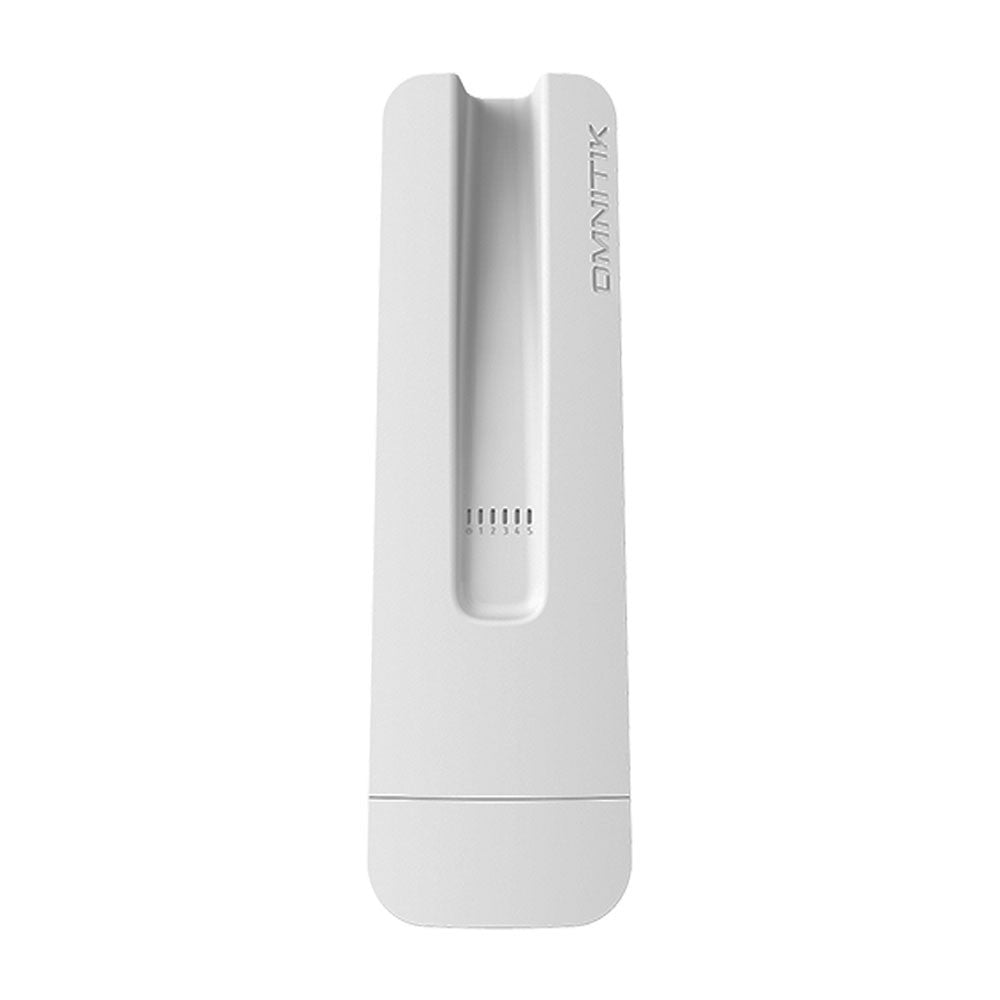

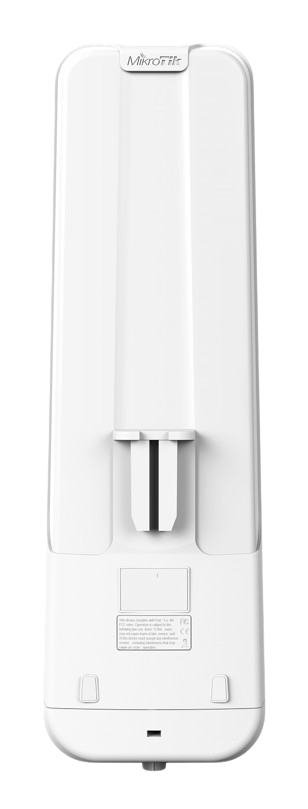

MikroTik OmniTIK 5 PoE ac US Outdoor 5GHz WiFi 5 Access Point with PoE-Out
The MikroTik OmniTIK 5 PoE ac US is a rugged outdoor 5GHz wireless access point designed for WISP, campus, hotspot, surveillance, and outdoor network deployments. Built with integrated 7.5 dBi 5GHz omni antennas, dual-chain 802.11ac wireless, and five Gigabit Ethernet ports, it provides wide outdoor coverage and flexible wired connectivity from a single weatherproof device.
Powered by a 720 MHz QCA9557 CPU with 128 MB RAM, the OmniTIK 5 PoE ac US runs RouterOS Level 4, giving installers and network administrators access to advanced routing, bridging, firewall, VLAN, hotspot, monitoring, and wireless management features.
The device supports passive PoE input and can provide PoE-out on Ether2 through Ether5, allowing compatible access points, CPE devices, cameras, or other PoE equipment to be powered directly from the OmniTIK. This reduces the need for extra power adapters and simplifies outdoor installations.
The US version is factory locked for operation in the 5170-5250 MHz and 5725-5835 MHz frequency ranges. This regulatory lock cannot be removed.
Key Features
- Outdoor 5GHz WiFi 5 access point with 802.11a/n/ac support
- Integrated dual-chain 7.5 dBi 5GHz omni antennas
- Up to 867 Mbps wireless data rate on 5GHz
- 5 x Gigabit Ethernet ports
- PoE-out support on Ether2–Ether5
- Passive PoE input, 12–57V
- Supports 802.3af/at PoE-out when powered with 48–57V input
- 720 MHz QCA9557 CPU
- 128 MB RAM and 16 MB flash storage
- RouterOS Level 4 license included
- USB Type-A port with USB power reset
- Weatherproof IP54 outdoor enclosure
- Passive cooling for silent operation
- Includes power adapter, PoE injector, IEC cord, pole mount bracket, and metal ring
Outdoor 5GHz Wireless Coverage
The OmniTIK 5 PoE ac US is built for outdoor wireless coverage using integrated omni-directional antennas. Its dual-chain 5GHz 802.11ac radio supports high-speed wireless connections while remaining backward compatible with 802.11a/n CPE devices.

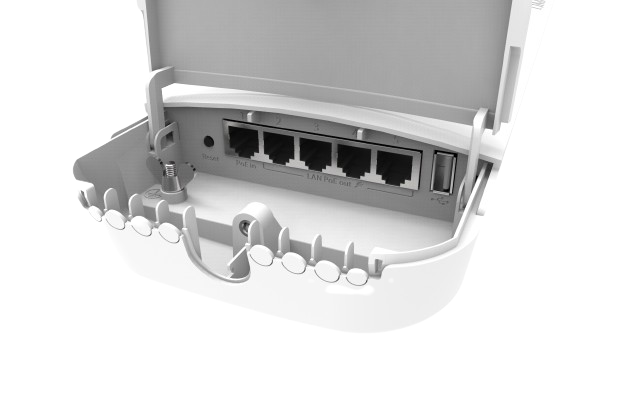

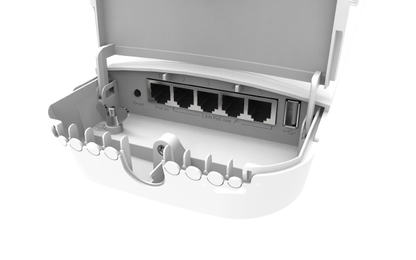

Gigabit Ethernet and PoE-Out Flexibility
With five Gigabit Ethernet ports, the OmniTIK 5 PoE ac US can act as an outdoor wireless access point and distribution node. Ports Ether2 through Ether5 can power compatible PoE devices using the same voltage supplied to the unit. When powered with 48–57V input, it can power compatible 802.3af/at Mode B devices.
RouterOS Control for Outdoor Networks
Running MikroTik RouterOS, the OmniTIK supports advanced networking features including bridging, routing, firewall rules, VLANs, hotspot services, bandwidth management, monitoring, and automation. This makes it useful for WISP deployments, outdoor hotspots, surveillance backhaul, and managed wireless networks.
Ideal Applications
- WISP outdoor access point deployments
- 5GHz hotspot and campus wireless networks
- Outdoor surveillance networks
- Wireless CPE aggregation
- Outdoor PoE distribution for compatible devices
- Industrial yards, warehouses, farms, and remote sites
- RouterOS-managed outdoor wireless networks
Technical Description
- Specifications
- Product code: RBOmniTikPG-5HacD
- Architecture: MIPSBE
- CPU: QCA9557
- CPU core count: 1
- CPU nominal frequency: 720 MHz
- Switch chip model: QCA8337
- Dimensions: 416 x 129 x 58 mm
- RouterOS license: 4
- Operating System: RouterOS
- Size of RAM: 128 MB
- Storage size: 16 MB
- Storage type: FLASH
- MTBF: Approximately 200'000 hours at 25C
- Tested ambient temperature: -40°C to 70°C
- Powering
- Number of DC inputs: 1 (PoE-IN)
- Max power consumption: 66 W
- Max power consumption without attachments: 18 W
- Cooling type: Passive
- PoE in: Passive PoE
- PoE in input Voltage: 12-57 V
- PoE-out
- PoE-out ports: Ether2-Ether5
- PoE out: 802.3af/at
- Max out per port output (input 18-30 V): 1 A
- Max out per port output (input 30-57 V): 450 mA
- Max total out (A): 2 A
- Wireless specifications
- Wireless 5 GHz Max data rate: 867 Mbit/s
- Wireless 5 GHz number of chains: 2
- Wireless 5 GHz standards: 802.11a/n/ac
- Antenna gain dBi for 5 GHz: 7.5
- Wireless 5 GHz chip model: QCA9892
- Wireless 5 GHz generation: Wi-Fi 5
- Ethernet
- 10/100/1000 Ethernet ports: 5
- Peripherals
- Number of USB ports: 1
- USB Power Reset: Yes
- USB slot type: USB type A
- Max USB current (A): 1
- Included Accessories

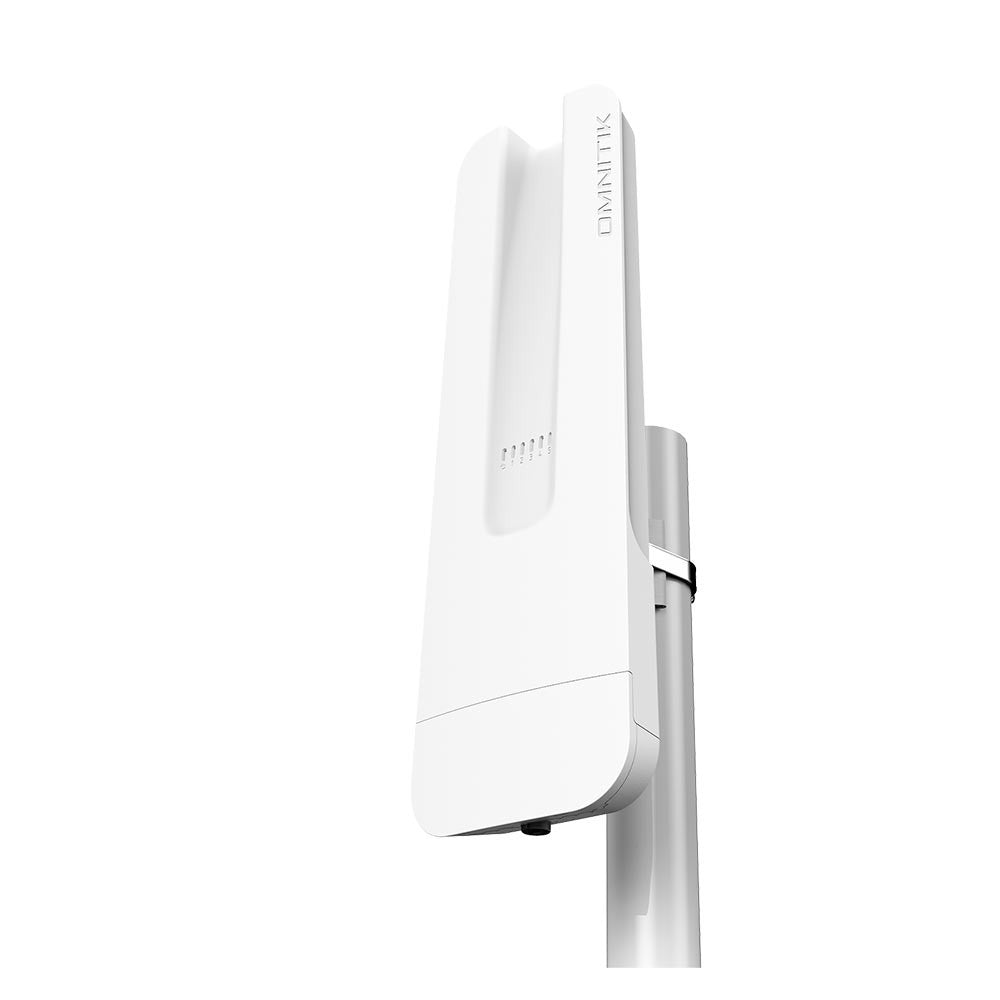

- Pole mounting bracket
- Metal ring
- Gigabit PoE injector
- IEC power cord
- 28V 2.57A power adapter
