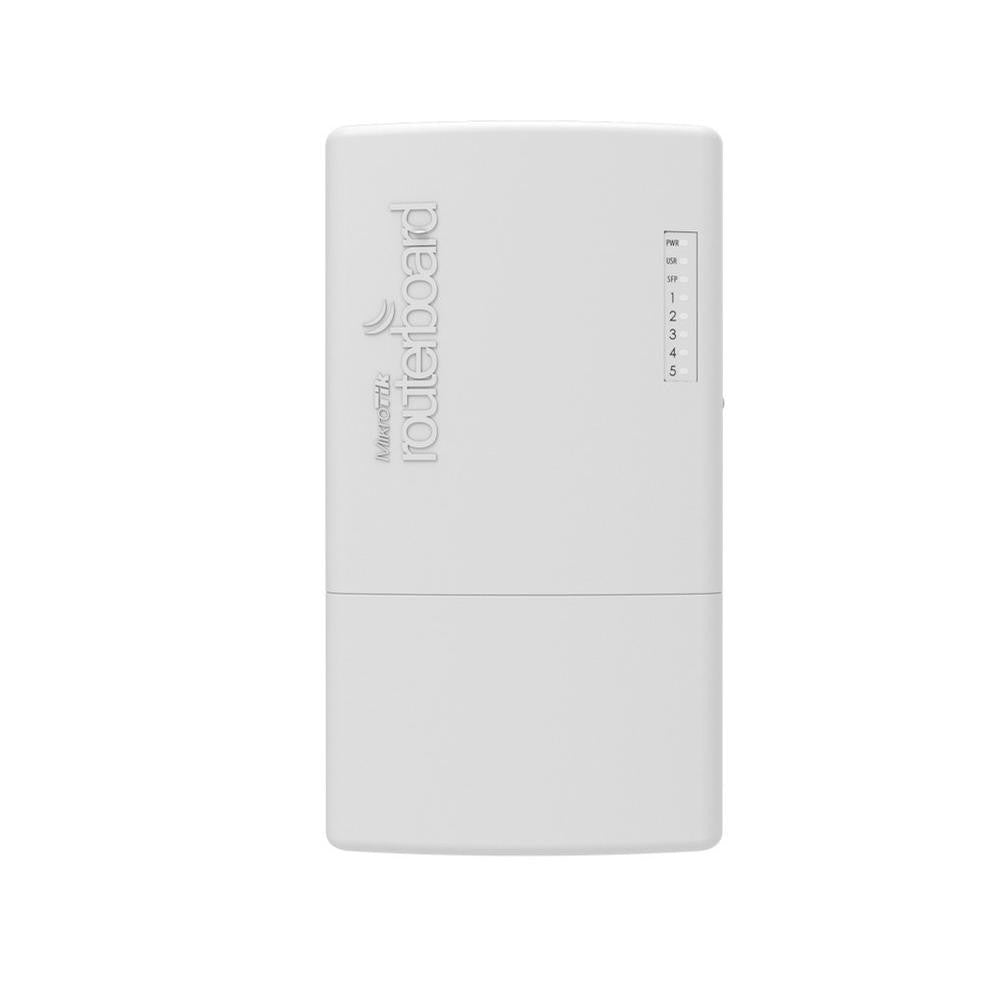

MikroTik PowerBox Pro RB960PGS-PB Outdoor Router, 5x Gigabit, 4x PoE Out, SFP

MikroTik · Routers and Switches

MikroTik PowerBox Pro RB960PGS-PB Outdoor Router, 5x Gigabit, 4x PoE Out, SFP

Manufacturer part number
RB960PGS-PB
EhubAmerica SKU
PowerBox Pro
  • 5x 1 GbE RJ45, 4 PoE out
  • Passive PoE in or DC jack
  • Outdoor
$103.91

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The MikroTik PowerBox Pro (RB960PGS-PB) is an outdoor router in a weatherproof case for towers and other outdoor sites, with five Gigabit Ethernet ports, four of them with 802.3af/at PoE out, and an SFP port for fiber. It runs RouterOS (license level 4) on an 800 MHz QCA9557 CPU with 128 MB RAM.

The unit accepts passive PoE in or a DC jack, both 12 to 57 V, and can power PoE devices on Ether2 to Ether5 with up to 1 A per port at low voltage and 2 A total. Maximum draw is 54 W with attachments. In MikroTik tests it routes about 1,966 Mbps at 1518-byte packets in fast path and about 906 Mbps with 25 IP filter rules, and it is tested for -40 to 70 °C ambient.

A 24 V 2.5 A power adapter with IEC cord, a Gigabit PoE injector, a K-27 DIN mount and a metal ring are included.

  • Best for: tower and outdoor sites that need a router to power several PoE devices.
  • System fit: MikroTik RouterOS, license level 4; 802.3af/at PoE out on four ports; SFP port for a fiber uplink.
  • Important to know: PoE out is limited to 2 A total across Ether2 to Ether5 (450 mA per port at high voltage); SFP modules are not included.

Why teams choose it

Built for reliable networks

  • Four PoE outputs

    802.3af/at PoE out on Ether2 to Ether5.

  • Fiber ready

    SFP port for an optical uplink.

  • Wide input range

    passive PoE in or DC jack at 12 to 57 V.

  • Outdoor case

    weatherproof enclosure tested from -40 to 70 °C.

Specifications

Technical specifications

General
Brand MikroTik
Model RB960PGS-PB
Product Name PowerBox Pro
Device Type Outdoor router with PoE out
Form Factor Outdoor
Interfaces
Ethernet Ports 5x 1 GbE RJ45, 4 PoE out
SFP Ports 1x SFP
Performance
CPU QCA9557, 1 core, 800 MHz, MIPSBE
Switch Chip QCA8337
RAM 128 MB
Storage 16 MB flash
Routing Throughput About 1,966 Mbps at 1518 bytes, fast path
Routing, 25 IP Filter Rules About 906 Mbps at 1518 bytes
Layer L3
Power
Power Method Passive PoE in or DC jack
Input Voltage 12 to 57 V
PoE Standard 802.3af/at out
PoE Out Voltage Input voltage, passive or 802.3af/at
PoE Out Ports Ether2 to Ether5
PoE Current Limit 1 A low voltage, 450 mA high voltage, per port
PoE Total Output 2 A
Max Power Consumption 54 W; 6 W without attachments
Cooling Passive
Physical
Dimensions 125 x 52 x 225 mm
Environmental
Operating Temperature -40 to 70 °C (tested ambient)
MTBF About 200,000 hours at 25 °C
Software and Management
Operating System RouterOS
RouterOS License Level 4
Monitoring PCB temperature, voltage
Listings and Approvals
Certifications CE, EAC, RoHS

In the box

  • 24 V 2.5 A power adapter
  • IEC cord
  • Gigabit PoE injector
  • K-27 DIN mount
  • Metal ring
