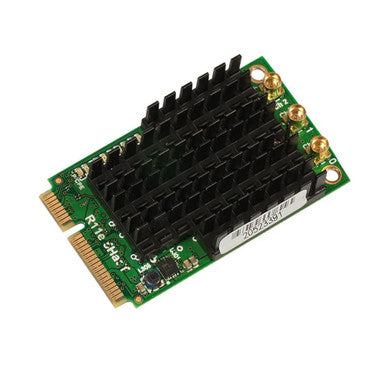

MikroTik R11e-5HacT Wi-Fi 5 miniPCI-e Card 1.3Gbps 802.11ac

The MikroTik R11e-5HacT is a triple-chain 802.11ac (Wi-Fi 5) miniPCI-e wireless card engineered for demanding 5 GHz deployments where raw throughput and installation flexibility are priorities. Built around the QCA9880 chipset, it delivers up to 1.3 Gbps data rate using 3x3 MIMO architecture and is compatible with RouterBOARD platforms equipped with a miniPCI-e slot. The card covers a broad 4920–6100 MHz frequency range and supports 802.11a/n/ac standards, making it suitable for both point-to-multipoint access and backhaul applications. Onboard LED indicators surface wireless mode, connection status, TX/RX activity, and signal strength directly on the card itself, simplifying physical installation and antenna alignment in the field. Rated for operation from -40°C to 70°C and carrying FCC and IC certifications, the R11e-5HacT is appropriate for both indoor and outdoor enclosure installations.

Key features & benefits

• Triple-Chain 802.11ac MIMO — A 3x3 MIMO architecture with three independent RF chains enables the full 1.3 Gbps maximum data rate defined by the 802.11ac (Wi-Fi 5) standard, maximizing spectral efficiency on congested 5 GHz networks.
• Broad 5 GHz Frequency Coverage — The 4920–6100 MHz tuning range spans standard UNII bands and extends into frequency segments used in licensed and specialized wireless deployments, providing deployment flexibility across diverse regulatory environments.
• QCA9880 Chipset — The Qualcomm Atheros QCA9880 is the RF engine behind this card, providing a mature, well-supported platform with proven stability under sustained high-throughput loads.
• miniPCI-e Form Factor with 3x MMCX Connectors — The standard miniPCI-e edge connector and three MMCX antenna ports allow integration into any compatible RouterBOARD enclosure without custom cabling, and support a wide range of external antenna configurations.
• Onboard LED Diagnostics — Dedicated LEDs indicate wireless mode, connection status (connected, searching, or disabled), TX and RX activity, and wireless signal strength, enabling technicians to assess radio state and antenna alignment without a laptop or remote session.
• Wide Operating Temperature Range — Tested performance from -40°C to 70°C ensures reliable operation in outdoor enclosures, rooftop installations, and industrial environments subject to thermal extremes.
• Dual-Use Indoor and Outdoor Rating — Officially rated for both indoor and outdoor use, the card integrates into a broad range of enclosure types when paired with appropriate weatherproof housings.
• FCC and IC Certified — Regulatory certifications from both the FCC and Innovation, Science and Economic Development Canada (IC) confirm compliance for commercial deployment across the United States and Canada.
