MikroTik RB1100AHx4 13-Port Gigabit Router 7.5Gbps IPsec

The MikroTik RB1100AHx4 is a purpose-built, rack-mount enterprise router designed for high-throughput network core and distribution roles. Powered by the Annapurna Alpine AL21400 quad-core ARM Cortex-A15 processor running at 1.4 GHz per core, it delivers up to 7.5 Gbit of maximum throughput and up to 2.2 Gbps of IPsec hardware-accelerated encryption using AES128—making it well-suited for secure site interconnects and carrier-grade edge deployments. Thirteen independent Gigabit Ethernet ports provide substantial port density in a compact 1U rackmount chassis, while dual redundant AC and DC power inputs, including -48 V DC telecom power and 802.3at/af PoE-in, ensure the continuity demanded by mission-critical environments. Passive cooling eliminates fan noise and mechanical failure points. Running MikroTik RouterOS License Level 6, the platform offers the full breadth of routing, switching, firewall, and tunneling features expected at this tier of infrastructure.

Key features & benefits

• Quad-Core ARM Processing at 1.4 GHz — The Annapurna Alpine AL21400 CPU provides four Cortex-A15 cores each clocked at 1.4 GHz, enabling up to 7.5 Gbit of maximum routing throughput for demanding network environments.
• IPsec Hardware Acceleration — Dedicated hardware acceleration for IPsec delivers up to 2.2 Gbps of AES128-encrypted throughput, allowing high-speed secure tunnels without burdening the main CPU.

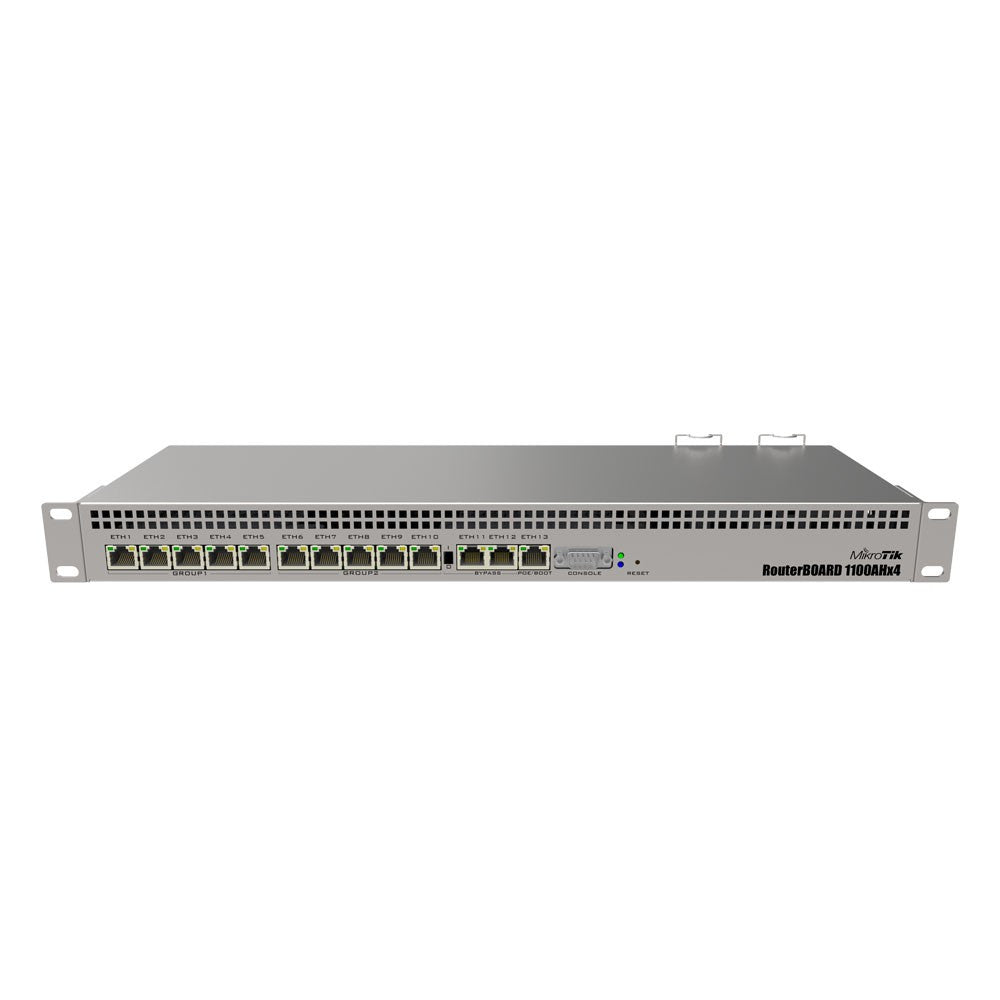

• 13 Gigabit Ethernet Ports — Thirteen 10/100/1000 Mbps Ethernet ports provide extensive connectivity for aggregating multiple uplinks, servers, and downstream switches in a single 1U footprint.

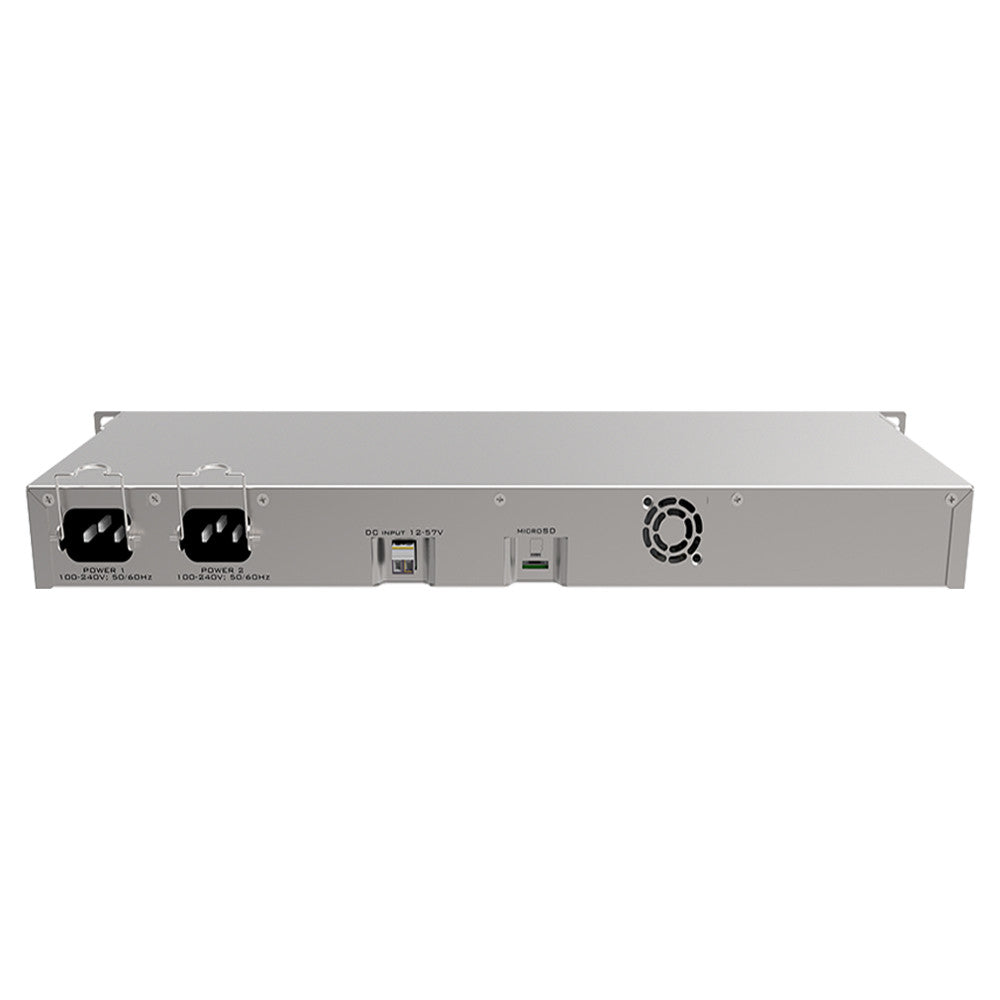

• Dual Redundant Power Supplies — Two AC inputs (100–240 V) and two DC input options—including a 2-pin terminal supporting -48 V and 12–57 V DC telecom power as well as 802.3at/af PoE-in at 20–57 V—provide true power redundancy for high-availability deployments.
• 1U Rackmount Chassis with Passive Cooling — The 443 × 148 × 44 mm steel rackmount enclosure fits standard 19-inch racks and relies entirely on passive cooling, eliminating fan-related noise and failure modes in sensitive or quiet installations.
• RouterOS License Level 6 — Ships with MikroTik RouterOS License Level 6, unlocking the full feature set of the operating system for advanced routing protocols, firewall, VPN, and traffic management configurations.
• Comprehensive Environmental Monitoring — Onboard current monitor, PCB temperature monitor, and voltage monitor allow real-time health visibility, while a beeper and mode button support local diagnostics and recovery operations.
• microSD Expansion Slot — A single microSD slot enables additional storage capacity for logging, configuration backups, or RouterOS package management beyond the 128 MB internal NAND flash.
