MikroTik RB1100AHx4 Dude 13-Port Gigabit Router 7.5 Gbps

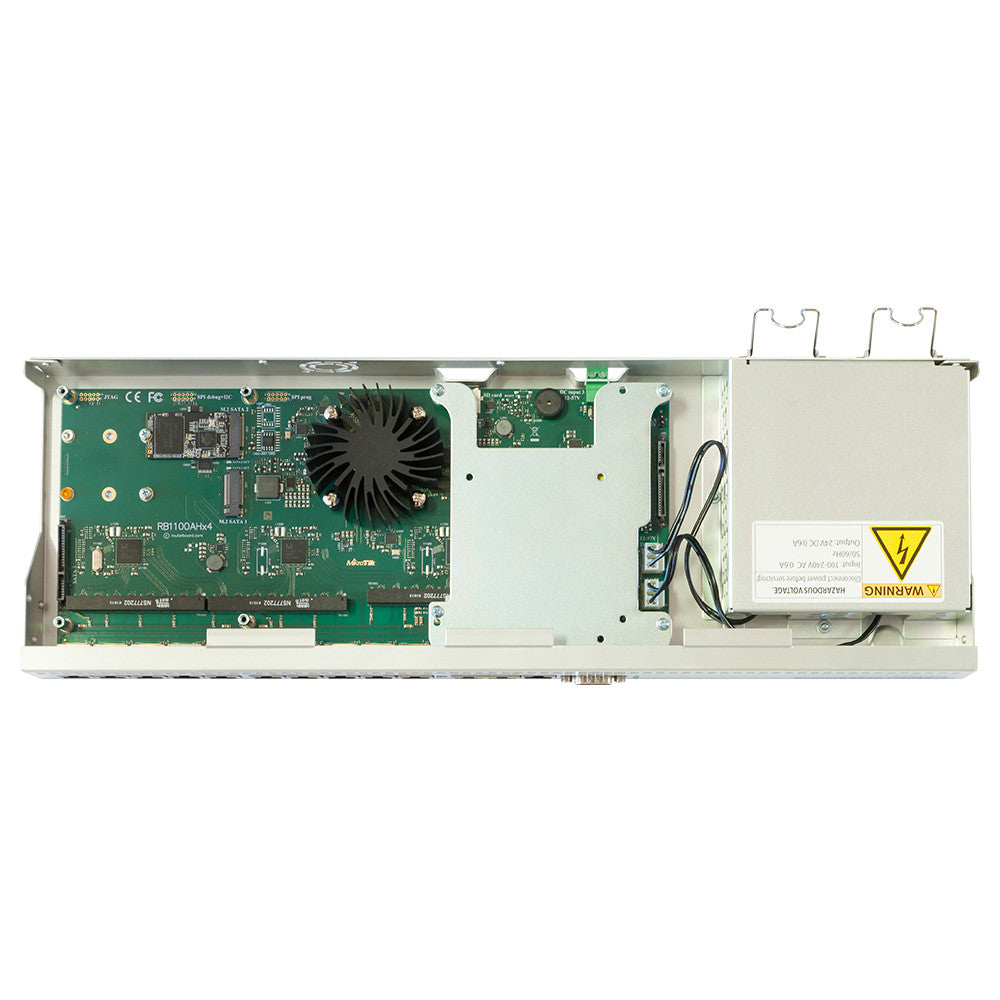

The MikroTik RouterBOARD RB1100AHx4 Dude Edition is a 1U rackmount enterprise router built around the Annapurna Alpine AL21400 quad-core ARM Cortex-A15 processor running at 1.4 GHz per core, delivering a maximum forwarding throughput of up to 7.5 Gbps. Dedicated IPsec hardware acceleration enables encrypted tunnel performance of up to 2.2 Gbps with AES-128, making it well-suited for service providers and enterprise networks that require high-volume secure WAN connectivity. Thirteen Gigabit Ethernet ports, dual redundant power inputs with 802.3at/af PoE-in and -48 V DC telecom power support, and a pre-installed 60 GB M.2 SSD for The Dude network monitoring database or proxy caching combine to deliver a dense, resilient platform in a single rack unit. Running MikroTik RouterOS License Level 6, the unit is engineered for demanding 24/7 deployment environments with an operating temperature range of -40 °C to 70 °C.

Key features & benefits

• Quad-Core ARM Performance — The Annapurna Alpine AL21400 CPU provides four Cortex-A15 cores each clocked at 1.4 GHz, sustaining up to 7.5 Gbps maximum throughput for high-density routing workloads.
• Hardware-Accelerated IPsec — Dedicated IPsec hardware acceleration delivers up to 2.2 Gbps with AES-128 encryption, enabling high-performance secure tunnels without burdening the main CPU.

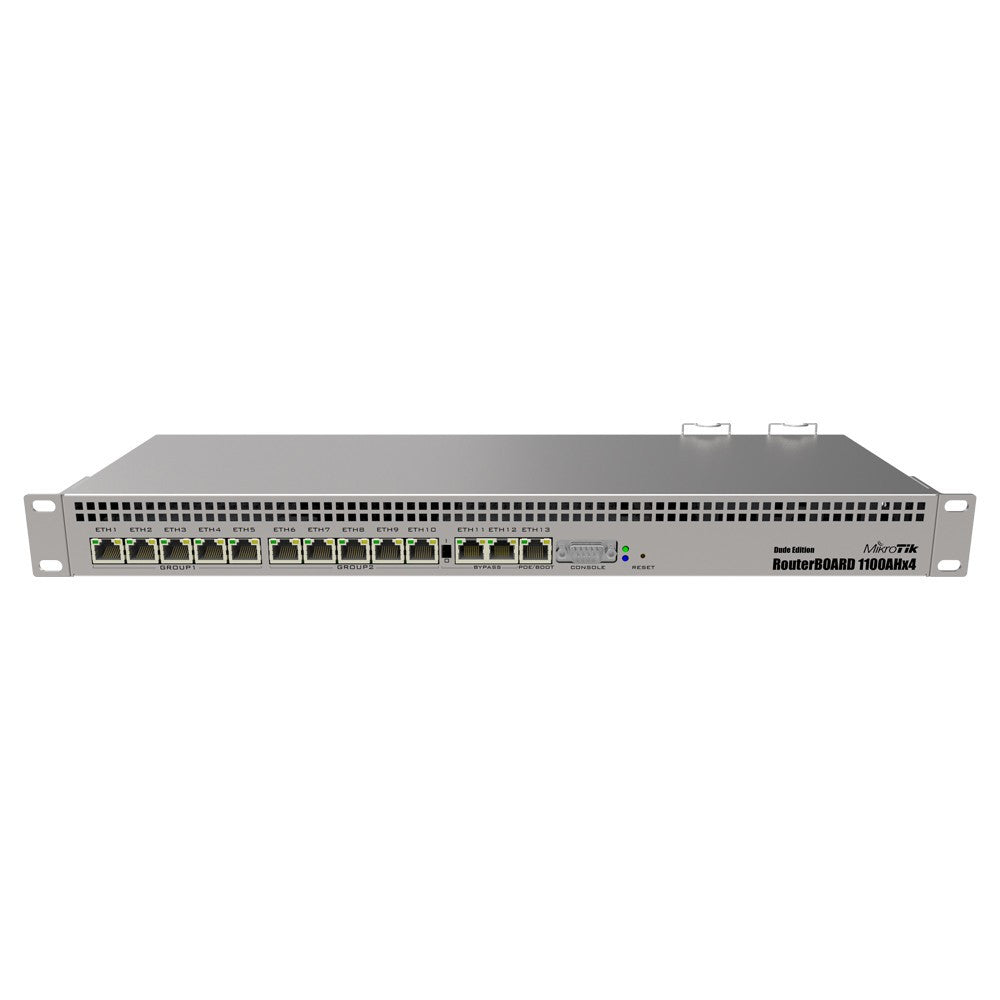

• 13-Port Gigabit Ethernet — Thirteen 10/100/1000 Ethernet ports provide flexible WAN, LAN, and inter-VLAN connectivity in a single 1U chassis.
• Dual Redundant Power Inputs — Two AC inputs and two DC inputs — including -48 V DC telecom power and 802.3at/af PoE-in (20–57 V) — deliver the power redundancy required for carrier and enterprise environments.
• High-Speed Expandable Storage — Two M.2 slots and two SATA3 ports allow significant local storage expansion for The Dude network monitoring database, proxy cache, or other storage-intensive applications; a 60 GB M.2 SSD comes pre-installed.
• Comprehensive Environmental Monitoring — Onboard current monitor, PCB temperature monitor, and voltage monitor give network administrators real-time visibility into platform health.
• Wide Operating Temperature Range — Tested and rated from -40 °C to 70 °C ambient, the unit is suitable for deployment in industrial, telecom, and outdoor-cabinet environments.
• RouterOS License Level 6 — Ships with MikroTik RouterOS at License Level 6, enabling the full feature set including advanced routing protocols, tunneling, queuing, and The Dude server functionality.
