MikroTik · Routers and Switches

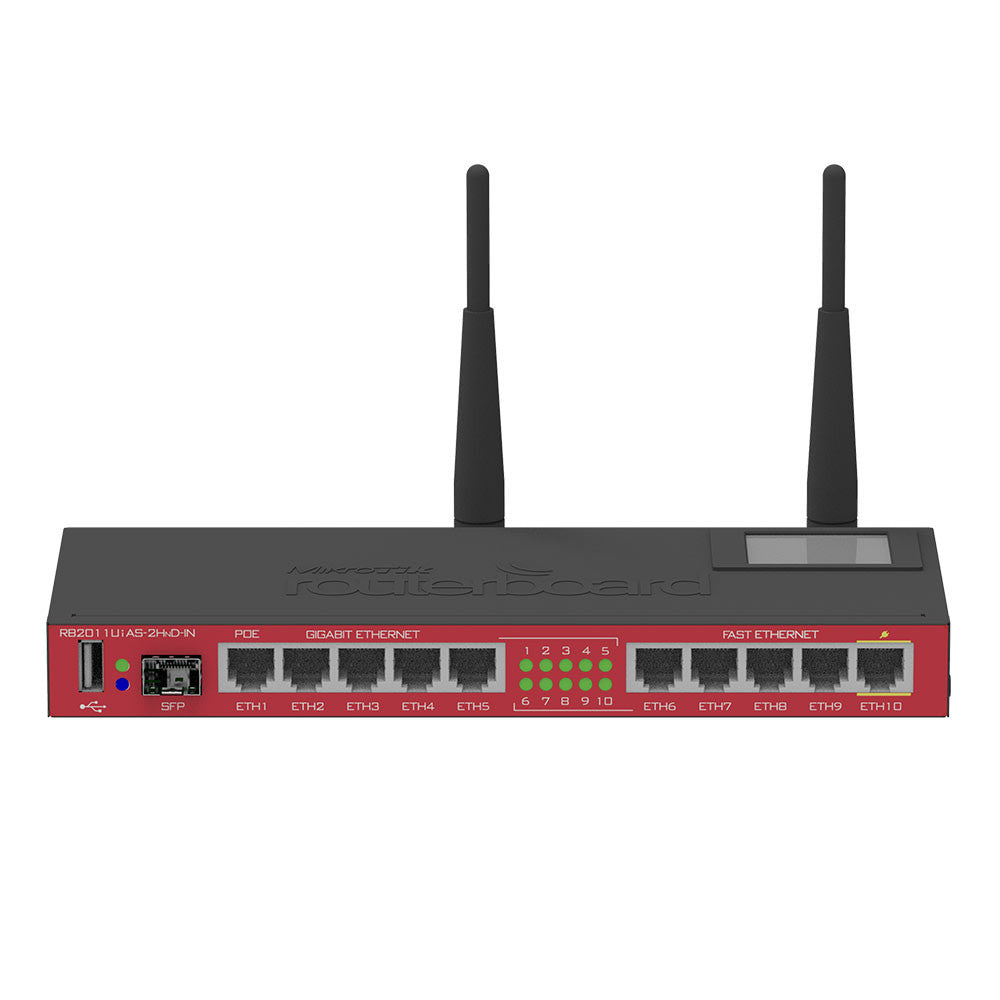

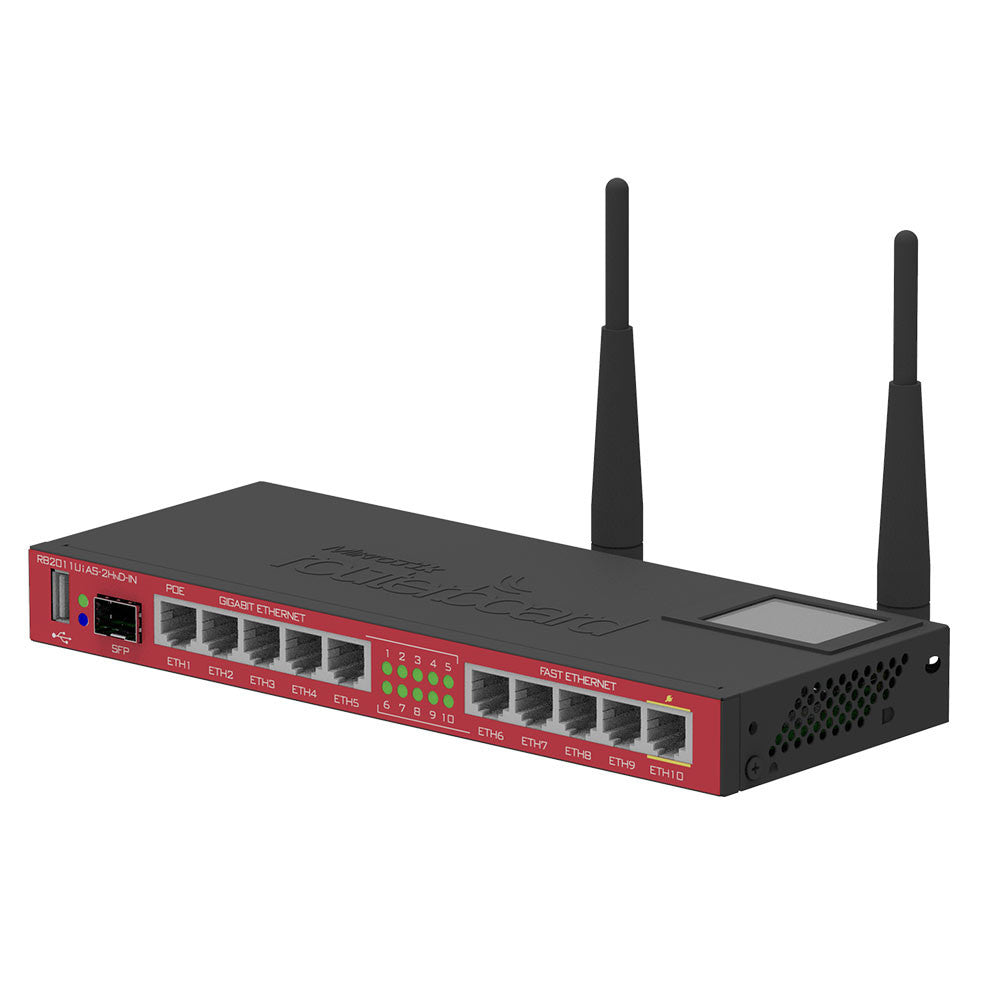

MikroTik RB2011UiAS-2HnD-IN Dual-Band Wireless Router 10-Port Gigabit PoE
- EhubAmerica SKU
- RB2011UiAS-2HnD-IN
- Desktop enclosure with LCD panel
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
The RB2011Ui is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
• Specifications Architecture: MIPSBE
• CPU: AR9344
• CPU core count: 1
• CPU nominal frequency: 600 MHz
• Dimensions: 214mm x 86mm for PCB
• License level: 5
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage size: 128 MB
• Storage type: NAND
• Tested ambient temperature: -40°C to 60°C
• Powering PoE in: Passive PoE
• PoE out: Passive PoE
• PoE in input Voltage: 8-30 V
• Number of DC inputs: 2 (DC jack, PoE-IN)
• DC jack input Voltage: 8-30 V
• Max out per port output (input < 30 V): 510 mA
• Max total out (A): 510 mA
TECHNICAL SPECIFICATIONS
• Brand: MikroTik
• Model: RB2011UiAS-2HnD-IN
• Product Type: Routers and Switches
• Specifications Architecture: MIPSBE
• CPU: AR9344
• CPU core count: 1
• CPU nominal frequency: 600 MHz
• Dimensions: 214mm x 86mm for PCB
• License level: 5
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage size: 128 MB
• Storage type: NAND
• Tested ambient temperature: -40°C to 60°C
• Powering PoE in: Passive PoE
• PoE out: Passive PoE
• PoE in input Voltage: 8-30 V
• Number of DC inputs: 2 (DC jack, PoE-IN)
• DC jack input Voltage: 8-30 V
• Max out per port output (input < 30 V): 510 mA
• Max total out (A): 510 mA
• Max power consumption: 6 W
• Wireless Wireless 2.4 GHz number of chains: 2
• Wireless 2.4 GHz Max data rate: 300 Mbit/s
• Wireless 2.4 GHz standards: 802.11b/g/n
• Antenna gain dBi for 2.4 GHz: 4
• Wireless 2.4 GHz chip model: AR9344
• Ethernet 10/100 Ethernet ports: 5
• 10/100/1000 Ethernet ports: 5
• Fiber SFP DDMI: Yes
• SFP ports: 1
• Peripherals Serial port: RJ45
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| MikroTik RouterBOARD RB2011UiAS-2HnD-IN – Technical Specifications | |
|---|---|
| General | |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU Core Count | 1 |
| CPU Nominal Frequency | 600 MHz |
| RAM | 128 MB |
| Storage | 128 MB NAND |
| Operating System | RouterOS |
| License Level | 5 |
| Physical | |
| Dimensions (PCB) | 214mm x 86mm |
| Form Factor | Desktop enclosure with LCD panel |
| Power & Electrical | |
| PoE In | Passive PoE |
| PoE Out | Passive PoE |
| PoE In Input Voltage | 8–30 VDC |
| DC Jack Input Voltage | 8–30 VDC |
| Number of DC Inputs | 2 (DC jack, PoE-IN) |
| Max Output per Port | 510 mA |
| Max Total Output | 510 mA |
| Max Power Consumption | 6 W |
| Wireless / RF | |
| 2.4 GHz Standards | 802.11b/g/n |
| 2.4 GHz Frequency Range | 2312–2732 MHz (country dependent) |
| 2.4 GHz Chains | 2 |
| 2.4 GHz Max Data Rate | 300 Mbit/s |
| 2.4 GHz Antenna Gain | 4 dBi |
| 2.4 GHz Chip | AR9344 |
| Included Antennas | Two 4 dBi Omni antennas |
| Networking & Connectivity | |
| Fast Ethernet Ports (10/100) | 5 |
| Gigabit Ports (10/100/1000) | Included |
| SFP Cage | Yes (module not included) |
| Serial Port | RJ45 |
| USB Port | Yes |
| Environmental | |
| Operating Temperature | -40°C to 60°C |
| Compatibility | |
| Tested Compatible SFP Modules | S-85DLC05D, S-31DLC20D, S-35/53LC20D (not included) |
| Optional Accessories | RBWMK (wall mount kit) |
