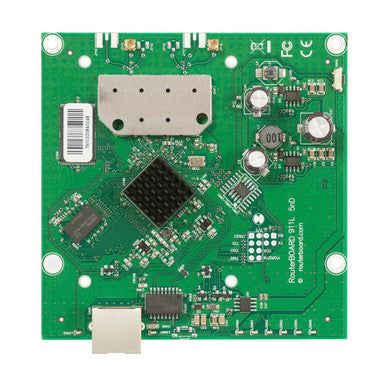

MikroTik RB911-5Hn-US 150Mbps 5GHz WiFi 4 Wireless CPE Router

The MikroTik RB911-5Hn-US is a compact, board-level CPE RouterBOARD designed for building cost-effective customer-premises equipment deployments. Powered by a 600 MHz AR9344 MIPS processor with 64 MB of RAM and 16 MB of FLASH storage, the board integrates a single-chain 5 GHz 802.11a/n wireless radio capable of up to 150 Mbit/s, making it well suited for point-to-point or point-to-multipoint last-mile wireless links. The US version is factory-locked to 5170–5250 MHz and 5725–5835 MHz frequency ranges in compliance with FCC regulations; this lock is permanent and cannot be removed. A single 10/100 Ethernet port with passive PoE input (8–30 V) allows straightforward single-cable installation in outdoor enclosures or third-party housings. The unit runs MikroTik RouterOS License Level 3, providing a capable routing and wireless management feature set. Passive cooling and an operating temperature range of -40 °C to 70 °C support deployment in demanding environmental conditions.

Key features & benefits

• Factory-Locked US Frequency Compliance — The RB911-5Hn-US is permanently restricted to 5170–5250 MHz and 5725–5835 MHz, ensuring out-of-the-box FCC regulatory compliance for US deployments without any additional configuration.
• Integrated Single-Chain 5 GHz 802.11a/n Radio — The onboard AR9344-based 5 GHz radio supports Wi-Fi 4 (802.11a/n) with a single spatial stream and up to 150 Mbit/s data rate, providing a self-contained wireless solution in a minimal board footprint.
• 600 MHz MIPSBE Processor — The AR9344 CPU running at 600 MHz, paired with 64 MB of RAM and 16 MB of FLASH, delivers the processing headroom needed to handle routing, firewall, and wireless management tasks simultaneously.
• Passive PoE Power Input — A single DC input accepts passive PoE at 8–30 V with a maximum consumption of 5 W, simplifying cabling for outdoor and enclosure-based CPE builds.
• Wide Operating Temperature Range — Tested from -40 °C to 70 °C with fully passive cooling, the board is engineered for reliable operation across a broad range of climatic conditions.
• RouterOS License Level 3 — Ships with MikroTik RouterOS Level 3, giving operators access to a proven, feature-rich network operating system for routing, wireless client management, and traffic control.
• Low-Profile CPE Form Factor — At 105 × 105 mm the board is designed to integrate into custom or third-party outdoor enclosures, enabling integrators to build branded, low-cost CPE solutions without redundant hardware.
• Industry Certifications — Carries CE, FCC, IC, EAC, and RoHS certifications, supporting compliant deployment across multiple regulatory jurisdictions.
