MikroTik · Wireless Access Points

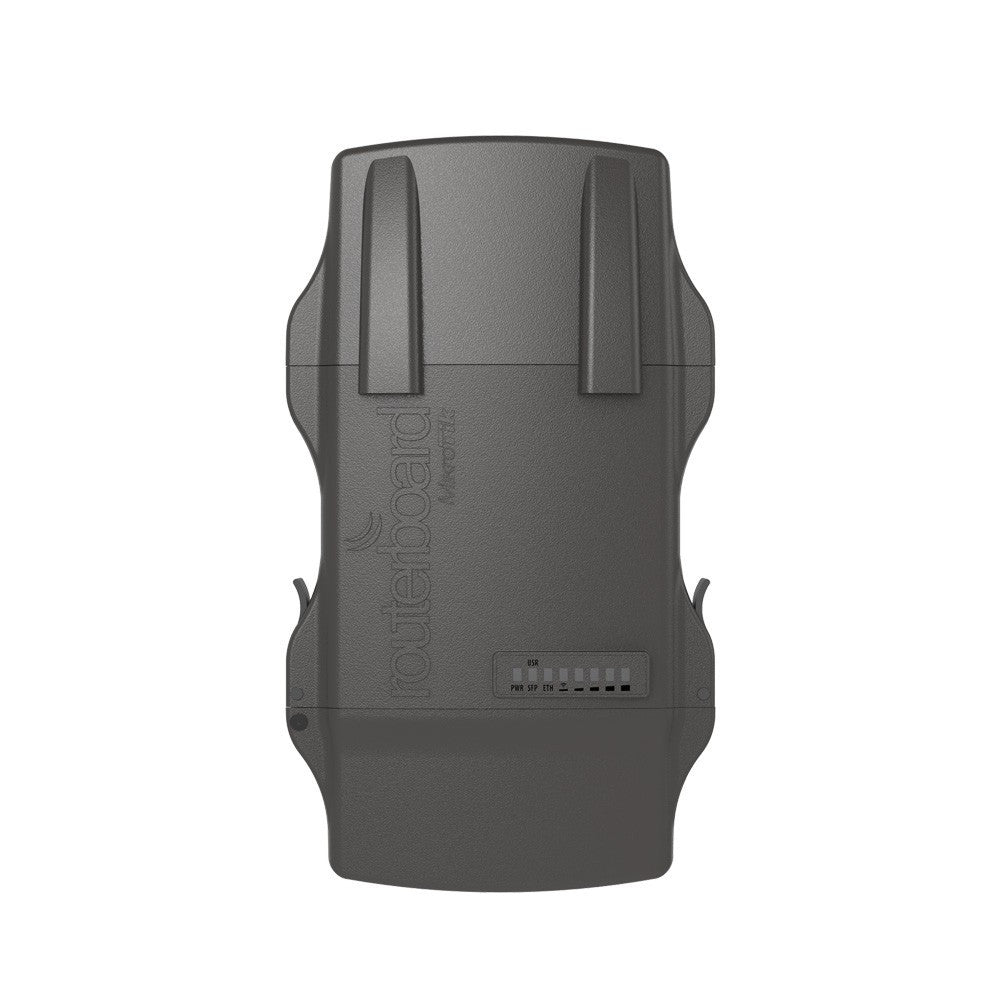

MikroTik RB922UAGS-5HPacD-NM NetMetal 802.11ac Wireless Access Point IP54
- EhubAmerica SKU
- RB922UAGS-5HPacD-NM
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
This NetMetal version is equipped with a miniPCI-express slot a SIM slot for 3G/4G device or additional wireless card, a high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• Specifications Product code: RB922UAGS-5HPacD-NM
• Architecture: MIPSBE
• CPU: QCA9557
• CPU core count: 1
• CPU nominal frequency: 720 MHz
• Dimensions: 143x247x48mm (PCB)
• RouterOS license: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage size: 128 MB
• Storage type: NAND
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• Powering Number of DC inputs: 1 (PoE-IN)
• Max power consumption: 19 W
• Cooling type: Passive
• PoE in: Passive PoE
• PoE in input Voltage: 8-30 V
TECHNICAL SPECIFICATIONS
• Brand: MikroTik
• Model: RB922UAGS-5HPacD-NM
• Product Type: Wireless Access Points
• Specifications Product code: RB922UAGS-5HPacD-NM
• Architecture: MIPSBE
• CPU: QCA9557
• CPU core count: 1
• CPU nominal frequency: 720 MHz
• Dimensions: 143x247x48mm (PCB)
• RouterOS license: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage size: 128 MB
• Storage type: NAND
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• Powering Number of DC inputs: 1 (PoE-IN)
• Max power consumption: 19 W
• Cooling type: Passive
• PoE in: Passive PoE
• PoE in input Voltage: 8-30 V
• Wireless specifications Wireless 5 GHz Max data rate: 867 Mbit/s
• Wireless 5 GHz number of chains: 2
• Wireless 5 GHz standards: 802.11a/n/ac
• Wireless 5 GHz chip model: QCA9882
• Wireless 5 GHz generation: Wi-Fi 5
• Ethernet 10/100/1000 Ethernet ports: 1
• Fiber SFP DDMI: yes
• SFP ports: 1
• Peripherals Number of SIM slots: 1 Modem (Mini SIM)
• MiniPCI-e slots: 1
• Number of USB ports: 1
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| Technical Specifications: MikroTik RB922UAGS-5HPacD-NM | |
|---|---|
| General | |
| SKU | RB922UAGS-5HPacD-NM |
| Product Code | RB922UAGS-5HPacD-NM |
| Brand | MikroTik |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU Core Count | 1 |
| CPU Nominal Frequency | 720 MHz |
| RAM | 128 MB |
| Storage | 128 MB NAND |
| Operating System | RouterOS |
| RouterOS License | L4 |
| MTBF | Approximately 200,000 hours at 25°C |
| Physical | |
| Dimensions | 143 × 247 × 48 mm (PCB) |
| Enclosure | Waterproof metal (IP54) |
| Power & Electrical | |
| DC Inputs | 1 (PoE-IN) |
| PoE Input | Passive PoE |
| PoE Input Voltage | 8–30 VDC |
| Max Power Consumption | 19 W |
| Cooling Type | Passive |
| Wireless / RF | |
| Wireless Standards | 802.11a/n/ac |
| Wireless Frequency Range | 5150–5875 MHz |
| 5 GHz Wireless Chip | QCA9882 |
| 5 GHz Wi-Fi Generation | Wi-Fi 5 |
| 5 GHz Number of Chains | 2 |
| 5 GHz Max Data Rate | 867 Mbit/s |
| External Antennas | 2 × RP-SMA connectors |
| Networking & Connectivity | |
| Gigabit Ethernet Ports | 1 |
| SFP Ports | 1 |
| SFP DDMI | Yes |
| miniPCI-e Slots | 1 |
| SIM Slots | 1 (Mini SIM for 3G/4G) |
| USB Ports | 1 (Type A) |
| Max USB Current | 1 A |
| USB Power Reset | Yes |
| Environmental | |
| Tested Ambient Temperature Range | –40°C to 70°C |
