MikroTik · Wireless Access Points

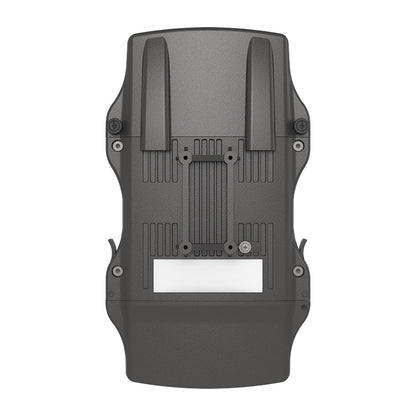

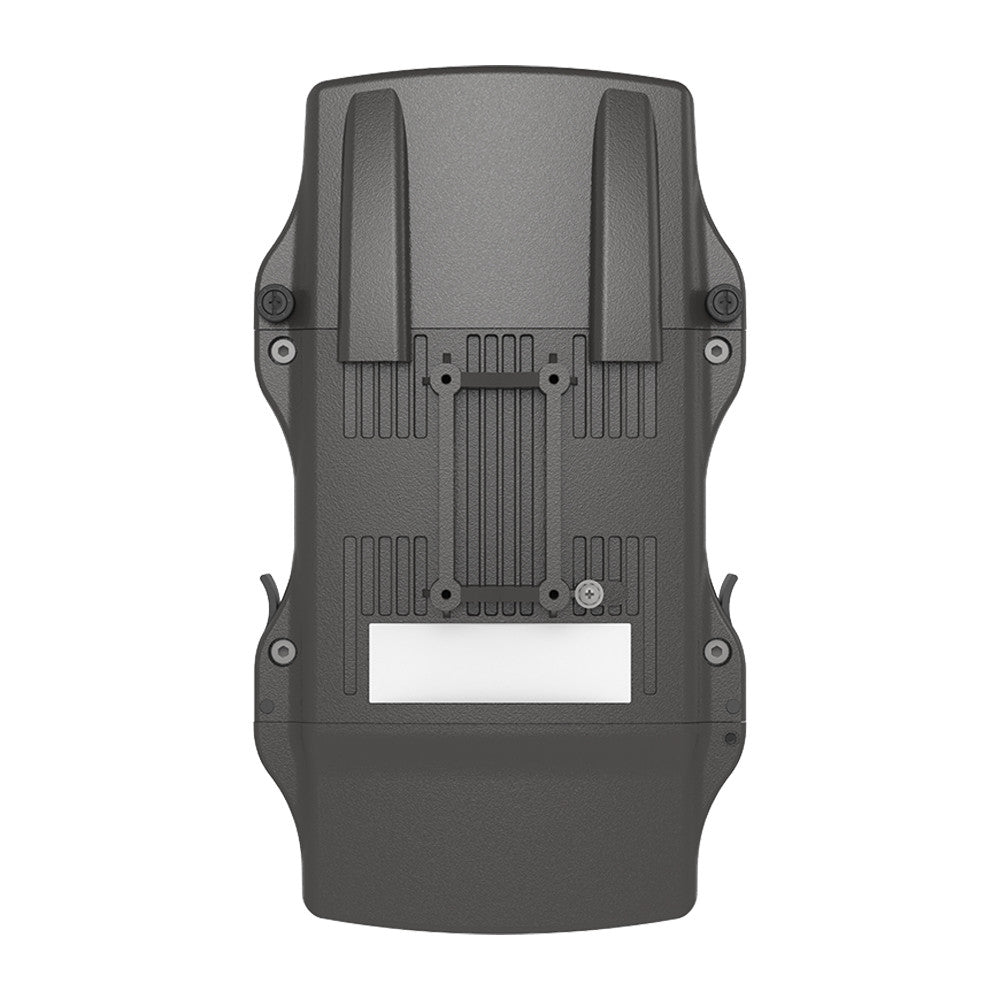

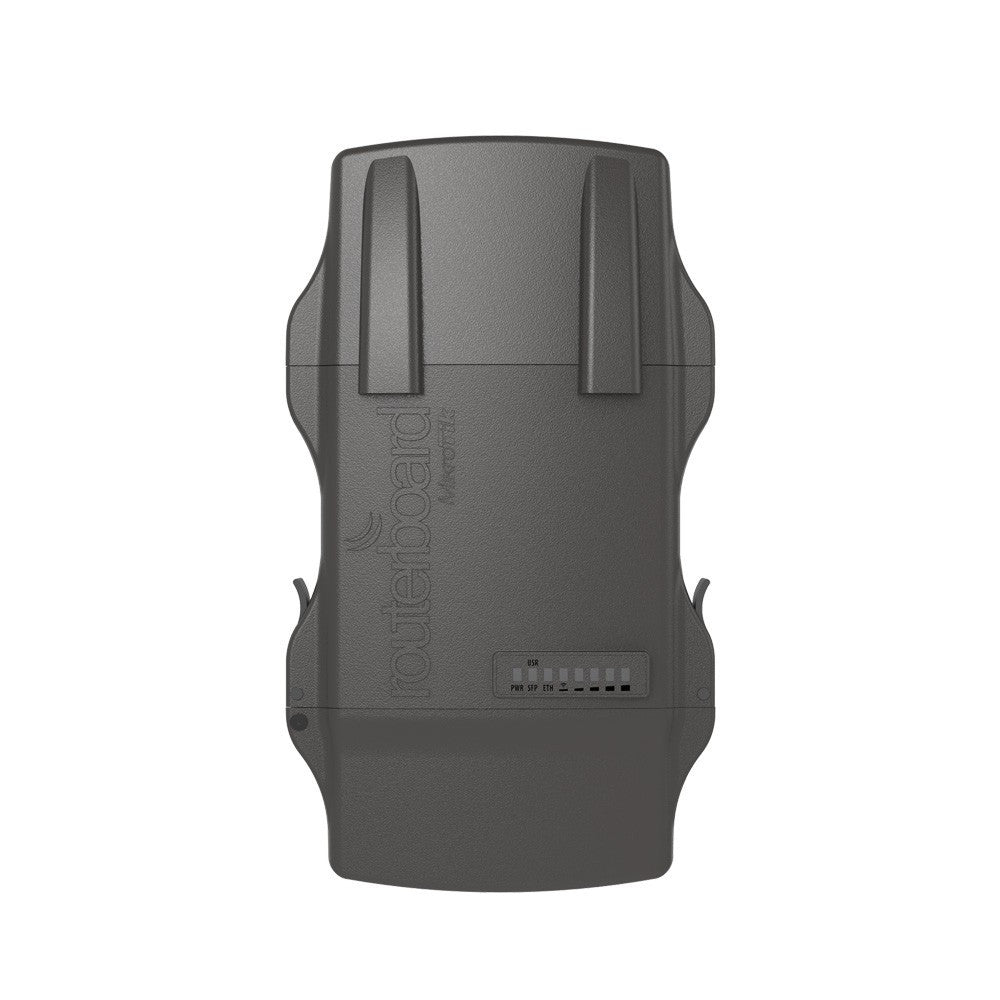

MikroTik RB922UAGS-5HPacD-NM-US NetMetal 802.11ac Dual Chain Wireless Access
- EhubAmerica SKU
- RB922UAGS-5HPacD-NM-US
- 802.11a/n/ac (Wi-Fi 5)
- 5 GHz
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
This NetMetal version is equipped with a miniPCI-express slot a SIM slot for 3G/4G device or additional wireless card, a high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• Specifications Product code: RB922UAGS-5HPacD-NM
• Architecture: MIPSBE
• CPU: QCA9557
• CPU core count: 1
• CPU nominal frequency: 720 MHz
• Dimensions: 143x247x48mm (PCB)
• RouterOS license: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage size: 128 MB
• Storage type: NAND
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• Powering Number of DC inputs: 1 (PoE-IN)
• Max power consumption: 19 W
• Cooling type: Passive
• PoE in: Passive PoE
• PoE in input Voltage: 8-30 V
TECHNICAL SPECIFICATIONS
• Brand: MikroTik
• Model: RB922UAGS-5HPacD-NM-US
• Product Type: Wireless Access Points
• Specifications Product code: RB922UAGS-5HPacD-NM
• Architecture: MIPSBE
• CPU: QCA9557
• CPU core count: 1
• CPU nominal frequency: 720 MHz
• Dimensions: 143x247x48mm (PCB)
• RouterOS license: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage size: 128 MB
• Storage type: NAND
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• Powering Number of DC inputs: 1 (PoE-IN)
• Max power consumption: 19 W
• Cooling type: Passive
• PoE in: Passive PoE
• PoE in input Voltage: 8-30 V
• Wireless specifications Wireless 5 GHz Max data rate: 867 Mbit/s
• Wireless 5 GHz number of chains: 2
• Wireless 5 GHz standards: 802.11a/n/ac
• Wireless 5 GHz chip model: QCA9882
• Wireless 5 GHz generation: Wi-Fi 5
• Ethernet 10/100/1000 Ethernet ports: 1
• Fiber SFP DDMI: yes
• SFP ports: 1
• Peripherals Number of SIM slots: 1 Modem (Mini SIM)
• MiniPCI-e slots: 1
• Number of USB ports: 1
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | MikroTik |
| Model | NetMETAL 5 |
| SKU | RB922UAGS-5HPacD-NM-US |
| Product Code | RB922UAGS-5HPacD-NM |
| Architecture | MIPSBE |
| Operating System | RouterOS |
| RouterOS License | L4 |
| Physical | |
| Dimensions | 143 x 247 x 48 mm (PCB) |
| Enclosure | Waterproof metal (aluminum) |
| IP Rating | IP54 |
| Cooling Type | Passive |
| Power & Electrical | |
| Power Input | Passive PoE (1x PoE-IN) |
| Input Voltage | 8-30 VDC |
| Max Power Consumption | 19 W |
| MTBF | Approximately 200,000 hours at 25°C |
| Operating Temperature | -40°C to 70°C |
| Wireless / RF | |
| Wireless Standard | 802.11a/n/ac (Wi-Fi 5) |
| Frequency Band | 5 GHz |
| Wireless Chip | QCA9882 |
| Chains | 2x2 dual chain |
| Max Data Rate | 867 Mbit/s |
| Antenna Connectors | 2x RP-SMA (external antennas) |
| Networking & Connectivity | |
| CPU | QCA9557 |
| CPU Cores | 1 |
| CPU Frequency | 720 MHz |
| RAM | 128 MB |
| Storage | 128 MB NAND |
| Gigabit Ethernet Ports | 1 |
| SFP Ports | 1 (with DDMI support) |
| MiniPCI-e Slots | 1 |
| SIM Slots | 1 (Mini SIM for 3G/4G modem) |
| USB Ports | 1 (Type A, 1A max current, with power reset) |
