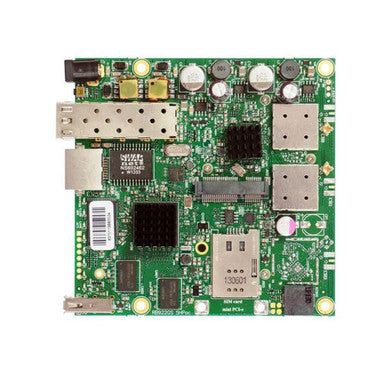

MikroTik RB922UAGS-5HPacD Wi-Fi 5 Gigabit Router 867Mbps PoE

The MikroTik RB922UAGS-5HPacD-US is a highly flexible 802.11ac RouterBOARD platform designed for network engineers and integrators who need to build purpose-specific wireless routing solutions. Powered by a 720 MHz QCA9557 processor with 128 MB of RAM and 128 MB of NAND storage, it runs MikroTik RouterOS Level 4 and supports the full breadth of routing, firewall, and wireless AP features that platform provides. The integrated 5 GHz 2x2 802.11a/n/ac radio delivers up to 867 Mbit/s data rate across 20/40/80 MHz channel widths via two MMCX antenna connectors, while the combination of a Gigabit Ethernet port, SFP cage with DDMI support, miniPCIe slot with SIM card slot, and USB Type-A port gives the board an exceptional range of uplink and expansion options for custom enclosure deployments. The US version is factory-locked to 5170–5250 MHz and 5725–5835 MHz frequency ranges in compliance with FCC regulations; this restriction is permanent and cannot be removed.

Key features & benefits

• 802.11ac Wi-Fi 5 Radio — The onboard QCA9882 chip provides a 2x2 dual-chain 5 GHz radio supporting 802.11a/n/ac standards with a maximum data rate of 867 Mbit/s and 20/40/80 MHz channel support, connected via two MMCX antenna ports.
• FCC-Compliant US Frequency Lock — Factory-locked to 5170–5250 MHz and 5725–5835 MHz, ensuring full regulatory compliance for US deployments straight out of the box with no configuration required.
• SFP Cage with DDMI — A dedicated SFP port with Digital Diagnostics Monitoring Interface enables fiber uplink connectivity and real-time optical transceiver monitoring, expanding deployment options to fiber-connected infrastructure.
• miniPCIe Slot with SIM — The miniPCIe expansion slot includes a Mini SIM socket, allowing installation of a 3G/4G modem card for cellular WAN failover or primary connectivity, or an additional wireless card for multi-radio configurations.
• Dual Power Inputs — Accepts 8–30 V DC via both a DC barrel jack and Passive PoE input, providing flexible powering options for enclosure builds and pole or wall-mounted installations.
• Gigabit Ethernet Port — A single 10/100/1000 Ethernet port serves as the primary wired interface, suitable for LAN distribution or WAN uplink depending on the deployment architecture.
• USB Type-A Port with Power Reset — The USB 2.0 Type-A port supports up to 1 A output and includes a USB Power Reset function, enabling reliable modem management and peripheral connectivity.
• Wide Operating Temperature Range — Tested and rated for operation from -40°C to 70°C with passive cooling and an MTBF of approximately 100,000 hours at 25°C, making it suitable for demanding outdoor enclosure and industrial environments.
• RouterOS Level 4 License Included — Ships with a RouterOS Level 4 AP license, enabling advanced routing, firewall, wireless access point, and network management capabilities on the MIPSBE architecture platform.
