MikroTik · Wireless Access Points
MikroTik RB951Ui-2nD hAP 5-Port 802.11n Wireless Access Point PoE
- EhubAmerica SKU
- RB951Ui-2nD
- 2.4 GHz
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

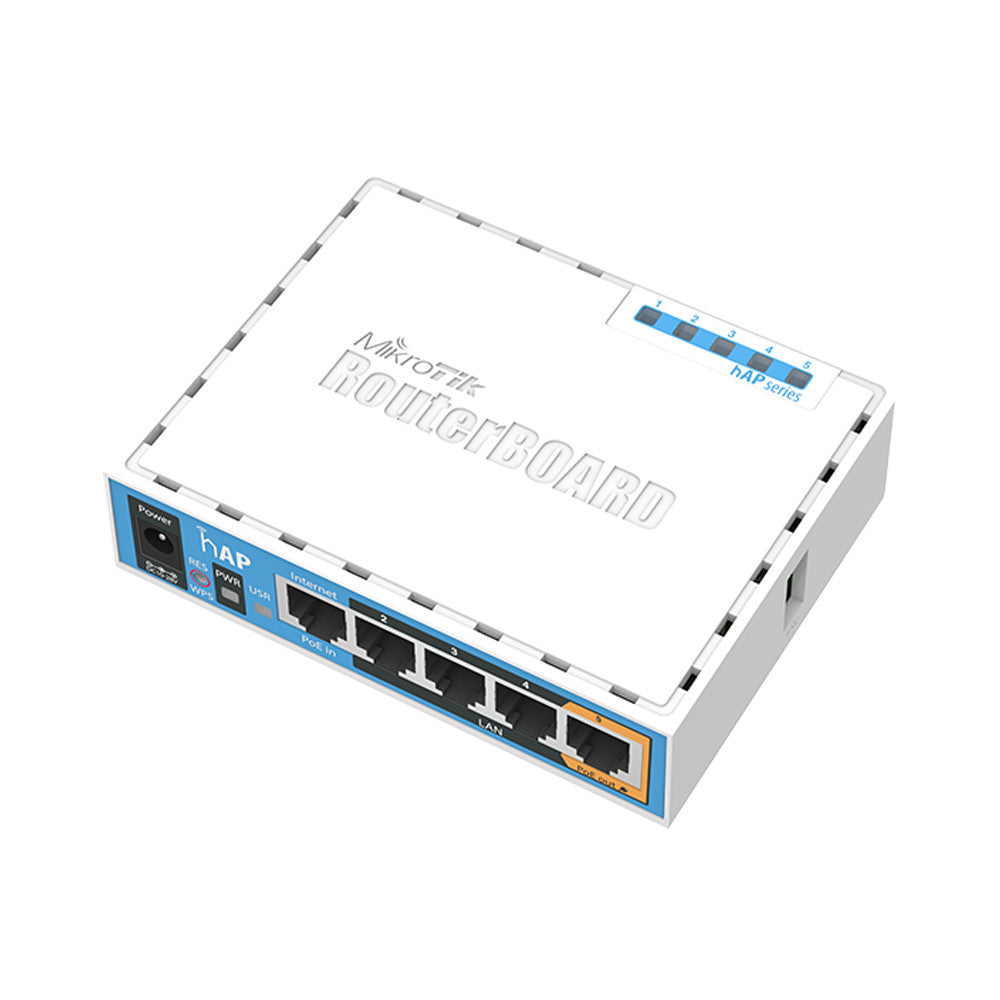

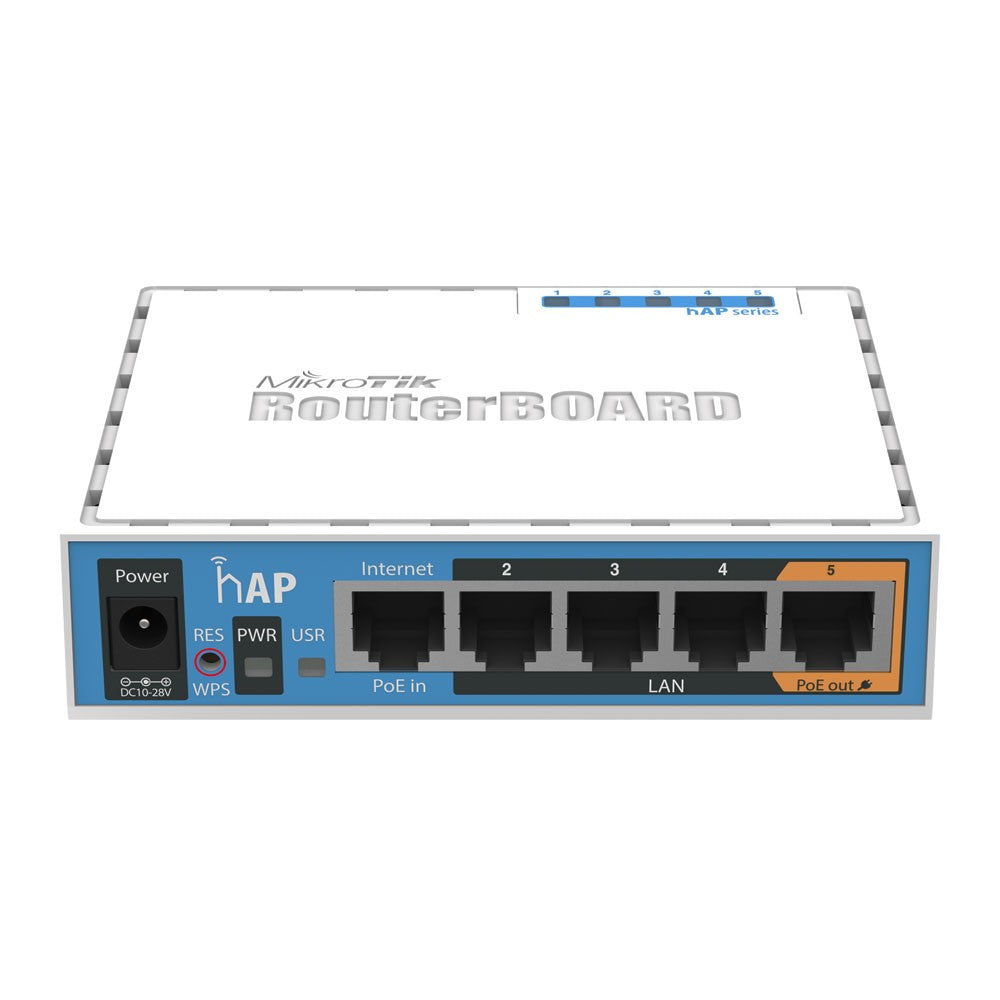

This small home access point is the perfect device for homes or small offices where all you need is a wireless AP and a few wired devices connected. Based on our popular RB951-2n, the new hAP is an improvement in many areas. The hAP can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included. The hAP is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• Dual chain wireless 2.4 GHz
• 650 MHz CPU
• 64 MB of RAM
• Passive PoE output on port 5
• USB port for 3G/4G modem
• CPU nominal frequency: 650 MHz
• CPU core count: 1
• Size of RAM: 64 MB
• 10/100 Ethernet ports: 5
• Wireless Built-in: 2.4 GHz 802.11b/g/n, dual-chain
• Wireless regulations: Specific frequency range may be limited by country regulations
• Antenna gain: 1.5 dBi
• Antenna beam width: 360°
• Wireless chip model: QCA9531
• PoE in: Yes
• PoE out: Yes (Ether5)
• Supported input voltage: 6 V - 30 V (Jack or Passive PoE)
• Extras: USB 2.0 Type A full size port, 1A
TECHNICAL SPECIFICATIONS
• Brand: MikroTik
• Model: RB951Ui-2nD
• Product Type: Wireless Access Points
• Dual chain wireless 2.4 GHz
• 650 MHz CPU
• 64 MB of RAM
• Passive PoE output on port 5
• USB port for 3G/4G modem
• CPU nominal frequency: 650 MHz
• CPU core count: 1
• Size of RAM: 64 MB
• 10/100 Ethernet ports: 5
• Wireless Built-in: 2.4 GHz 802.11b/g/n, dual-chain
• Wireless regulations: Specific frequency range may be limited by country regulations
• Antenna gain: 1.5 dBi
• Antenna beam width: 360°
• Wireless chip model: QCA9531
• PoE in: Yes
• PoE out: Yes (Ether5)
• Supported input voltage: 6 V - 30 V (Jack or Passive PoE)
• Extras: USB 2.0 Type A full size port, 1A
• Dimensions: 113 x 89 x 28mm
• License level: 4
• Operating System: RouterOS
• CPU: QCA9531
• Max Power consumption: 5 W
• Wireless specifications: RATE: (1MBit/s) (11MBit/s) (6MBit/s) (54MBit/s) (MCS0) (MCS7)
• Tx (dBm): (22) (22) (20) (18) (20) (16)
• Rx (dBm): (-96) (-89) (-93) (-74) (-93) (-71)
• Included: 24 V 0.8 A power adapter
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | MikroTik |
| Model | RB951Ui-2nD |
| SKU | RB951Ui-2nD |
| Operating System | RouterOS |
| License Level | 4 |
| Physical | |
| Dimensions | 113 x 89 x 28 mm |
| Power & Electrical | |
| Supported Input Voltage | 6 V - 30 V (Jack or Passive PoE) |
| Max Power Consumption | 5 W |
| Power Adapter Included | 24 V 0.8 A |
| Wireless / RF | |
| Wireless Standards | 802.11b/g/n |
| Frequency Band | 2.4 GHz |
| Chain Configuration | Dual-chain |
| Antenna Gain | 1.5 dBi |
| Antenna Beam Width | 360° |
| Wireless Chip | QCA9531 |
| Wireless Regulations | Specific frequency range may be limited by country regulations |
| TX Power (dBm) | (22) (22) (20) (18) (20) (16) |
| RX Sensitivity (dBm) | (-96) (-89) (-93) (-74) (-93) (-71) |
| Data Rates | (1 Mbit/s) (11 Mbit/s) (6 Mbit/s) (54 Mbit/s) (MCS0) (MCS7) |
| Networking & Connectivity | |
| 10/100 Ethernet Ports | 5 |
| PoE Input | Yes |
| PoE Output | Yes (Ether5) |
| USB Port | USB 2.0 Type A full size, 1 A |
| Compatibility | |
| CPU | QCA9531 |
| CPU Nominal Frequency | 650 MHz |
| CPU Core Count | 1 |
| RAM | 64 MB |
| In the Box | |
| Included | 24 V 0.8 A power adapter |
