MikroTik · Wireless Access Points
MikroTik RB952Ui-5ac2nD-TC-US Dual-Band Wireless Access Point 802.11ac
- EhubAmerica SKU
- RB952Ui-5ac2nD-TC-US
- 5 x 10/100 Mbps
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

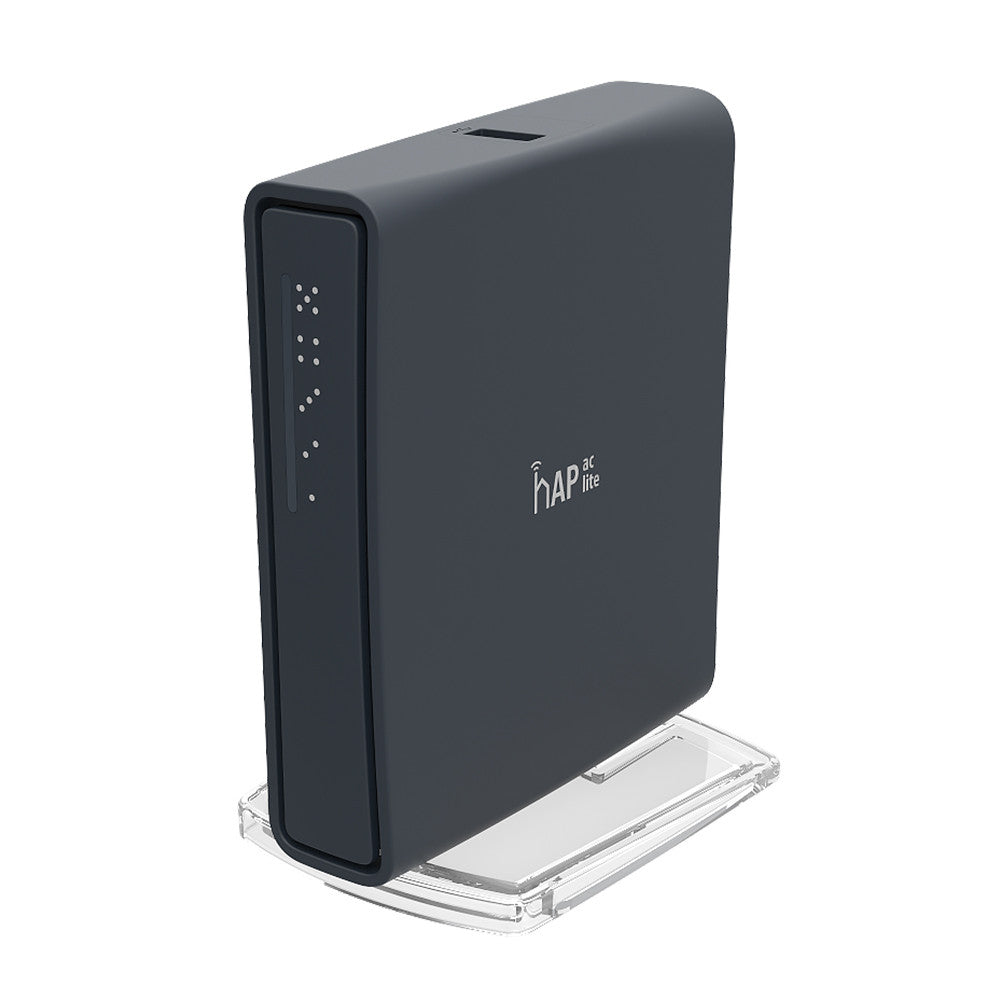

The hAP ac lite is a Dual-concurrent Access Point , that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time.
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• Specifications Product code: RB952Ui-5ac2nD-TC
• Architecture: MIPSBE
• CPU: QCA9531
• CPU core count: 1
• CPU nominal frequency: 650 MHz
• Switch chip model: QCA9531
• Dimensions: 34 x 119 x 98mm
• RouterOS license: 4
• Operating System: RouterOS
• Size of RAM: 64 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 100'000 hours at 25C
• Tested ambient temperature: -30°C to 70°C
• Wireless capabilities Wireless 2.4 GHz Max data rate: 300 Mbit/s
• Wireless 2.4 GHz number of chains; 2
• Wireless 2.4 GHz standards: 802.11b/g/n
• Antenna gain dBi for 2.4 GHz: 1.5
TECHNICAL SPECIFICATIONS
• Brand: MikroTik
• Model: RB952Ui-5ac2nD-TC-US
• Product Type: Wireless Access Points
• Specifications Product code: RB952Ui-5ac2nD-TC
• Architecture: MIPSBE
• CPU: QCA9531
• CPU core count: 1
• CPU nominal frequency: 650 MHz
• Switch chip model: QCA9531
• Dimensions: 34 x 119 x 98mm
• RouterOS license: 4
• Operating System: RouterOS
• Size of RAM: 64 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 100'000 hours at 25C
• Tested ambient temperature: -30°C to 70°C
• Wireless capabilities Wireless 2.4 GHz Max data rate: 300 Mbit/s
• Wireless 2.4 GHz number of chains; 2
• Wireless 2.4 GHz standards: 802.11b/g/n
• Antenna gain dBi for 2.4 GHz: 1.5
• Wireless 2.4 GHz chip model: QCA9531
• Wireless 2.4 GHz generation: Wi-Fi 4
• Wireless 5 GHz Max data rate: 433 Mbit/s
• Wireless 5 GHz number of chains: 1
• Wireless 5 GHz standards: 802.11a/n/ac
• Antenna gain dBi for 5 GHz: 2
• Wireless 5 GHz chip model: QCA9887
• Wireless 5 GHz generation: Wi-Fi 5
• WiFi speed: AC750
• Ethernet 10/100 Ethernet ports: 5
• Peripherals Number of USB ports: 1
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| Technical Specifications: Mikrotik hAP ac lite TC Access Point (US Version) | |
|---|---|
| General | |
| Model | RB952Ui-5ac2nD-TC-US |
| Brand | MikroTik |
| Product Type | Dual-concurrent Access Point |
| Operating System | RouterOS |
| RouterOS License | L4 |
| Architecture | MIPSBE |
| Physical | |
| Dimensions | 34 x 119 x 98 mm |
| Mounting | Wall anchored mounting kit included; universal case allows horizontal (desktop) or vertical (tower) positioning |
| Power & Electrical | |
| DC Jack Input Voltage | 10-28 VDC |
| Max Power Consumption | 20 W |
| Max Power Consumption (without attachments) | 8 W |
| Cooling Type | Passive |
| PoE Input | Passive PoE, 10-28 VDC |
| PoE Output | Passive PoE on Ether5; 500 mA max per port (input 18-30 VDC) |
| Number of DC Inputs | 2 (PoE-IN, DC jack) |
| Wireless / RF | |
| Frequency Bands (US) | 2412-2462 MHz, 5170-5250 MHz, 5725-5835 MHz (factory locked; cannot be removed) |
| 2.4 GHz Standards | 802.11b/g/n |
| 2.4 GHz Max Data Rate | 300 Mbit/s |
| 2.4 GHz Chains | 2 |
| 2.4 GHz Antenna Gain | 1.5 dBi |
| 2.4 GHz Chip | QCA9531 |
| 2.4 GHz Generation | Wi-Fi 4 |
| 5 GHz Standards | 802.11a/n/ac |
| 5 GHz Max Data Rate | 433 Mbit/s |
| 5 GHz Chains | 1 |
| 5 GHz Antenna Gain | 2 dBi |
| 5 GHz Chip | QCA9887 |
| 5 GHz Generation | Wi-Fi 5 |
| Combined WiFi Speed | AC750 |
| Networking & Connectivity | |

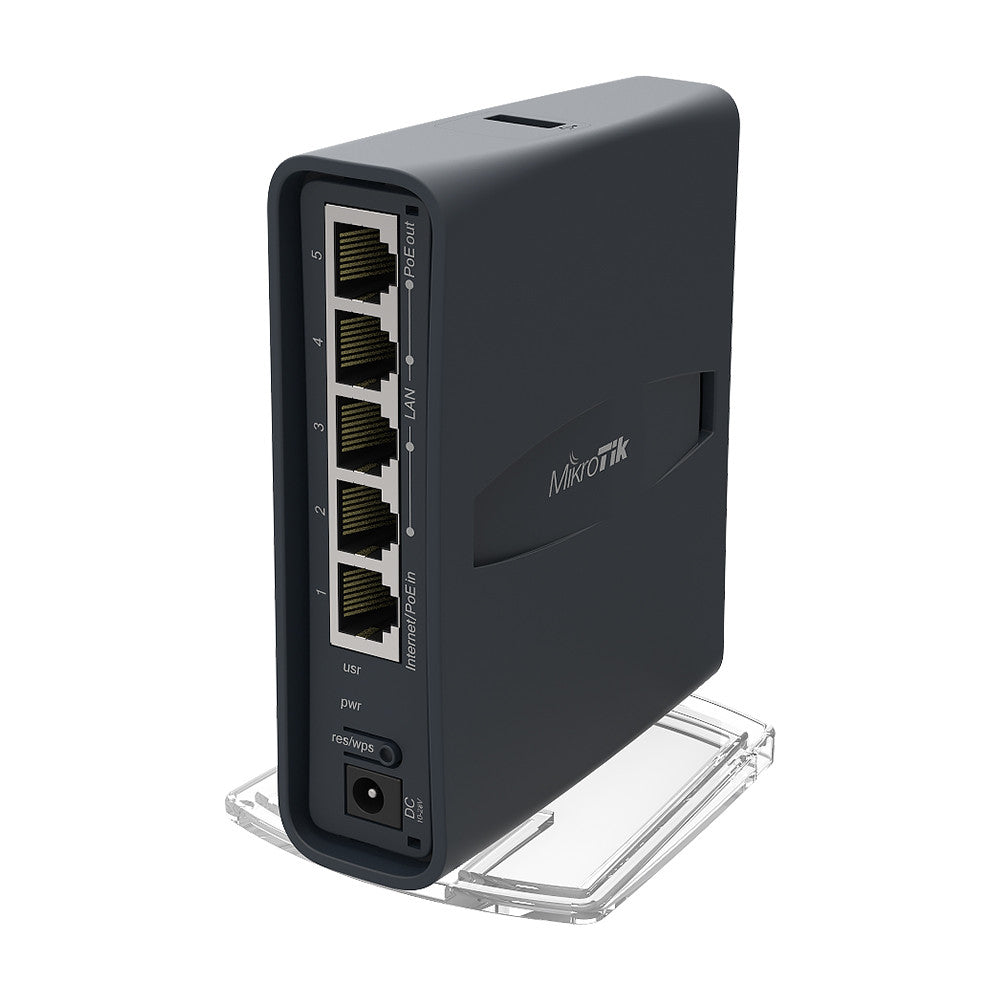

| Ethernet Ports | 5 x 10/100 Mbps |
| PoE Output Port | Ether5 |
| USB Ports | 1 x USB Type A |
| USB Max Current | 1 A |
| USB Power Reset | Yes |
| Compatibility | |
| CPU | QCA9531 (1 core) |
| CPU Frequency | 650 MHz |
| RAM | 64 MB |
| Storage | 16 MB FLASH |
| Switch Chip | QCA9531 |
| Environmental | |
| Operating Temperature Range | -30°C to 70°C |
