MikroTik RB953GS-5HnT-RP RouterBOARD, 5 GHz 3x3 MIMO 802.11a/n, 3x Gigabit, 2x SFP, 2x miniPCIe

MikroTik · Routers and Switches

MikroTik RB953GS-5HnT-RP RouterBOARD, 5 GHz 3x3 MIMO 802.11a/n, 3x Gigabit, 2x SFP, 2x miniPCIe

Part number / SKU
RB953GS-5HnT-RP
  • 802.11a/n, Wi-Fi 4
  • 5 GHz
  • 450 Mbit/s
  • 3x 1 GbE RJ45
  • 3x3, triple chain
$155.80

In stock

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

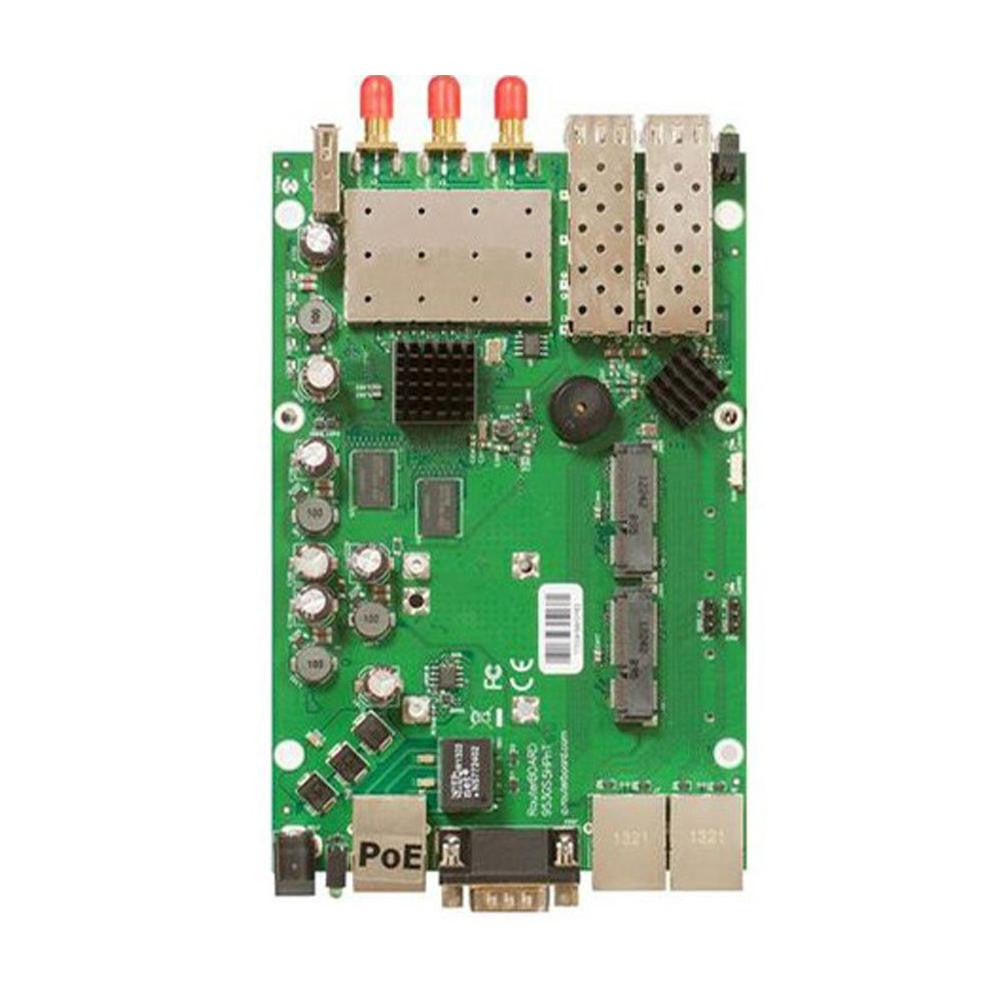

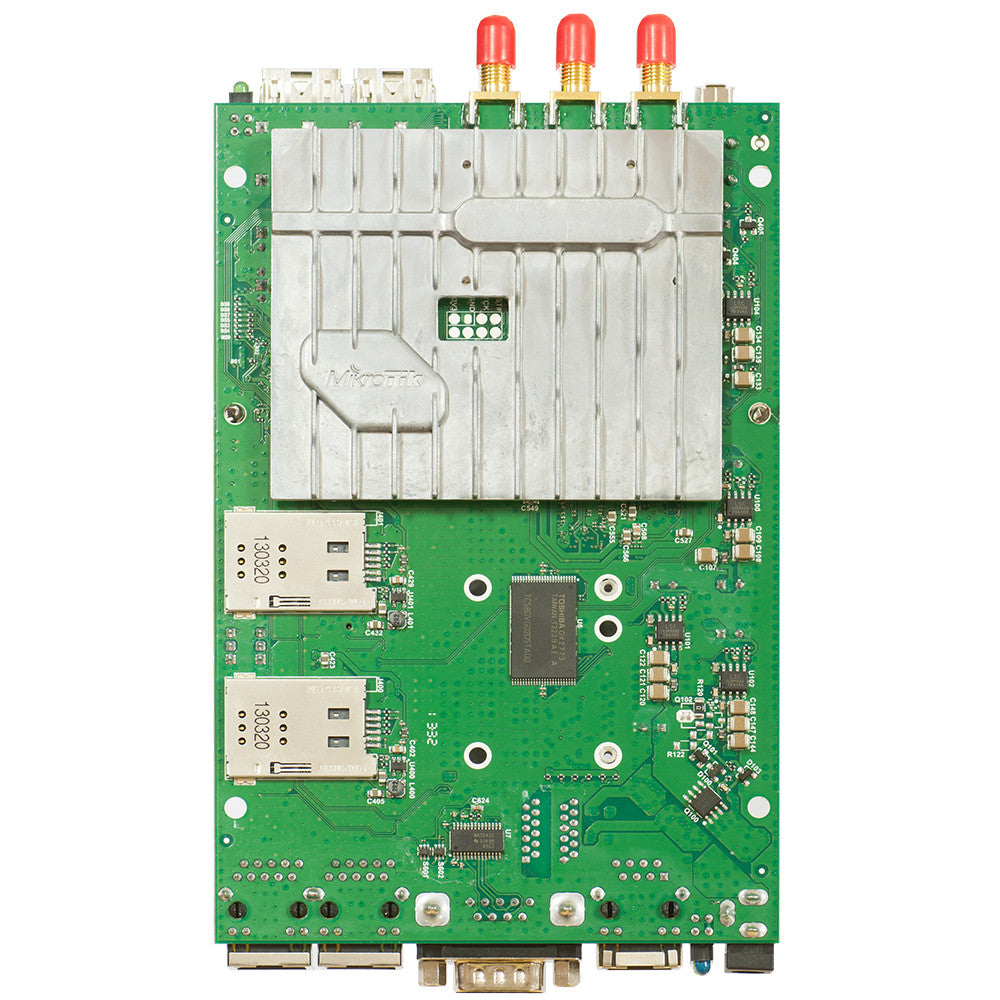

The MikroTik RB953GS-5HnT-RP is a RouterBOARD wireless router and MikroTik's first product with 5 GHz 3x3 MIMO triple-chain support. It has an 802.11a/n radio rated at up to 450 Mbit/s with three RP-SMA antenna connectors, and runs RouterOS with a level 5 license.

A QCA9558 CPU at 720 MHz with 128 MB RAM and 128 MB NAND drives three Gigabit Ethernet ports and two SFP cages for FTTH and fiber ring deployments. Two miniPCIe slots and two mini SIM slots allow multiple 3G/4G connections or extra wireless cards. MikroTik RFC 2544 tests show 1,966.1 Mbps routing at 1518-byte packets (fast path).

Power comes from the DC jack or passive PoE in at 11 to 30 V, with a maximum draw of 25 W. The board measures 183 x 105 x 24 mm, has an RS232 serial console and a USB port, and was tested by MikroTik at -40 to 70 °C ambient. The international version covers 5150 to 5875 MHz, subject to country rules.

  • Best for: FTTH and fiber ring sites and custom wireless builds that need 3x3 5 GHz with multiple cellular or radio cards.
  • System fit: MikroTik RouterOS level 5; external antennas through 3x RP-SMA; miniPCIe for modems or extra radios.
  • Important to know: Enclosure and antennas are not listed as included; usable 5 GHz channels depend on local rules.

Why teams choose it

Built for reliable networks

  • 3x3 MIMO 5 GHz radio

    triple-chain 802.11a/n rated at up to 450 Mbit/s, up to 32 dBm transmit power.

  • Fiber ready

    two SFP cages plus three Gigabit Ethernet ports.

  • Expansion

    two miniPCIe slots and two mini SIM slots for 3G/4G modems or more wireless cards.

  • Measured routing speed

    1,966.1 Mbps at 1518-byte packets in MikroTik RFC 2544 fast path tests.

Specifications

Technical specifications

General
Brand MikroTik
Model RB953GS-5HnT-RP
Device Type Wireless router board
Interfaces
Ethernet Ports 3x 1 GbE RJ45
SFP Ports 2x SFP
Antenna Connectors 3x RP-SMA
Expansion Slot 2x miniPCIe
SIM Slot 2x mini SIM
Console Port RS232 serial
USB 1x USB Type-A, 1 A max, USB power reset
Wireless
Wireless Standard 802.11a/n, Wi-Fi 4
Frequency Band 5 GHz
Frequency Range 5150 to 5875 MHz, subject to country rules
Data Rate 450 Mbit/s
MIMO Configuration 3x3, triple chain
Antenna Type External, 3x RP-SMA
Wireless Chip QCA9558
Max Tx Power 32 dBm at 6 Mbit/s; 29 dBm at MCS7
Performance
CPU QCA9558, 1 core, 720 MHz, MIPSBE
Switch Chip AR8327
RAM 128 MB
Storage 128 MB NAND
Routing Throughput 1,966.1 Mbps at 1518-byte packets, fast path (RFC 2544)
Routing Packet Rate 397.9 kpps at 64-byte packets, fast path
Routing (25 IP Filter Rules) 948.4 Mbps at 1518-byte packets
Power
Power Method DC jack or passive PoE in
Input Voltage 11 to 30 V, DC jack or PoE in
Max Power Consumption 25 W
Cooling Passive
Physical
Dimensions 183 x 105 x 24 mm
Environmental
Operating Temperature -40 to 70 °C (tested ambient)
MTBF About 200,000 hours at 25 °C
Software and Management
Operating System RouterOS
RouterOS License Level 5
Monitoring PCB temperature and voltage monitor, beeper
Listings and Approvals
Certifications CE, FCC, IC, EAC, RoHS
