MikroTik RBD52G-5HacD2HnD-TC hAP ac2 AC1200 Dual-Band Wireless Access Point
- EhubAmerica SKU
- RBD52G-5HacD2HnD-TC
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

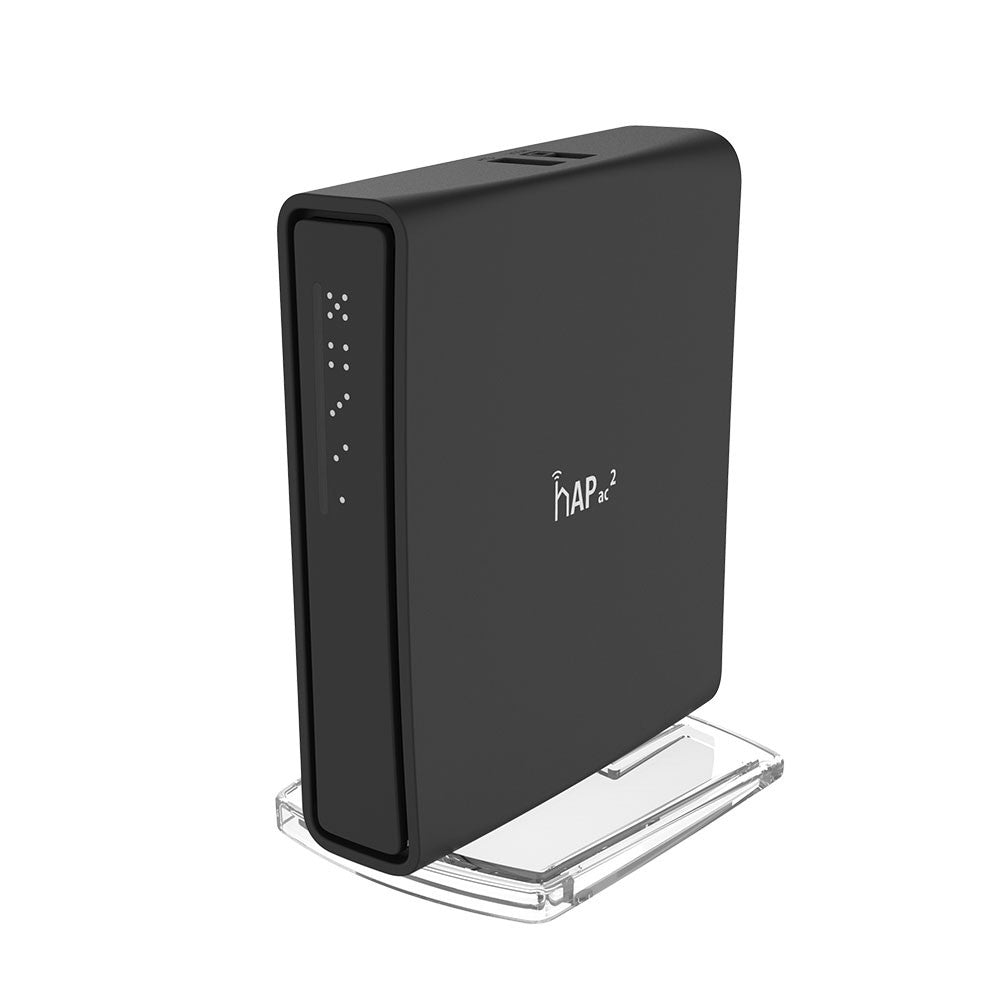

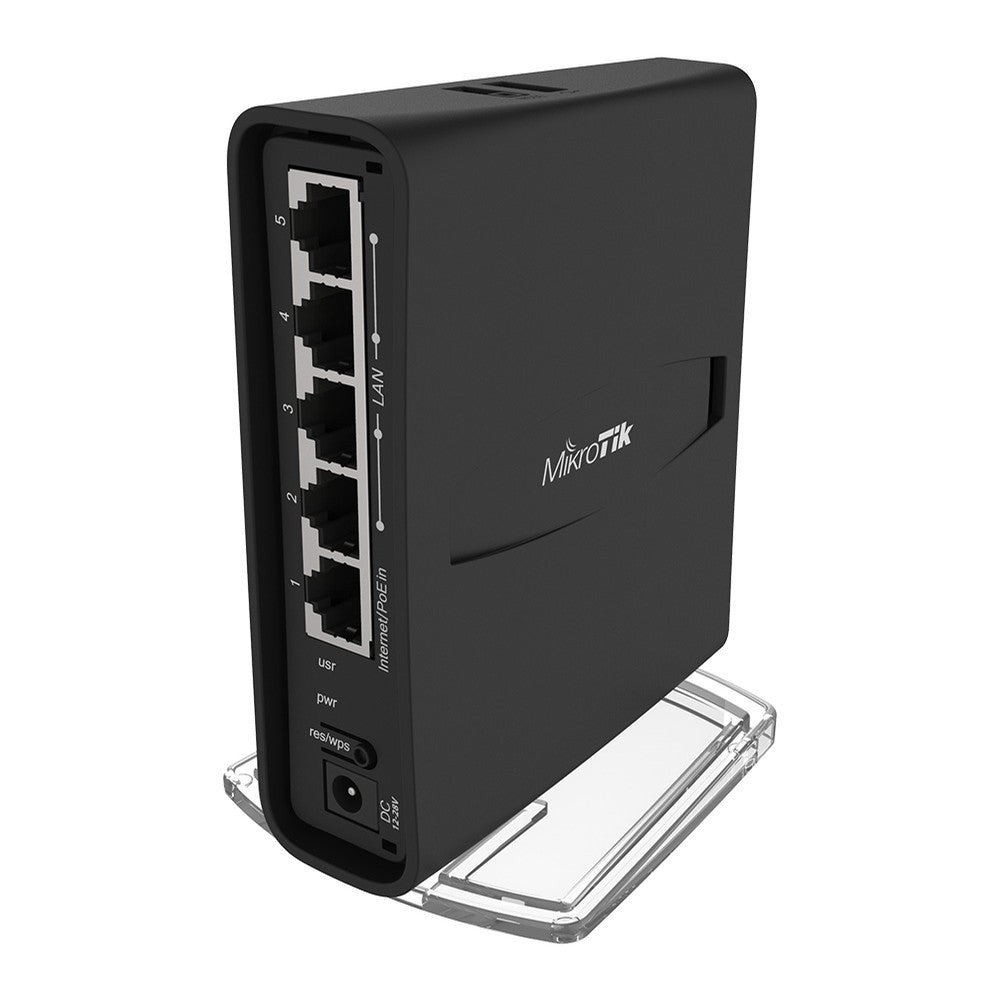

The hAP ac² is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, USB can be used for external storage or 4G/LTE modem, and device supports IPsec hardware acceleration.
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• Specifications Product code: RBD52G-5HacD2HnD-TC
• Architecture: ARM 32bit
• CPU: IPQ-4018
• CPU core count: 4
• CPU nominal frequency: 716 MHz
• Dimensions: 34 x 119 x 98mm
• License level: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage size: 16 MB
• Storage type: FLASH
• Tested ambient temperature: -40°C to 50°C
• Powering PoE in: Passive PoE
• PoE in input Voltage: 18-28 V
• Number of DC inputs: 2 (DC jack, PoE-IN)
• DC jack input Voltage: 12-30 V
• Max power consumption: 21 W
• Max power consumption without attachments: 16 W
TECHNICAL SPECIFICATIONS
• Brand: MikroTik
• Model: RBD52G-5HacD2HnD-TC
• Product Type: Wireless Access Points
• Specifications Product code: RBD52G-5HacD2HnD-TC
• Architecture: ARM 32bit
• CPU: IPQ-4018
• CPU core count: 4
• CPU nominal frequency: 716 MHz
• Dimensions: 34 x 119 x 98mm
• License level: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage size: 16 MB
• Storage type: FLASH
• Tested ambient temperature: -40°C to 50°C
• Powering PoE in: Passive PoE
• PoE in input Voltage: 18-28 V
• Number of DC inputs: 2 (DC jack, PoE-IN)
• DC jack input Voltage: 12-30 V
• Max power consumption: 21 W
• Max power consumption without attachments: 16 W
• Wireless AC speed: AC1200
• Antenna gain dBi for 2.4 GHz: 2.5
• Wireless 2.4 GHz standards: 802.11b/g/n
• Wi-Fi generation: 5
• Wireless 2.4 GHz Max data rate: 300 Mbit/s
• Wireless 5 GHz Max data rate: 867 Mbit/s
• Wireless 2.4 GHz number of chains: 2
• Wireless 2.4 GHz chip model: IPQ-4018
• Wireless 5 GHz number of chains: 2
• Wireless 5 GHz standards: 802.11a/n/ac
• Antenna gain dBi for 5 GHz: 2.5
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| MikroTik hAP ac2 Technical Specifications | |
|---|---|
| General | |
| Product Code | RBD52G-5HacD2HnD-TC |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU Core Count | 4 |
| CPU Nominal Frequency | 716 MHz |
| Operating System | RouterOS |
| License Level | 4 |
| Physical | |
| Dimensions | 34 x 119 x 98 mm |
| RAM | 128 MB |
| Storage | 16 MB FLASH |
| Power & Electrical | |
| PoE Input | Passive PoE, 18-28 V |
| DC Jack Input Voltage | 12-30 V |
| Max Power Consumption | 21 W |
| Max Power Consumption Without Attachments | 16 W |
| DC Inputs | 2 (DC jack, PoE-IN) |
| Wireless / RF | |
| Wi-Fi Generation | 5 |
| AC Speed | AC1200 |
| 2.4 GHz Standards | 802.11b/g/n |
| 2.4 GHz Max Data Rate | 300 Mbit/s |
| 2.4 GHz Antenna Gain | 2.5 dBi |
| 2.4 GHz Number of Chains | 2 |
| 5 GHz Standards | 802.11a/n/ac |
| 5 GHz Max Data Rate | 867 Mbit/s |
| 5 GHz Antenna Gain | 2.5 dBi |
| 5 GHz Number of Chains | 2 |
| Supported Frequency Range | 2412-2484 MHz (2.4 GHz), 5150-5875 MHz (5 GHz) |
| Networking & Connectivity | |
| Gigabit Ethernet Ports | 5 (10/100/1000) |
| USB Ports | 1 Type A |
| Max USB Current | 1 A |
| USB Power Reset | Yes |
| Environmental | |
| Operating Temperature Range | -40°C to 50°C |
| Compatibility | |
| Mode Button | Yes |
