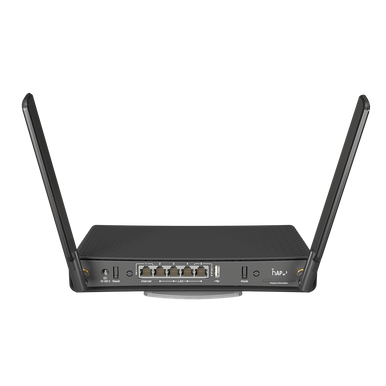

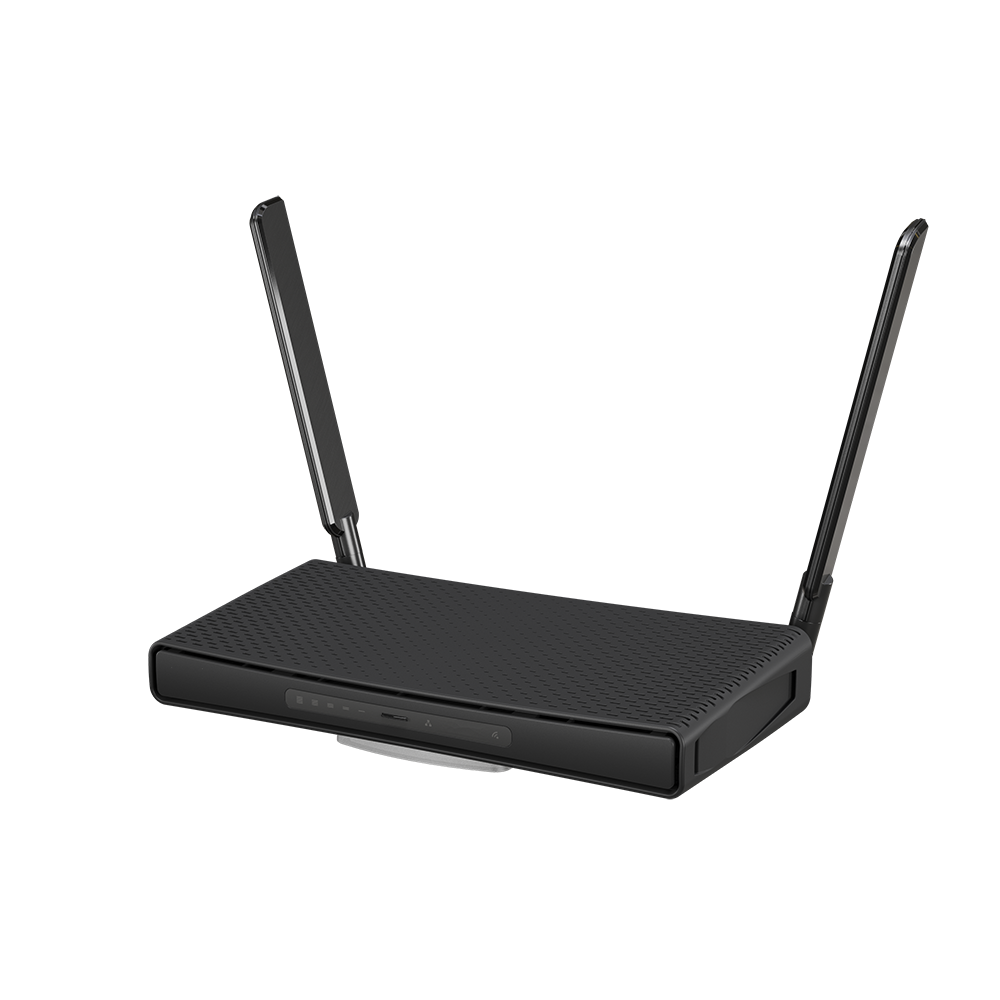

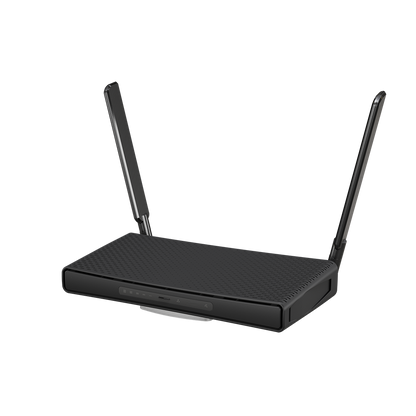

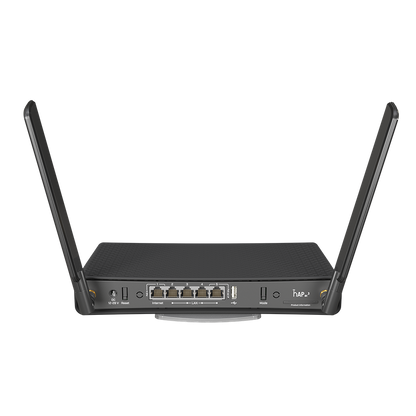

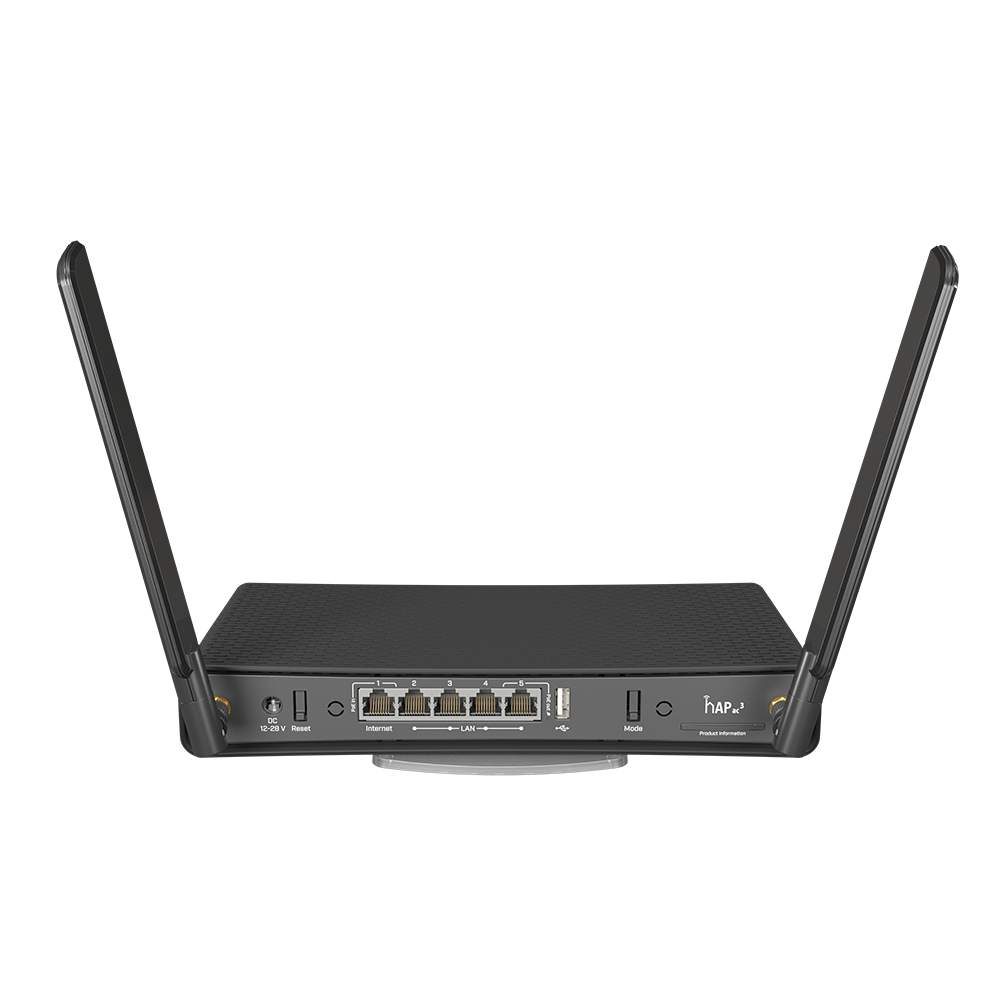

MikroTik RBD53iG-5HacD2HnD-US hAP ac³ 5-Port Gigabit PoE Router
- EhubAmerica SKU
- RBD53iG-5HacD2HnD-US
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! We have created a single affordable home access point that has all the features you might need for years to come.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
• Specifications Product code: RBD53iG-5HacD2HnD-US
• Architecture: ARM 32bit
• CPU: IPQ-4019
• CPU core count: 4
• CPU nominal frequency: 716 MHz
• Dimensions: 251 x 129 x 39 mm
• RouterOS license: 4
• Operating System: RouterOS
• Size of RAM: 256 MB
• Storage size: 128 MB
• Storage type: NAND
• MTBF: Approximately 100'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• IPsec hardware acceleration: Yes
• Wireless capabilities Wireless 2.4 GHz Max data rate: 300 Mbit/s
• Wireless 2.4 GHz number of chains: 2
• Wireless 2.4 GHz standards: 802.11b/g/n
• Antenna gain dBi for 2.4 GHz: 3
TECHNICAL SPECIFICATIONS
• Brand: MikroTik
• Model: RBD53iG-5HacD2HnD-US
• Product Type: Routers and Switches
• Specifications Product code: RBD53iG-5HacD2HnD-US
• Architecture: ARM 32bit
• CPU: IPQ-4019
• CPU core count: 4
• CPU nominal frequency: 716 MHz
• Dimensions: 251 x 129 x 39 mm
• RouterOS license: 4
• Operating System: RouterOS
• Size of RAM: 256 MB
• Storage size: 128 MB
• Storage type: NAND
• MTBF: Approximately 100'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• IPsec hardware acceleration: Yes
• Wireless capabilities Wireless 2.4 GHz Max data rate: 300 Mbit/s
• Wireless 2.4 GHz number of chains: 2
• Wireless 2.4 GHz standards: 802.11b/g/n
• Antenna gain dBi for 2.4 GHz: 3
• Wireless 2.4 GHz chip model: IPQ-4019
• Wireless 2.4 GHz generation: Wi-Fi 4
• Wireless 5 GHz Max data rate: 867 Mbit/s
• Wireless 5 GHz number of chains: 2
• Wireless 5 GHz standards: 802.11a/n/ac
• Antenna gain dBi for 5 GHz: 5.5
• Wireless 5 GHz chip model: IPQ-4019
• Wireless 5 GHz generation: Wi-Fi 5
• AC speed: AC1200
• Ethernet 10/100/1000 Ethernet ports: 5
• Number of 1G Ethernet ports with PoE-out: 1
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| Mikrotik RBD53iG-5HacD2HnD-US hAP ac3 Wireless Dual-band Router | |
|---|---|
| General | |
| Product Code | RBD53iG-5HacD2HnD-US |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU Core Count | 4 |
| CPU Nominal Frequency | 716 MHz |
| Operating System | RouterOS |
| RouterOS License | 4 |
| MTBF | Approximately 100,000 hours at 25°C |
| Physical | |
| Dimensions | 251 x 129 x 39 mm |
| RAM | 256 MB |
| Storage Type | NAND |
| Storage Size | 128 MB |
| Power & Electrical | |
| DC Inputs | 2 (DC jack, PoE-IN) |
| DC Jack Input Voltage | 12-28 V |
| Max Power Consumption | 30 W |
| Max Power Consumption Without Attachments | 12 W |
| Cooling | Passive |
| PoE In | Passive PoE |
| PoE Out Ports (1G Ethernet) | 1 |
| Wireless / RF | |
| 2.4 GHz Standards | 802.11b/g/n |
| 2.4 GHz Max Data Rate | 300 Mbit/s |
| 2.4 GHz Chains | 2 |
| 2.4 GHz Antenna Gain | 3 dBi |
| 2.4 GHz Chip Model | IPQ-4019 |
| 2.4 GHz Generation | Wi-Fi 4 |
| 5 GHz Standards | 802.11a/n/ac |
| 5 GHz Max Data Rate | 867 Mbit/s |
| 5 GHz Chains | 2 |
| 5 GHz Antenna Gain | 5.5 dBi |
| 5 GHz Chip Model | IPQ-4019 |
| 5 GHz Generation | Wi-Fi 5 |
| AC Speed | AC1200 |
| IPsec Hardware Acceleration | Yes |
| Networking & Connectivity | |
| Gigabit Ethernet Ports | 5 |
| Environmental | |
| Tested Ambient Temperature Range | -40°C to 70°C |
| Peripherals | |
| USB Ports | 1 |
| USB Slot Type | USB Type A |
| Max USB Current | 1 A |
| USB Power Reset | Yes |
