MikroTik RBLDFG-5acD LDF 5GHz Dual Chain Wireless Feed System
- EhubAmerica SKU
- RBLDFG-5acD-US
- 5GHz
- Compact/miniature package
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

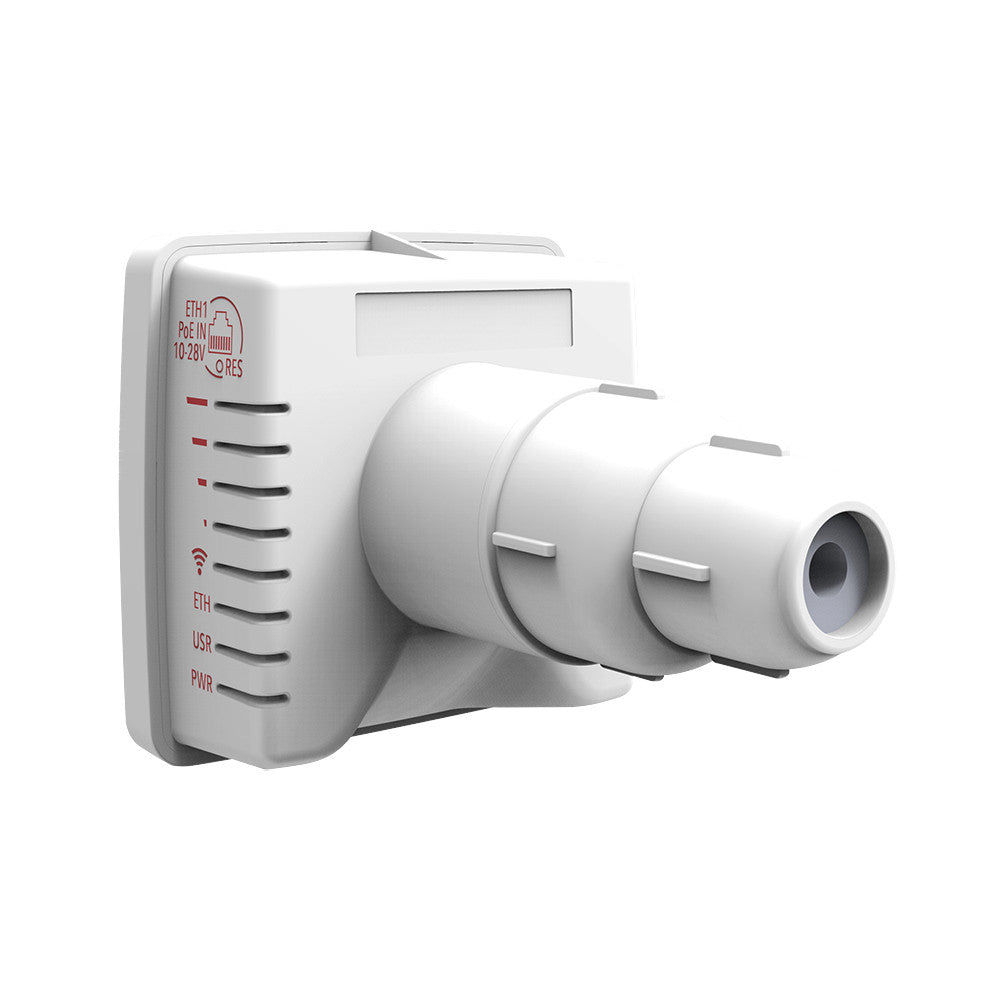

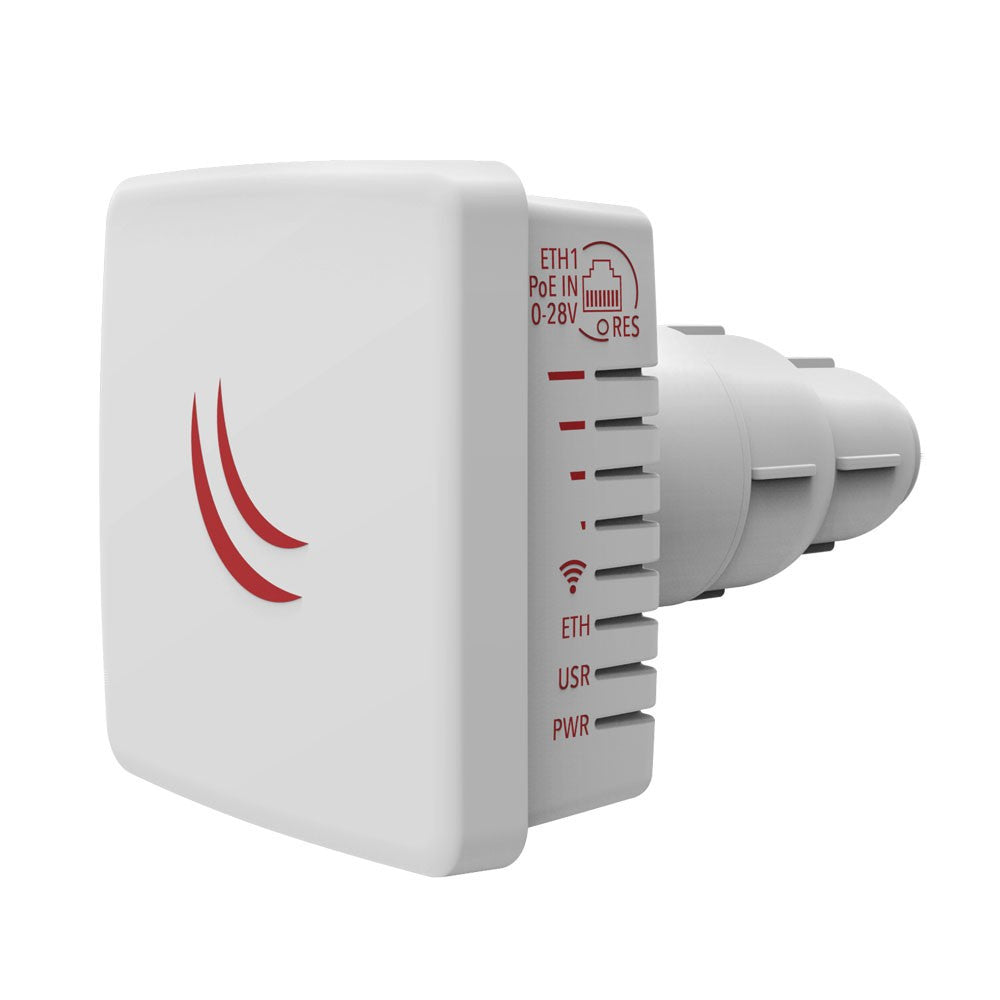

The LDF (Lite Dish Feed) is an outdoor wireless system with a built in antenna , meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal.
PRODUCT TYPE
Networking Accessories
KEY FEATURES
• Specifications Product code: RBLDFG-5acD
• Architecture: ARM 32bit
• CPU: IPQ-4018
• CPU core count: 4
• CPU nominal frequency: 716 MHz
• Dimensions: 84mm x 84mm x 115mm
• RouterOS license: 3
• Operating System: RouterOS
• Size of RAM: 256 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 100'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• IPsec hardware acceleration: Yes
• Powering Number of DC inputs: 1 (PoE-IN)
• Max power consumption: 8 W
• Cooling type: Passive
• PoE in: Passive PoE
TECHNICAL SPECIFICATIONS
• Brand: MikroTik
• Model: RBLDFG-5acD-US
• Product Type: Networking Accessories
• Specifications Product code: RBLDFG-5acD
• Architecture: ARM 32bit
• CPU: IPQ-4018
• CPU core count: 4
• CPU nominal frequency: 716 MHz
• Dimensions: 84mm x 84mm x 115mm
• RouterOS license: 3
• Operating System: RouterOS
• Size of RAM: 256 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 100'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• IPsec hardware acceleration: Yes
• Powering Number of DC inputs: 1 (PoE-IN)
• Max power consumption: 8 W
• Cooling type: Passive
• PoE in: Passive PoE
• PoE in input Voltage: 10-28 V
• Wireless specifications Wireless 5 GHz Max data rate: 867 Mbit/s
• Wireless 5 GHz number of chains: 2
• Wireless 5 GHz standards: 802.11a/n/ac
• Antenna gain dBi for 5 GHz: 9
• Wireless 5 GHz chip model: IPQ-4018
• Wireless 5 GHz generation: Wi-Fi 5
• Ethernet 10/100/1000 Ethernet ports: 1
• Certification & Approvals Certification: CE, FCC, IC, EAC, ROHS
• IP: IP54
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Product Name | Mikrotik RBLDFG-5acD LDF 5 ac Dual Chain 5GHz Wireless System |
| SKU | RBLDFG-5acD-US |
| Brand | MikroTik |
| Type | Outdoor wireless system with built-in antenna |
| Application | Satellite offset dish antenna installation for long-range wireless links |
| Physical | |
| Antenna | Built-in |
| Mount Type | Universal offset mount, 40 mm diameter |
| Form Factor | Compact/miniature package |
| Wireless / RF | |
| Frequency Band | 5GHz |
| Configuration | Dual Chain |
