MikroTik · Routers and Switches
MikroTik RBM33G RouterBOARD 3-Gigabit PoE Router 2x miniPCIe
- EhubAmerica SKU
- RBM33G
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

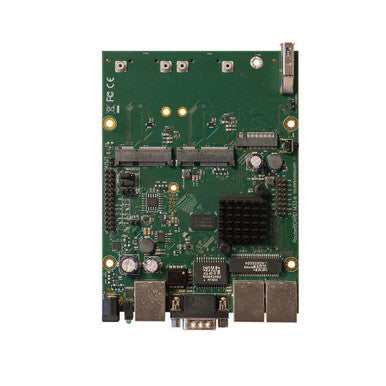

The RBM33G is a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution. It uses the same PCB form factor and same mounting holes as it’s predecessors ( RB433 and RB953 series ).
PRODUCT TYPE
Routers and Switches
KEY FEATURES
• Two miniPCIe 3G/LTE modems for multiple mobile connections (two SIM slots provided)
• One miniPCIe and One USB 3G/LTE modem leaving other miniPCIe slot for 802.11 wireless card (consult product Quick Guide for details)
• Specifications Product code RBM33G
• Architecture MMIPS
• CPU MT7621A
• CPU core count 2
• CPU nominal frequency 880 MHz
• CPU Threads count 4
• License level 4
• Size of RAM 256 MB
• Storage size 16 MB
• Storage type FLASH
• Tested ambient temperature -40°C to 70°C
• Powering PoE in Passive PoE
• PoE in input Voltage 11-32 V
• Number of DC inputs 2 (PoE-IN, DC jack)
• DC jack input Voltage 11-32 V
• Max power consumption 24 W
TECHNICAL SPECIFICATIONS
• Brand: MikroTik
• Model: RBM33G
• Product Type: Routers and Switches
• Two miniPCIe 3G/LTE modems for multiple mobile connections (two SIM slots provided)
• One miniPCIe and One USB 3G/LTE modem leaving other miniPCIe slot for 802.11 wireless card (consult product Quick Guide for details)
• Specifications Product code RBM33G
• Architecture MMIPS
• CPU MT7621A
• CPU core count 2
• CPU nominal frequency 880 MHz
• CPU Threads count 4
• License level 4
• Size of RAM 256 MB
• Storage size 16 MB
• Storage type FLASH
• Tested ambient temperature -40°C to 70°C
• Powering PoE in Passive PoE
• PoE in input Voltage 11-32 V
• Number of DC inputs 2 (PoE-IN, DC jack)
• DC jack input Voltage 11-32 V
• Max power consumption 24 W
• Max power consumption without attachments 19 W
• Ethernet 10/100/1000 Ethernet ports 3
• Peripherals Number of SIM slots 2 Modem (Mini SIM)
• M.2 slots 1
• MiniPCI-e slots 2
• Serial port RS232
• Number of USB ports 1
• USB Power Reset Yes
• USB slot type USB 3.0 type A
• Max USB current (A) 1
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Product Code | RBM33G |
| Brand | MikroTik |
| Architecture | MMIPS |
| CPU | MT7621A |
| CPU Core Count | 2 |
| CPU Threads Count | 4 |
| CPU Nominal Frequency | 880 MHz |
| License Level | 4 |
| Physical | |
| RAM | 256 MB DDR3 |
| Storage | 16 MB FLASH |
| SIM Slots | 2 (Mini SIM) |
| miniPCIe Slots | 2 |
| M.2 Slots | 1 |
| Serial Port | RS232 |
| USB Ports | 1 (USB 3.0 Type A) |
| Power & Electrical | |
| PoE Input | Passive PoE |
| PoE Input Voltage | 11–32 V |
| DC Jack Input Voltage | 11–32 V |
| DC Inputs | 2 (PoE-IN, DC jack) |
| Max Power Consumption | 24 W |
| Max Power Consumption Without Attachments | 19 W |
| Max USB Current | 1 A |
| USB Power Reset | Yes |
| Networking & Connectivity | |
| Gigabit Ethernet Ports | 3 (10/100/1000) |
| Environmental | |
| Tested Ambient Temperature | -40°C to 70°C |
