MikroTik · Wireless Access Points

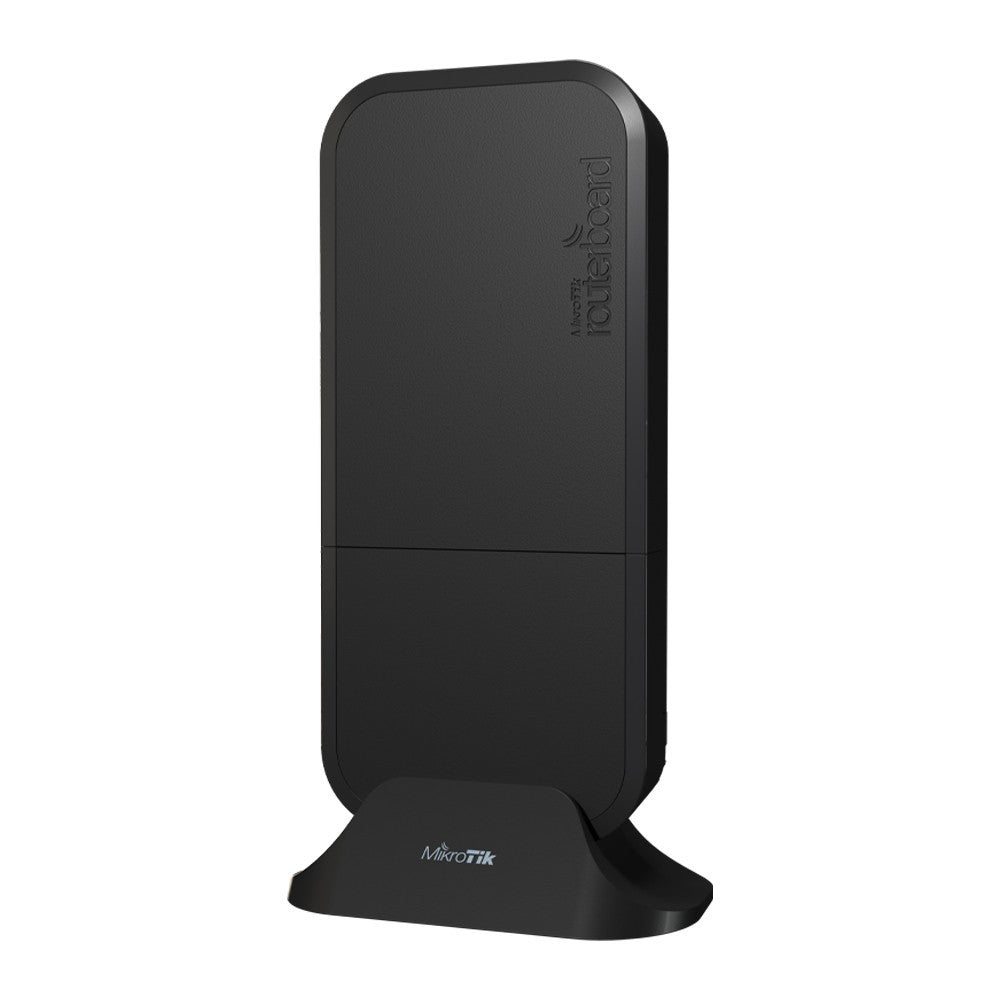

MikroTik RBwAPG-5HacD2HnD-BE wAP ac Dual-Band Weatherproof Wireless Access Point
- EhubAmerica SKU
- RBwAPG-5HacD2HnD-BE
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

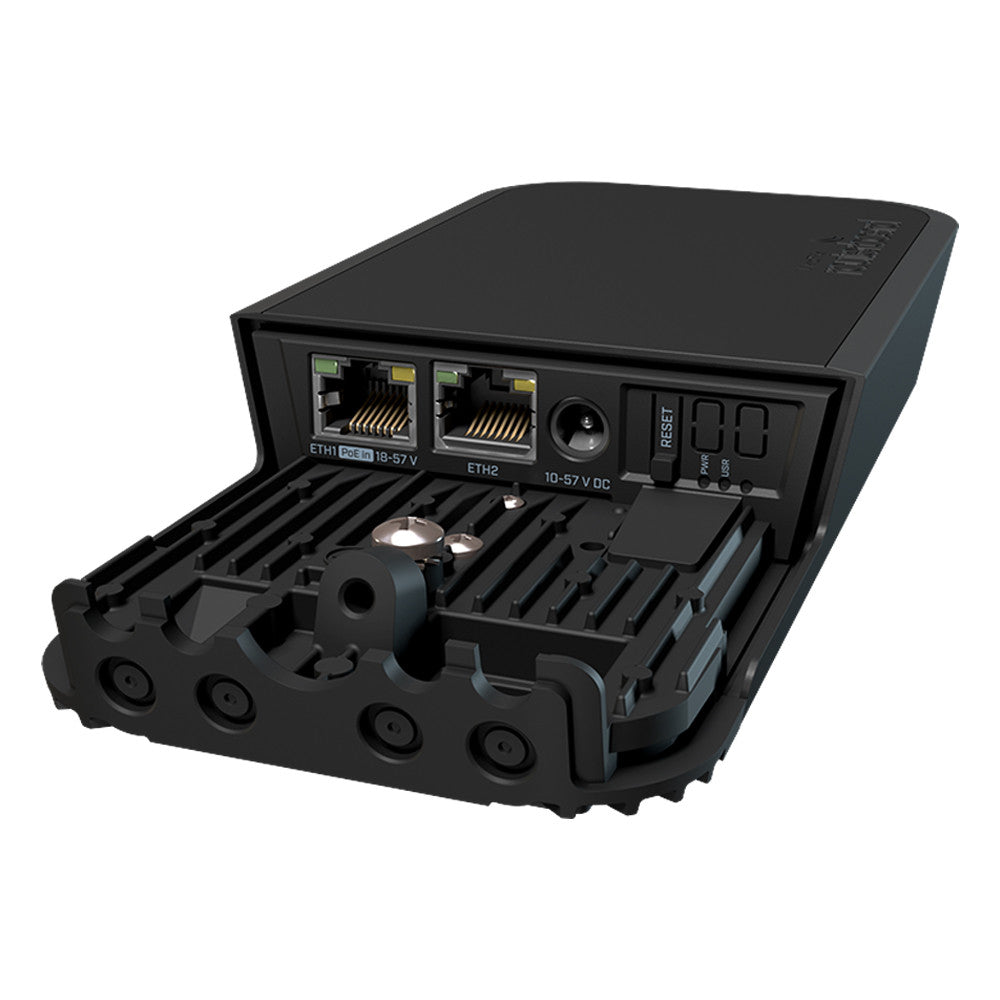

The wAP ac is a small weatherproof wireless access point for your mobile devices, perfect for installation outside your house, in the garden, on your porch, or anywhere else where you need a capable wireless connection. The new revision features 2x Gigabit Ethernet ports, enhanced wireless antenna performance, more RAM, and a powerful quad-core CPU!
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• Specifications Product code: RBwAPG-5HacD2HnD-BE
• Architecture: ARM 32bit
• CPU: IPQ-4018
• CPU core count 4
• CPU nominal frequency: 716 MHz
• Dimensions: 185 x 85 x 30 mm
• RouterOS license: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 100'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• IPsec hardware acceleration: Yes
• Wireless capabilities Wireless 2.4 GHz Max data rate: 300 Mbit/s
• Wireless 2.4 GHz number of chains: 2
• Wireless 2.4 GHz standards: 802.11b/g/n
• Antenna gain dBi for 2.4 GHz: 2.5
TECHNICAL SPECIFICATIONS
• Brand: MikroTik
• Model: RBwAPG-5HacD2HnD-BE
• Product Type: Wireless Access Points
• Specifications Product code: RBwAPG-5HacD2HnD-BE
• Architecture: ARM 32bit
• CPU: IPQ-4018
• CPU core count 4
• CPU nominal frequency: 716 MHz
• Dimensions: 185 x 85 x 30 mm
• RouterOS license: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 100'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• IPsec hardware acceleration: Yes
• Wireless capabilities Wireless 2.4 GHz Max data rate: 300 Mbit/s
• Wireless 2.4 GHz number of chains: 2
• Wireless 2.4 GHz standards: 802.11b/g/n
• Antenna gain dBi for 2.4 GHz: 2.5
• Wireless 2.4 GHz chip model: IPQ-4018
• Wireless 2.4 GHz generation: Wi-Fi 4
• Wireless 5 GHz Max data rate: 867 Mbit/s
• Wireless 5 GHz number of chains: 2
• Wireless 5 GHz standards: 802.11a/n/ac
• Antenna gain dBi for 5 GHz: 2.5
• Wireless 5 GHz chip model: IPQ-4018
• Wireless 5 GHz generation: Wi-Fi 5
• AC speed: AC1200
• Ethernet 10/100/1000 Ethernet ports: 2
• Powering Number of DC inputs: 2 (DC jack, PoE-IN)
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| MikroTik RBwAPG-5HacD2HnD-BE | |
|---|---|
| General | |
| Product Code | RBwAPG-5HacD2HnD-BE |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU Core Count | 4 |
| CPU Nominal Frequency | 716 MHz |
| RAM | 128 MB |
| Storage | 16 MB FLASH |
| RouterOS License | 4 |
| Operating System | RouterOS |
| MTBF | Approximately 100,000 hours at 25°C |
| Physical | |
| Dimensions | 185 x 85 x 30 mm |
| Tested Ambient Temperature | -40°C to 70°C |
| Power & Electrical | |
| DC Inputs | 2 (DC jack, PoE-IN) |
| DC Jack Input Voltage | 10-57 V |
| Max Power Consumption | 10 W |
| Max Power Consumption Without Attachments | 9 W |
| IPsec Hardware Acceleration | Yes |
| Wireless / RF | |
| 2.4 GHz Max Data Rate | 300 Mbit/s |
| 2.4 GHz Chains | 2 |
| 2.4 GHz Standards | 802.11b/g/n |
| 2.4 GHz Antenna Gain | 2.5 dBi |
| 2.4 GHz Chip Model | IPQ-4018 |
| 2.4 GHz Generation | Wi-Fi 4 |
| 5 GHz Max Data Rate | 867 Mbit/s |
| 5 GHz Chains | 2 |
| 5 GHz Standards | 802.11a/n/ac |
| 5 GHz Antenna Gain | 2.5 dBi |
| 5 GHz Chip Model | IPQ-4018 |
| 5 GHz Generation | Wi-Fi 5 |
| AC Speed | AC1200 |
| Networking & Connectivity | |
| Gigabit Ethernet Ports | 2 |
