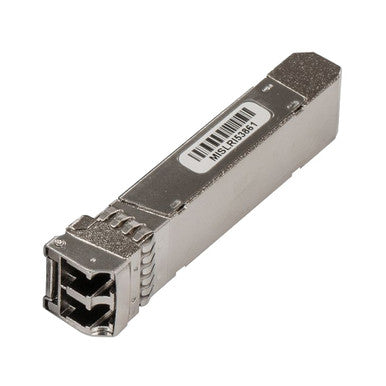

MikroTik S-C51DLC40D SFP CWDM Transceiver, 1.25G, 1510 nm, 40 km Single-Mode, Dual LC

MikroTik · Transceivers

MikroTik S-C51DLC40D SFP CWDM Transceiver, 1.25G, 1510 nm, 40 km Single-Mode, Dual LC

Part number / SKU
S-C51DLC40D
  • 1.25G
  • SFP

Works with: CWDM-MUX8A passive CWDM mux/demux Confirmed by the manufacturer

$50.26

In stock

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The MikroTik S-C51DLC40D is a 1.25 Gbps SFP CWDM optical module for single-mode fiber, transmitting on the 1510 nm CWDM channel with a reach of up to 40 km. It has a dual LC UPC connector and supports DDM (digital diagnostics monitoring).

It is part of the MikroTik CWDM system: with a CWDM-MUX8A at each end, up to eight links on different wavelengths from 1470 to 1610 nm share one fiber, and 1.25G SFP modules can be mixed with 10G SFP+ CWDM modules on the same system. Both ends of a link use the same 1510 nm module, and each module connects to the mux port for its wavelength.

  • Best for: Gigabit links over a CWDM system where several links share one single-mode fiber, up to 40 km.
  • System fit: MikroTik CWDM-MUX8A passive mux/demux, 1510 nm port; SFP cages on switches and routers.
  • Important to know: use a 1510 nm module at both ends of the link; reach is up to 40 km on single-mode fiber.

Why teams choose it

Built for reliable networks

  • Gigabit CWDM channel

    1.25 Gbps on the 1510 nm wavelength.

  • Up to 40 km

    single-mode reach with a dual LC UPC connector.

  • DDM support

    digital diagnostics monitoring of the optical link.

  • Works with CWDM-MUX8A

    share one fiber with up to seven other CWDM links.

Specifications

Technical specifications

General
Brand MikroTik
Model S-C51DLC40D
Device Type SFP CWDM optical transceiver
Form Factor SFP
Optical
Data Rate 1.25G
Wavelength 1510 nm (CWDM)
Fiber Type Single-mode
Reach Up to 40 km, single-mode fiber
Connector Dual LC UPC
DDM/DOM Yes
Tx Output Power -5 to 0 dBm
Rx Sensitivity -24 dBm (average, max)
Max Received Power -8 dBm
Link Pairing Same wavelength module at both ends
Environmental
MTBF About 100,000 hours at 25 °C
