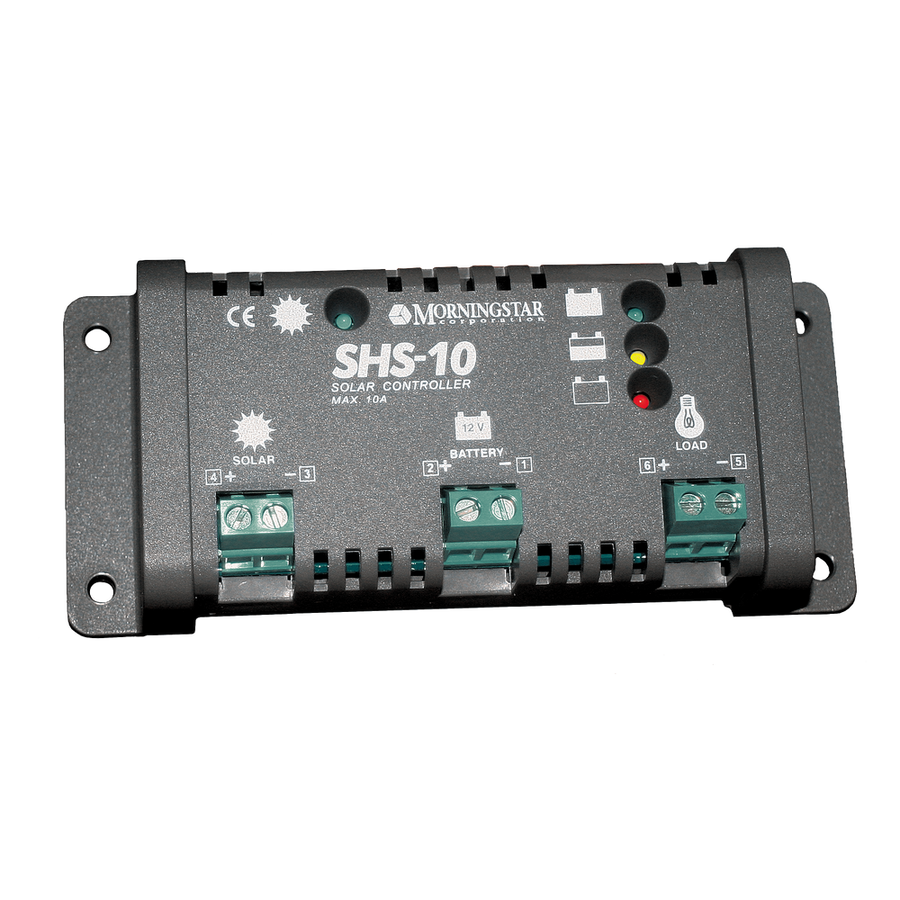

Morningstar SHS-10 10A Solar Charge Controller 1-3 Panel IP22
- EhubAmerica SKU
- SHS-10
$54.99
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ideal for electrification systems in rural areas from one up to three solar panels. Reduces the cost of battery replacements since it disconnects the charge when it detects low voltage; this increases its useful life and storage capacity.
PRODUCT TYPE
Power Supplies & UPS
KEY FEATURES
- Ideal for Systems With 1-3 Solar Panels up to 170 Watts
- Automatic Load Disconnect at 11.5V for Battery Protection
- IP22 Rated Enclosure for Moisture and Dust Resistance
- Ultra-Low Self-Consumption of Only 8 mA for Efficiency
- Complete Protection Against Short Circuit and Reverse Polarity
- Automatic Operation With No Manual Adjustments Required
TECHNICAL SPECIFICATIONS
- Brand: Morningstar
- Model: SHS-10
- Product Type: Batteries
- Ideal for Systems With 1-3 Solar Panels up to 170 Watts
- Automatic Load Disconnect at 11.5V for Battery Protection
- IP22 Rated Enclosure for Moisture and Dust Resistance
- Ultra-Low Self-Consumption of Only 8 mA for Efficiency
- Complete Protection Against Short Circuit and Reverse Polarity
- Automatic Operation With No Manual Adjustments Required
INTENDED USE / APPLICATIONS
- Backup, off-grid, or distributed power systems
- Telecommunications and network equipment
- Professional installations requiring compatible power specifications
Specifications
Technical specifications
| General | |
|---|---|
| Model | SHS-10 |
| Brand | Morningstar |
| SKU | SHS-10 |
| Type | Solar Charge and Discharge Controller |
| Application | Rural electrification systems (1-3 solar panels) |
| Maximum Solar Panel Capacity | 170 W |
| Power & Electrical | |
| Regulation Point | 14.3 VDC |
| Low Voltage Disconnect | 11.5 VDC |
| Low Voltage Reconnect | 12.6 VDC |
| Current Capacity | 10 A |
| Self-Consumption | 8 mA maximum |
| Temperature Compensated Charging | Yes |
| Environmental | |
| Enclosure Rating | IP22 |
| Circuit Board Protection | Conformal coated terminals (corrosion protected) |
| Compatibility | |
