Notifier NFS-320E Addressable Fire Alarm System 240V

Notifier · Fire Alarm

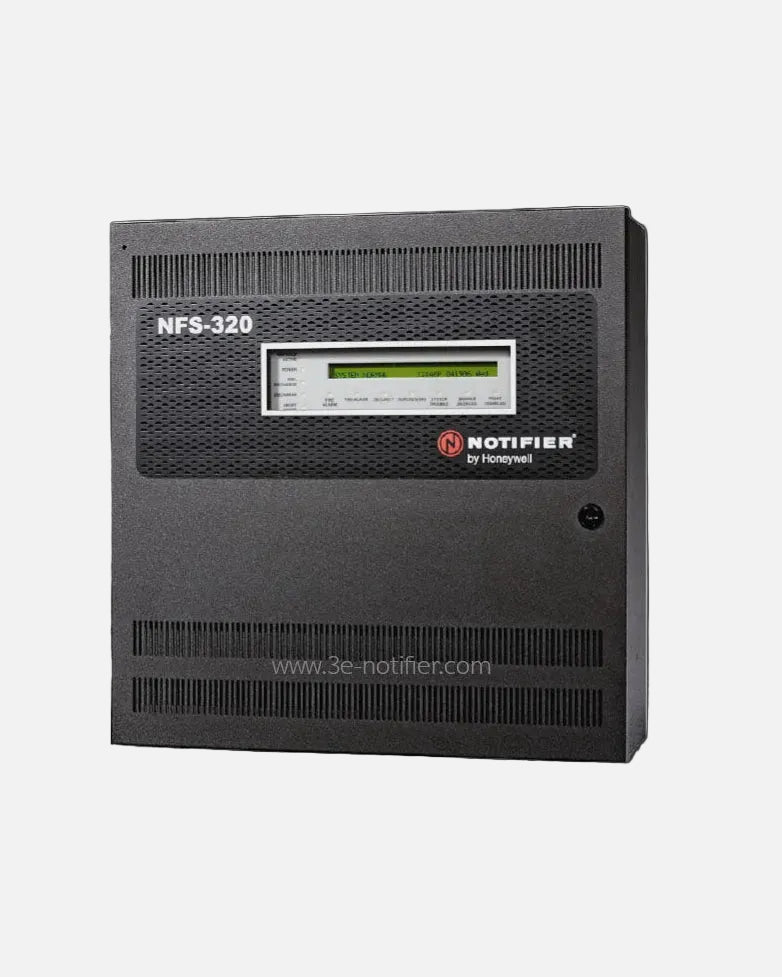

Notifier NFS-320E Intelligent Addressable Fire Alarm Control Panel, 220/240 VAC

Part number / SKU
NFS-320E
  • Fire alarm control panel
  • Addressable
  • Surface or semi-flush
  • UL, ULC, FM, CSFM, MEA, FDNY

Works with: KDM-R2 keypad/display, NCA-2 network control annunciator, NCD network control display, ACM-24AT annunciator, AEM-24AT annunciator expander, ACM-48A annunciator and 31 more models Confirmed by the manufacturer

$2,024.82

Special order· Lead time confirmed by our team after you order.

Request a quote

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier NFS-320E is the 220/240 VAC version of the NFS-320 intelligent addressable fire alarm control panel in the ONYX Series. Its one isolated signaling line circuit (Style 4, 6 or 7) supports up to 159 detectors and 159 modules, with a KDM-R2 keypad and 80-character backlit LCD.

Its integral 6.0 A power supply feeds four Class A/B NACs at 1.5 A each with selectable System Sensor, Wheelock or Gentex strobe sync, plus resettable and non-resettable 24 V outputs, and charges 18 to 200 AH batteries (a separate cabinet is needed over 26 AH). Built-in Alarm, Trouble, Security and Supervisory relays, 99 software zones and an 800-event history file are standard. The backbox measures 18.12 x 18.12 x 5.81 in for surface or semi-flush mounting.

The panel runs stand-alone or on NOTI-FIRE-NET, up to 200 nodes on high-speed NFN or 103 on standard NFN, with NCM-W, NCM-F or HS-NCM network modules, and supports up to 32 remote 80-character annunciators. Notifier lists UL/ULC S635, FM approval, CSFM 7165-0028:0243, MEA 128-07-E and FDNY COA 6212.

  • Best for: addressable fire alarm systems that need one SLC loop of up to 318 devices.
  • System fit: Notifier FlashScan and CLIP intelligent detectors and modules, KDM-R2, NCA-2 and NCD displays, ACM/AEM annunciators and NOTI-FIRE-NET.
  • Important to know: installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Full loop capacity

    one SLC with up to 159 detectors and 159 modules.

  • Built-in power

    6.0 A in alarm with four 1.5 A Class A/B NACs.

  • Networkable

    up to 200 nodes on high-speed NOTI-FIRE-NET.

  • Event records

    800-event history plus a separate 200-event alarm-only file.

Specifications

Technical specifications

General
Brand Notifier
Model NFS-320E
Device Type Fire alarm control panel
Device Type Detail Intelligent addressable
Version 220/240 VAC version
Series ONYX Series
Addressing Addressable
SLC 1 isolated intelligent SLC; Style 4, 6 or 7
Device Capacity 159 detectors and 159 modules (318 devices)
NACs 4 Class A/B, 1.5 A each
Strobe Synchronization System Sensor, Wheelock or Gentex (selectable)
Relays Alarm, Trouble, Security and Supervisory
Zones 99 software zones; 14 special programming zones
Annunciators Up to 32 remote 80-character annunciators; ACS annunciators at 32 addresses x 64 points
Display KDM-R2 keypad, 80-character (2 x 40) backlit LCD, QWERTY keys
History 800 events plus 200-event alarm-only file
Network High-speed NFN up to 200 nodes; standard NFN up to 103 nodes (54 with DVC-EM paging)
Electrical
AC Input 220/240 VAC, 50/60 Hz, 2.5 A
Power Supply 6.0 A total 24 V output in alarm
Board Current Draw 0.250 A, plus 0.035 A per NAC in use
KDM-R2 Current Draw 0.100 A with backlight on
Resettable 24 V Output 1.25 A
Non-Resettable 24 V Outputs 1.25 A and 0.50 A
Non-Resettable 5 V Output 0.15 A
Battery Charger 18 to 200 AH, two 12 V batteries; separate cabinet over 26 AH
Float Voltage 27.6 V
Physical
Backbox 18.12 x 18.12 x 5.81 in (46.025 x 46.025 x 14.76 cm), W x H x D
Door 18.187 x 18.40 x 0.75 in (46.195 x 46.736 x 1.905 cm)
Mount Type Surface or semi-flush
Mount Type Detail TR-320 trim ring
Weight 36.15 lb (16.4 kg) without batteries
Environmental
Operating Temperature 32 to 120 F (0 to 49 C)
Humidity 93% +/- 2% RH noncondensing at 32 C +/- 2 C (90 F +/- 3 F)
Recommended Room Temperature 60 to 80 F (15 to 27 C)
Listings and Approvals
Agency Approvals UL, ULC, FM, CSFM, MEA, FDNY
Approval Details UL/ULC Listed S635; FM Approved; CSFM 7165-0028:0243; MEA 128-07-E; FDNY COA 6212
Marine U.S. Coast Guard 161.002/50/0 and 161.002/55/0; ABS Type Approval (with CAB-BM marine enclosure)
Standards UL 864, UL 1076, UL 2572, ULC-S527-11; seismic certified with the proper seismic mounting kit
