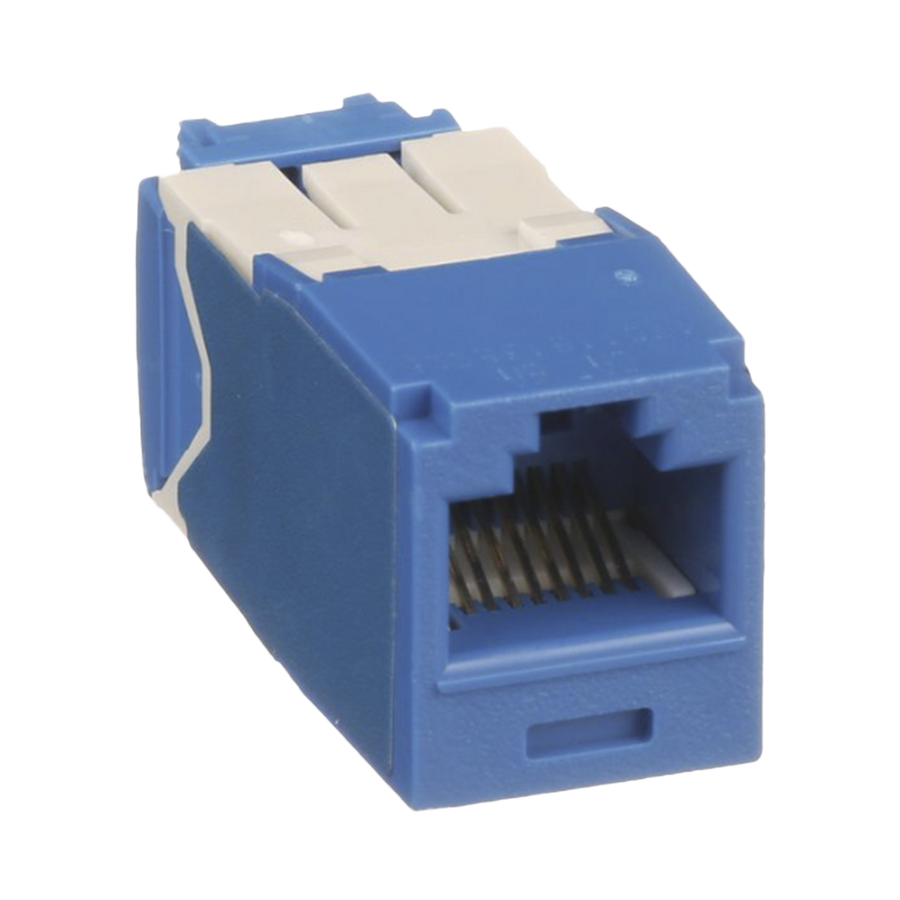

Panduit CJ6X88TGBU Category 6A RJ45 Jack Module Tool-Less PoE++
- EhubAmerica SKU
- CJ6X88TGBU
$25.99
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Category 6A/Class EA, 8-position, UTP jack module shall terminate 4-pair, 22 – 26 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. The termination cap shall be color-coded blue to designate Category 6A performance and shall include a universal label coded for T568A and T568B wiring schemes. The Mini-Com® TX6A™ 10Gig UTP Jack Module must be installed as part of the TX6A™ 10Gig UTP Copper Cabling System to achieve IEEE 10GBASE-T certified performance.
PRODUCT TYPE
Connectors and Adapters
KEY FEATURES
- Tool-Less Termination for Fast and Easy Installation
- 50 Micron Gold Plated Contacts for Superior Performance
- Universal T568A/B Wiring Scheme Compatibility
- Supports 10GBASE-T Performance up to 150 Meters
- PoE++ Support up to 100W for High-Power Applications
- Compatible With 22-26 AWG Solid or Stranded Cable
TECHNICAL SPECIFICATIONS
- Brand: Panduit
- Model: CJ6X88TGBU
- Product Type: Networking Accessories
- Type: Copper Jack Module
- Color: Blue
- Performance Level: Category 6A
- Termination Style: TG
- Module Type: Mini-Com®
- Jack Type: RJ45
- Meets ANSI/TIA-1096-A with contacts plated with 50 micro inches of gold for superior performance
- Complies with IEC 60603-7 and 60512-9-001
- Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4. Supports power over HDBaseT up to 100 Watts
- Operating Temperature: -10ºC to 65ºC
- Conductor Range: compatible with solid or stranded cable of 22 - 26 AWG
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Type | Copper Jack Module |
| Brand | Panduit |
| Model/SKU | CJ6X88TGBU |
| Performance Level | Category 6A/Class EA |
| Jack Type | RJ45, 8-position, UTP |
| Module Type | Mini-Com® TX6A™ 10Gig UTP |
| Physical | |
| Color | Blue |
| Termination Style | TG (Tool-Less) |
| Contact Plating | 50 microinches gold |
| Wiring Compatibility | Universal T568A/T568B |
| Networking & Connectivity | |
| Cable Type | 4-pair, 100 ohm unshielded twisted pair (UTP) |
| Conductor Gauge | 22–26 AWG (solid or stranded) |
| Performance Standard | 10GBASE-T certified performance up to 150 meters |
| IEEE Standards | 802.3af, 802.3at, 802.3bt Type 3 and Type 4 |
| Mechanical Rating | 2500 cycles |
| Power Over Ethernet | PoE++ up to 100W; HDBaseT up to 100W |
| Environmental | |
| Operating Temperature Range | -10°C to 65°C |
| Compatibility | |
| Compliance Standards | ANSI/TIA-1096-A, IEC 60603-7, IEC 60512-9-001 |
| System Requirement | Must be installed as part of TX6A™ 10Gig UTP Copper Cabling System to achieve IEEE 10GBASE-T certified performance |
