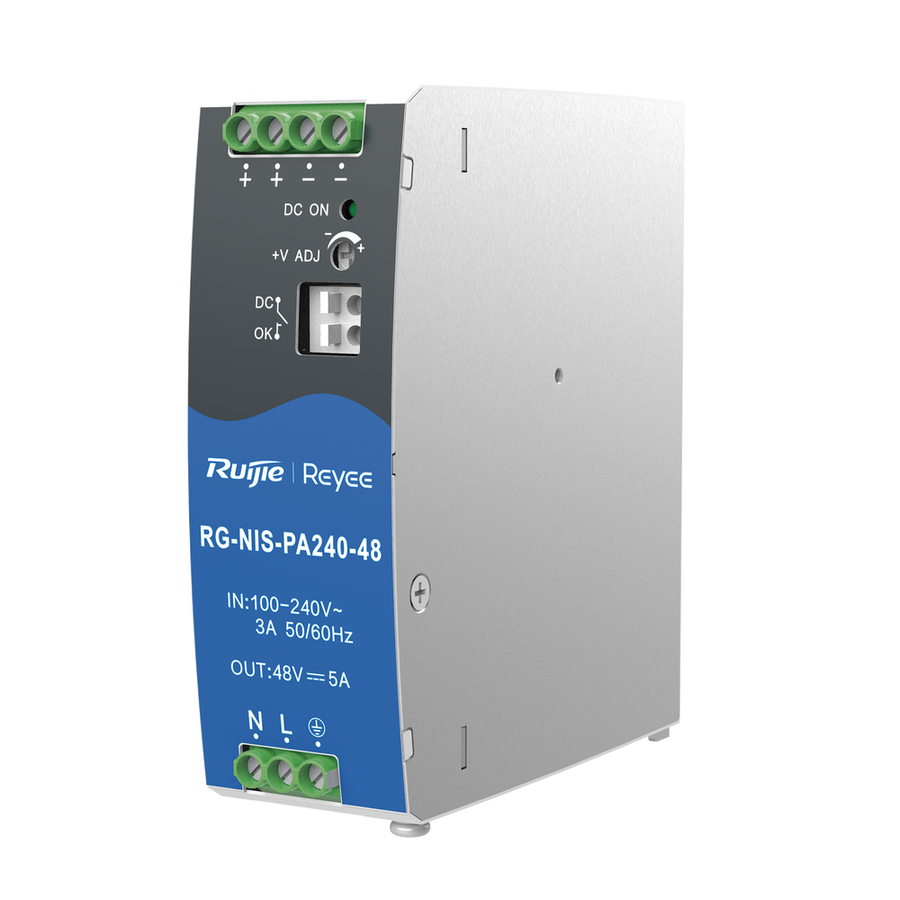

Reyee RG-NIS-PA240-48(US) Industrial Power Supply AC/DC 240W Din-rail for Industrial Switch

Reyee · Power Supplies & UPS

Reyee RG-NIS-PA240-48(US) 240 W 48 VDC DIN Rail Power Supply for Industrial Switches

Part number / SKU
RG-NIS-PA240-48(US)
  • AC or DC input
  • DIN rail
$88.36

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Reyee RG-NIS-PA240-48(US) is a 240 W, 48 VDC DIN rail power supply from Ruijie for industrial network equipment, mounted in control panels and cabinets. It accepts 100 to 240 VAC (85 to 264 VAC maximum, 47 to 63 Hz) or 120 to 370 VDC input, with built-in active PFC.

Rated output is 48 V at 5 A, adjustable from 48 to 53 V. The supply handles a 150% peak load for 3 seconds and has short circuit, overcurrent, overvoltage and overtemperature protection with self-recovery, plus a DC OK relay contact. It operates from -40 to 70 C with derating at the temperature extremes, weighs 0.65 kg and is built to IEC/UL/BS EN 62368 safety.

  • Best for: powering 48 VDC industrial network equipment from a DIN rail in control cabinets.
  • System fit: Ruijie RG-NIS-PA series DIN rail power modules for Reyee industrial network equipment.
  • Important to know: output derates below 100 VAC input and at high or low temperatures; check the load against the switch PoE budget.

Why teams choose it

Built for reliable networks

  • 240 W at 48 VDC

    5 A rated output, adjustable from 48 to 53 V.

  • Wide input

    100 to 240 VAC rated, or 120 to 370 VDC.

  • Protected output

    short circuit, overcurrent, overvoltage and overtemperature protection with self-recovery.

  • Industrial temperature

    -40 to 70 C operation on a DIN rail.

Specifications

Technical specifications

General
Brand Reyee
Model RG-NIS-PA240-48(US)
Device Type DIN rail power supply
Form Factor DIN rail
Power
Power Method AC or DC input
AC Input Range 100 to 240 VAC rated, 50/60 Hz
AC Input Max Range 85 to 264 VAC, 47 to 63 Hz
DC Input Range 120 to 370 VDC
Output Voltage 48 VDC
Rated Output Current 5 A
Output Adjustment 48 to 53 V
Power Factor Correction Active PFC
DC OK Relay 30 V, 1 A resistive
Max Output Power 240 W
Peak Load 150% for 3 s
Input Derating 0.67%/V from 85 to 100 VAC
Short Circuit Protection Hiccup mode, self-recovery
Overcurrent Protection 110 to 200% Io, self-recovery
Overvoltage Protection 60 V max, hiccup mode
Overtemperature Protection 80 C at 230 VAC rated load
Leakage Current 0.5 mA max
Physical
Weight 0.65 kg (1.43 lb)
Mounting DIN rail only
Power Cord 10 A
Environmental
Operating Temperature -40 to 70 C, with derating
Output Derating, Low 3.34%/C from -40 to -25 C
Output Derating, High 2.0%/C 45 to 70 C at 115 VAC; 2.5%/C 60 to 70 C at 230 VAC
Storage Temperature -40 to 85 C
Operating Humidity Up to 90% RH, non-condensing
Listings and Approvals
Safety IEC/UL/BS EN 62368
