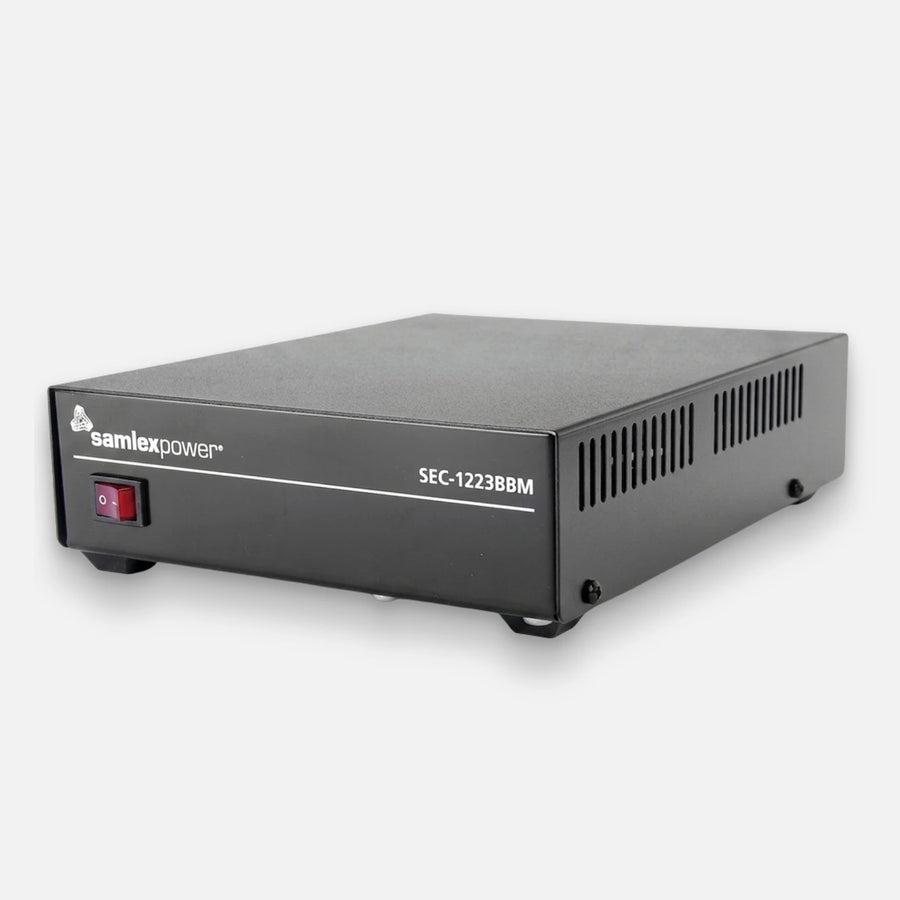

Samlex SEC-1223BBM 13.8V 40-100Ah Lead Acid Battery Charger

PRODUCT OVERVIEW

12V nominal DC uninterruptible power supply designed for continuous operation with external lead acid battery backup support. Features switch mode technology, multiple protection systems, and temperature-controlled cooling.

PRODUCT TYPE

Power Adapters & Chargers

KEY FEATURES

• Advanced switch mode technology
• 12V nominal DC uninterruptible power source (DC UPS)
• Supports external 12V lead acid battery backup
• High-efficiency compact design
• Portable installation profile
• Protection against short circuit, overload, over-voltage, and over-temperature conditions
• Temperature-controlled cooling fan operation
• UL listed for Information Technology Equipment Power Supply applications
• FCC Part 15(B) Class B compliant for EMI limits
• Built-in battery backup circuit
• Designed for continuous DC power delivery applications

TECHNICAL SPECIFICATIONS

• Input Voltage: 120 VAC Nominal (+6% / -10%), 60 Hz
• Output Voltage (Load Terminals): 13.8 VDC
• Output Voltage (Battery Terminals): 13.8 VDC
• Supported External Battery Voltage: 12V
• Supported External Battery Capacity: 40Ah to 100Ah
• Battery Type: Lead Acid
• Cooling System: Forced-air temperature-controlled fan
• Fan Activation Temperature: ≥ 158°F (70°C) internal hot spot
• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
• Dimensions (W × D × H): 7.28 × 9.47 × 2.40 in (185 × 240.5 × 61 mm)
• Weight: 3.4 lb (1.6 kg)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

• Backup DC power systems
• Communications and networking equipment backup power
• Security and surveillance power continuity applications
• Information technology equipment power support
