Seco-Larm E-942FC-1K3SQ MTP2 Electromagnetic Gate Lock

Seco-Larm · Intrusion & Alarm

Seco-Larm E-942FC-1K3SQ 1,200-lb Face Mount Electromagnetic Gate Lock with Weldable Brackets, IP67

Part number / SKU
E-942FC-1K3SQ
  • IP67 waterproof
$280.99

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

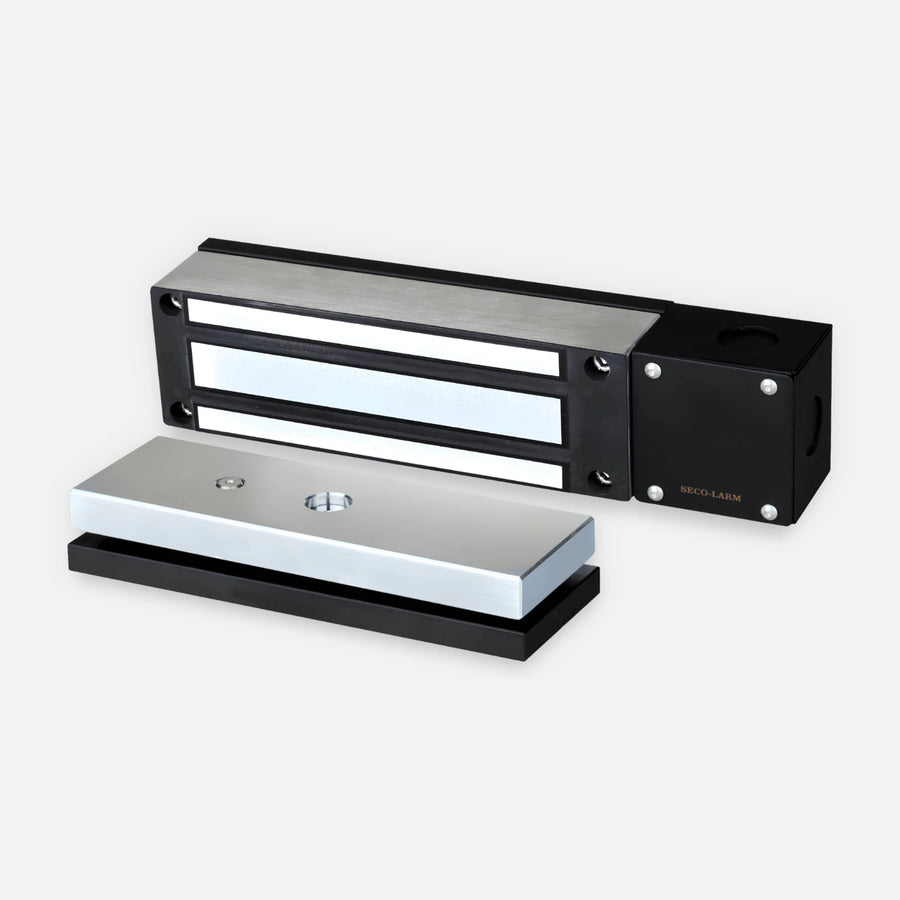

The Seco-Larm E-942FC-1K3SQ is a 1,200-lb (544 kg) face mount electromagnetic lock for sliding or swinging gates. Its zinc-plated brackets can be welded or bolted directly to the gate, and the lock is fail-safe, releasing when power is removed, with no residual magnetism and MOV surge protection.

The stainless steel housing has a black finish, is factory sealed and maintenance free, and is rated IP67 waterproof and vandal resistant for indoor and outdoor use. It runs on 12 or 24 VDC, selectable, drawing 500 mA at 12 VDC or 250 mA at 24 VDC, and operates from 14 to 131 F (-10 to 55 C). A junction box with four knockouts and a dual-threaded conduit fitting handle the wiring, and the lock can mount vertically or horizontally.

Complete mounting hardware for typical installations is included. Seco-Larm lists the magnetic lock with cUL, UL and CE marks and RoHS compliance.

  • Best for: outdoor sliding and swinging electric gates that need a 1,200-lb fail-safe lock.
  • System fit: gate access control systems that supply and switch 12 or 24 VDC lock power.
  • Important to know: the lock is fail-safe and releases when power is removed; the UL and cUL marks apply to the magnetic lock only.

Why teams choose it

Built for secure sites

  • Gate ready

    weld or bolt the zinc-plated brackets directly to the gate.

  • Outdoor rated

    IP67 waterproof, vandal resistant, factory sealed stainless steel housing.

  • High holding force

    1,200 lb (544 kg) on 12 or 24 VDC.

  • Clean wiring

    junction box with four knockouts and a dual-threaded conduit fitting.

Specifications

Technical specifications

General
Brand Seco-Larm
Model E-942FC-1K3SQ
Device Type Electromagnetic gate lock, face mount
Holding Force 1,200 lb (544 kg)
Operation Fail-safe (releases when power is removed)
Residual Magnetism None
Surge Protection MOV
Mount Type Face mount, weld or bolt brackets; vertical or horizontal
Application Sliding or swinging gates
Wiring Entry Junction box with 4 knockouts, dual-threaded conduit fitting
Included Items Complete mounting hardware for typical installations, junction box
Electrical
Operating Voltage 12 or 24 VDC, selectable
Current Draw at 12 VDC 500 mA
Current Draw at 24 VDC 250 mA
Physical
Housing Stainless steel, black finish
Brackets Zinc-plated for corrosion resistance
Maglock and Armature Weight About 11 lb (5 kg)
Bracket Weight About 4.6 lb (2.1 kg)
Environmental
IP Rating IP67 waterproof
Operating Temperature 14 to 131 F (-10 to 55 C)
Listings and Approvals
Agency Approvals cUL, UL, CE (magnetic lock only)
RoHS Compliant (magnetic lock only)
