Seco-Larm SD-927PKC-NSQ Infrared No-Touch Request-to-Exit Sensor

Seco-Larm · Access Control

Seco-Larm SD-927PKC-NSQ Wave-to-Open No-Touch Request-to-Exit Sensor, Spanish Plate

Part number / SKU
SD-927PKC-NSQ
  • Low-voltage, power-limited Class 2
$54.61

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

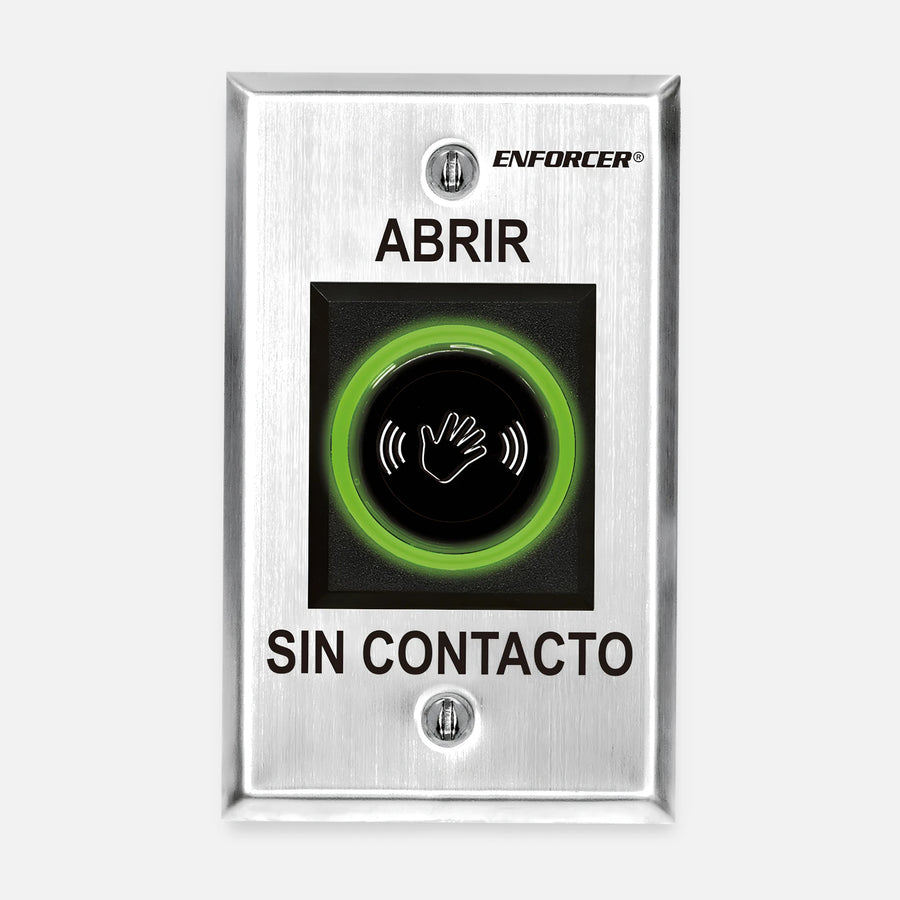

The Seco-Larm SD-927PKC-NSQ is an infrared wave-to-open sensor on a stainless steel single-gang plate with a Spanish faceplate. A wave of the hand in front of the sensor triggers egress or another device, with no touch required, and the sensing area is LED illuminated.

It runs on 12 to 24 VAC/VDC, draws 120 mA at 12 VDC, and switches a Form C dry contact relay rated 3 A at 24 VDC. Sensing range adjusts from 2-3/8 to 8 in (6 to 20 cm) with a 10 ms response, and the relay can be set for 0.5 to 30 seconds, toggle, or for as long as the hand stays near the sensor. The LEDs show red in standby and green when triggered, reversible by jumper, and wiring lands on a quick-connect screwless terminal block.

The sensor is ETL listed and conforms to UL Std. 294, rated Level I for destructive attack, line security and standby power and Level IV for endurance. It operates from -4 to 131 F (-20 to 55 C) and must be powered by a low-voltage, power-limited Class 2 supply. It measures 4-1/2 x 2-3/4 x 1-5/16 in and weighs 3 oz; two mounting screws and a manual are included.

  • Best for: touch-free door release in hospitals, clinics, labs, cleanrooms, schools, factories and offices.
  • System fit: access control systems and other devices that accept a dry contact trigger, on a single-gang plate.
  • Important to know: this is the Spanish faceplate model without an override button; the NEQ is English and the NSVQ adds a manual override button.

Why teams choose it

Built for secure sites

  • No-touch operation

    infrared sensing from 2-3/8 to 8 in triggers the exit request.

  • Flexible timing

    relay output adjustable from 0.5 to 30 seconds, toggle, or while the hand is present.

  • Clear status

    red standby and green triggered LEDs, reversible by jumper.

  • ETL listed

    conforms to UL Std. 294 with a Level IV endurance rating.

Specifications

Technical specifications

General
Brand Seco-Larm
Model SD-927PKC-NSQ
Device Type Wave-to-open no-touch request-to-exit sensor
Detection Type Infrared
Faceplate Language Spanish
Override Button No
Sensing Range 2-3/8 to 8 in (6 to 20 cm), adjustable
Response Time 10 ms
Output Timing 0.5 to 30 sec, toggle, or while triggered
LED Indicators Red standby, green triggered; reversible by jumper
Terminals Quick-connect screwless terminal block
Destructive Attack Level I
Line Security Level I
Endurance Level IV
Standby Power Level I
Included Items Sensor, 2 mounting screws, manual
Electrical
Operating Voltage 12 to 24 VAC/VDC
Current Draw 120 mA at 12 VDC
Relay Output Form C dry contact, 3 A at 24 VDC
Power Supply Low-voltage, power-limited Class 2
Maximum Field Wiring 98.5 ft (30 m)
Physical
Faceplate Stainless steel, single-gang
Mount Type Single-gang
Dimensions 4-1/2 x 2-3/4 x 1-5/16 in (115 x 70 x 33.5 mm)
Weight 3 oz (85 g)
Environmental
Operating Temperature -4 to 131 F (-20 to 55 C)
Listings and Approvals
Agency Approvals ETL
Standards Conforms to UL Std. 294
