Seco-Larm SD-969-T15Q/S Armored Door Cord with Terminal

Seco-Larm · Access Control

Seco-Larm SD-969-T15Q/S Armored Door Cord with Terminal Blocks, Removable Covers, Silver, 15 in

Part number / SKU
SD-969-T15Q/S
$40.99

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

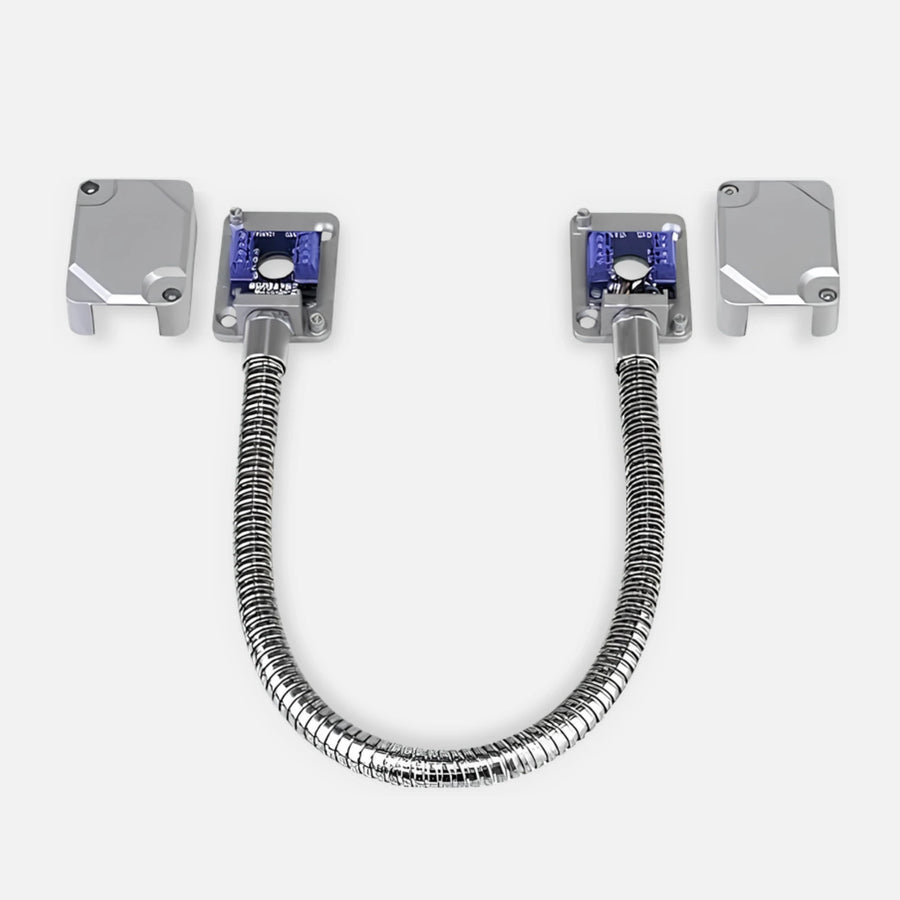

The Seco-Larm SD-969-T15Q/S is a 15 in (39 cm) armored electric door cord in silver. It carries the wiring from the frame to an electric lock or access device mounted in the door, with a stainless steel armored cord and removable die-cast aluminum end caps.

Each end has a terminal block with pre-wired cables for 8 connections, wired one-to-one so each terminal matches the same number on the other block. The removable covers let the cord stay in place while the wiring is accessed. Maximum current is 3 A at 30 VAC/VDC, the cord has a 5/16 in (8 mm) inside and 7/16 in (11 mm) outside diameter, and it surface mounts with the included security screws.

  • Best for: protecting lock and access control wiring that crosses from the frame to the door.
  • System fit: electric locks and access systems mounted in doors; up to 8 conductors at 3 A, 30 VAC/VDC.
  • Important to know: this is the silver /S version; the same cord in bronze is the SD-969-T15Q/B.

Why teams choose it

Built for secure sites

  • Armored protection

    stainless steel cord with die-cast aluminum end caps.

  • Easy service

    terminal blocks under removable covers, so the cord stays mounted during access.

  • Clear wiring

    8 pre-wired connections matched one-to-one end to end.

  • Tamper resistance

    security screws are included for mounting.

Specifications

Technical specifications

General
Brand Seco-Larm
Model SD-969-T15Q/S
Device Type Armored electric door cord
Mount Type Surface mount
Connections 8, terminal blocks with pre-wired cables, one-to-one
Included Items Security screws
Electrical
Maximum Current 3 A at 30 VAC/VDC
Physical
Length 15 in (39 cm)
Inside Cord Diameter 5/16 in (8 mm)
Outside Cord Diameter 7/16 in (11 mm)
Cord Material Stainless steel
End Caps Removable die-cast aluminum
Color Silver
