Seco-Larm SH-512BQ Single-Tone Flush-Mount Chime

Seco-Larm · Intrusion & Alarm

Seco-Larm SH-512BQ Single-Tone Flush-Mount Chime, 10 to 30 VDC, White

Part number / SKU
SH-512BQ
$16.99

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

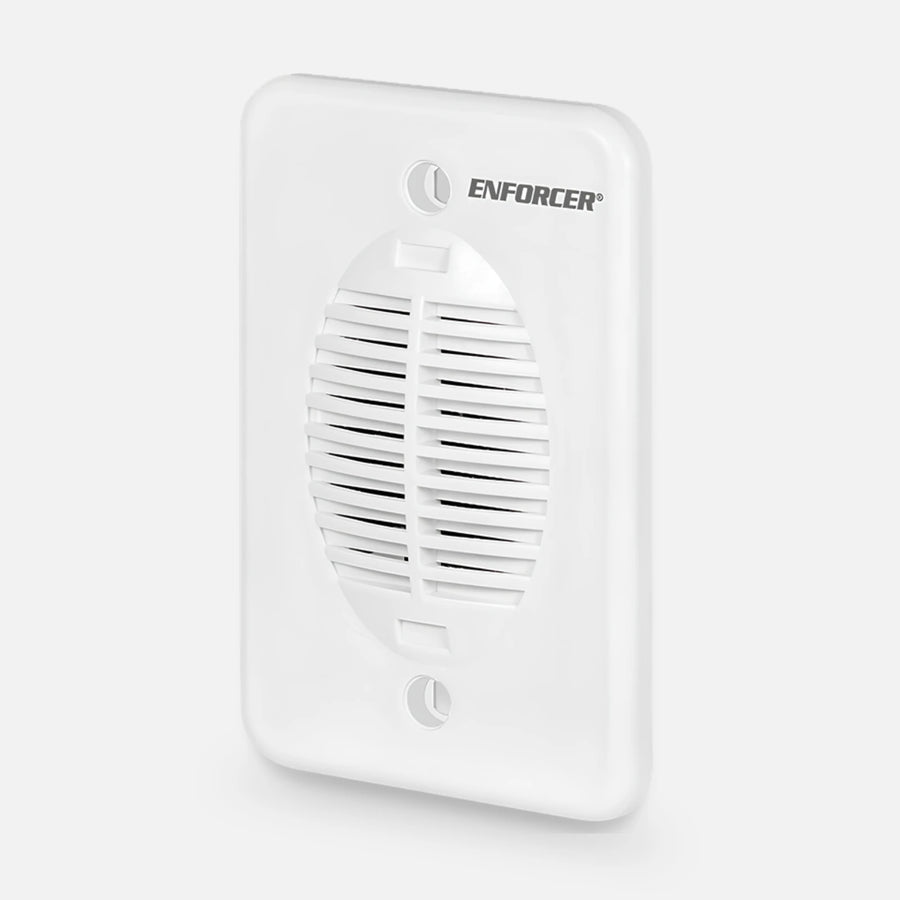

The Seco-Larm SH-512BQ is a single-tone chime in a low-profile, flush-mount design that fits a standard single-gang back box. Seco-Larm lists a 105 dB chime volume for it.

It runs on 10 to 30 VDC and draws only 10 mA at 12 VDC, wired positive to positive and negative to negative from the power source. The durable white plastic housing measures 4-5/8 x 2-15/16 x 1-9/16 in, and the chime comes with two screws, two plastic wall anchors, two screw covers and a manual.

  • Best for: a flush wall-mounted single-tone chime powered from a 10 to 30 VDC circuit.
  • System fit: 10 to 30 VDC power sources; mounts in a standard single-gang back box.
  • Important to know: this is the single-tone model with no trigger inputs; the multi-tone SH-532BQ has three trigger inputs.

Why teams choose it

Built for secure sites

  • Wide voltage

    operates from 10 to 30 VDC.

  • Low draw

    10 mA at 12 VDC.

  • Flush mounting

    low-profile design fits a standard single-gang back box.

  • Complete kit

    screws, wall anchors and screw covers are included.

Specifications

Technical specifications

General
Brand Seco-Larm
Model SH-512BQ
Device Type Single-tone chime
Tone Single-tone
Sound Output 105 dB
Included Items Chime, 2 screws, 2 plastic wall anchors, 2 screw covers, manual
Electrical
Operating Voltage 10 to 30 VDC
Current Draw 10 mA at 12 VDC
Wiring Power positive to chime positive, power negative to chime negative
Physical
Mount Type Flush mount, standard single-gang back box
Housing White plastic
Dimensions 4-5/8 x 2-15/16 x 1-9/16 in (117 x 75 x 39 mm)
