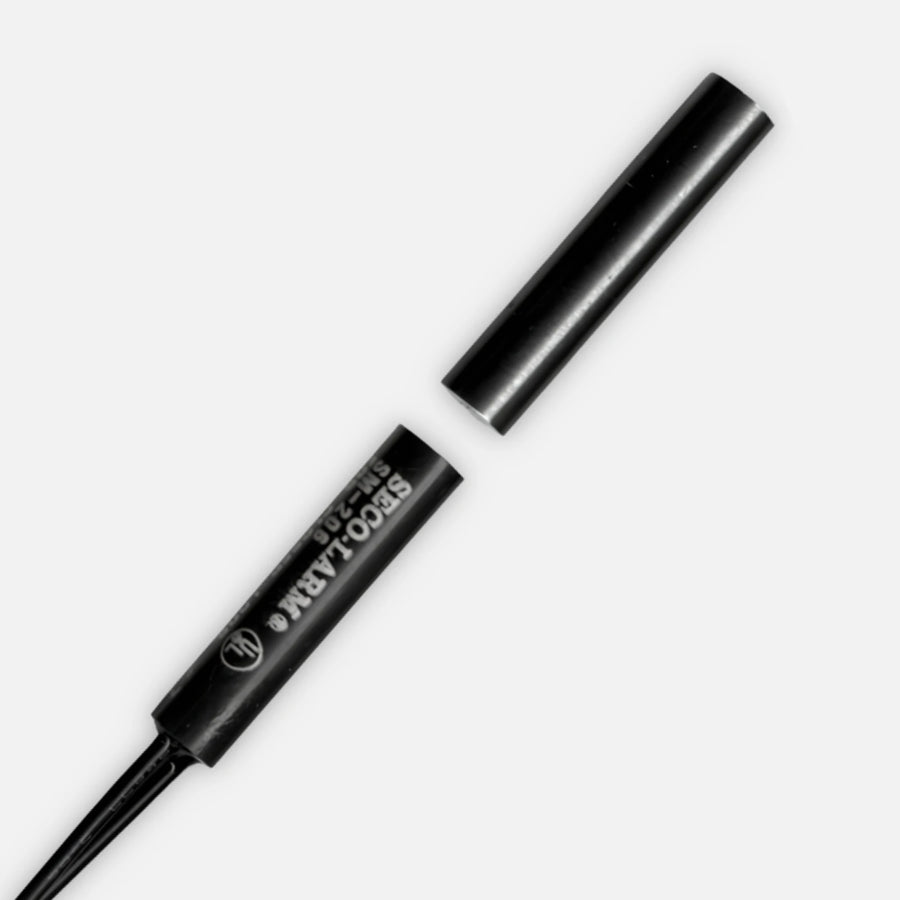

Seco-Larm SM-206Q/BR Recessed Magnetic Contact ¼-inch C-Loop Mount

Seco-Larm · Intrusion & Alarm

Seco-Larm SM-206Q/BR 1/4 in Recessed Magnetic Contact, 1 in Gap, Closed Loop, Brown

Part number / SKU
SM-206Q/BR
$17.99

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Seco-Larm SM-206Q/BR is a 1/4 in concealed-mount magnetic contact for closed loop alarm circuits. Seco-Larm designs it for protecting sliding doors and windows where space is limited, with a 1 in (25 mm) operating gap.

The switch and magnet press-fit into a 1/4 in (6 mm) hole, and a glue and epoxy compound protects the reed switch. The contact comes pre-wired with 15 in (38 cm) 22 AWG leads and is rated 1.0 A at 10 VDC max and 10 W max, with 50 million switch cycles and an operating range of -15 to 160 F (-25 to 70 C).

  • Best for: sliding doors and windows where space is limited.
  • System fit: closed loop (N.C. loop) zone inputs on alarm control panels.
  • Important to know: the switch and magnet need a 1/4 in (6 mm) hole drilled in the frame and in the door or window.

Why teams choose it

Built for secure sites

  • Hidden install

    1/4 in press-fit body sits recessed in the frame.

  • Protected reed

    a glue and epoxy compound seals the reed switch.

  • Pre-wired

    15 in 22 AWG leads ready for the alarm loop.

  • Long contact life

    rhodium over gold underplated contacts rated for 50 million cycles.

Specifications

Technical specifications

General
Brand Seco-Larm
Model SM-206Q/BR
Device Type 1/4 in concealed (recessed) mount magnetic contact
Loop Type Closed loop
Switch Type Reed switch, SPST, N.O.
Operating Gap 1 in (25 mm)
Connection Pre-wired 15 in (38 cm) leads, 22 AWG
Electrical
Contact Rating 1.0 A at 10 VDC max; 10 W max
Contacts Deactivated rhodium on gold underplating
Switch Cycles 50 million (0.1 mA at 5 VDC)
Physical
Mount Type 1/4 in (6 mm) press-fit recessed mount
Color Brown
Case High-impact ABS plastic with epoxy compound
Magnet Dimensions 1-1/4 in x 1/4 in dia. (32 x 6 mm)
Magnet Type Alnico 5
Environmental
Operating Temperature -15 to 160 F (-25 to 70 C)
